Wiper Blade Position Adjustment
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

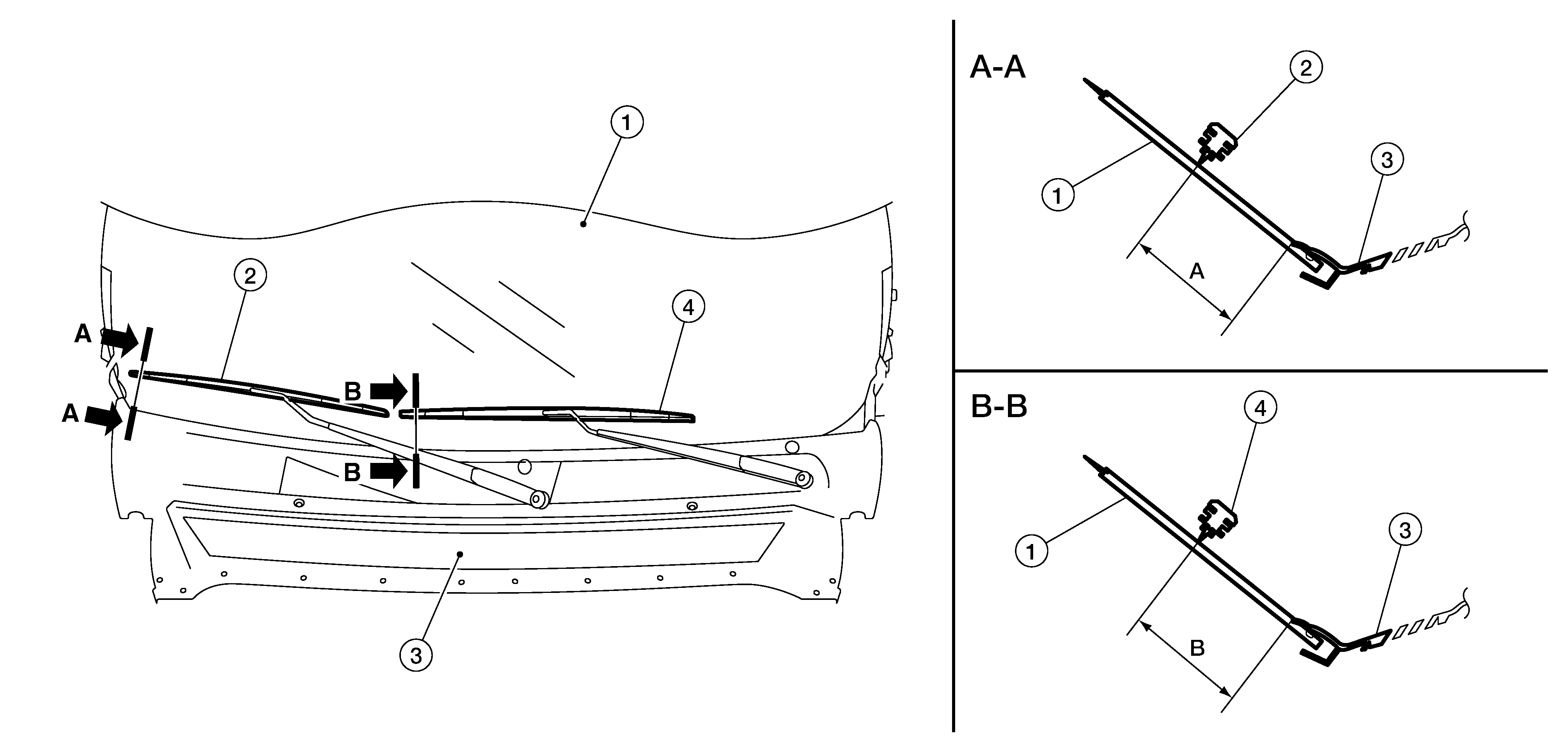

Clearance between the end of cowl top cover/ front fender cover and the top of wiper blade center.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Windshield glass
|
2.
|
Wiper blade (RH)
|
3.
|
Cowl top cover
|
|
4.
|
Wiper blade (LH)
|
A.
|
78 mm (3.1 in)
|
B.
|
40 mm (1.6 in)
|
