Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

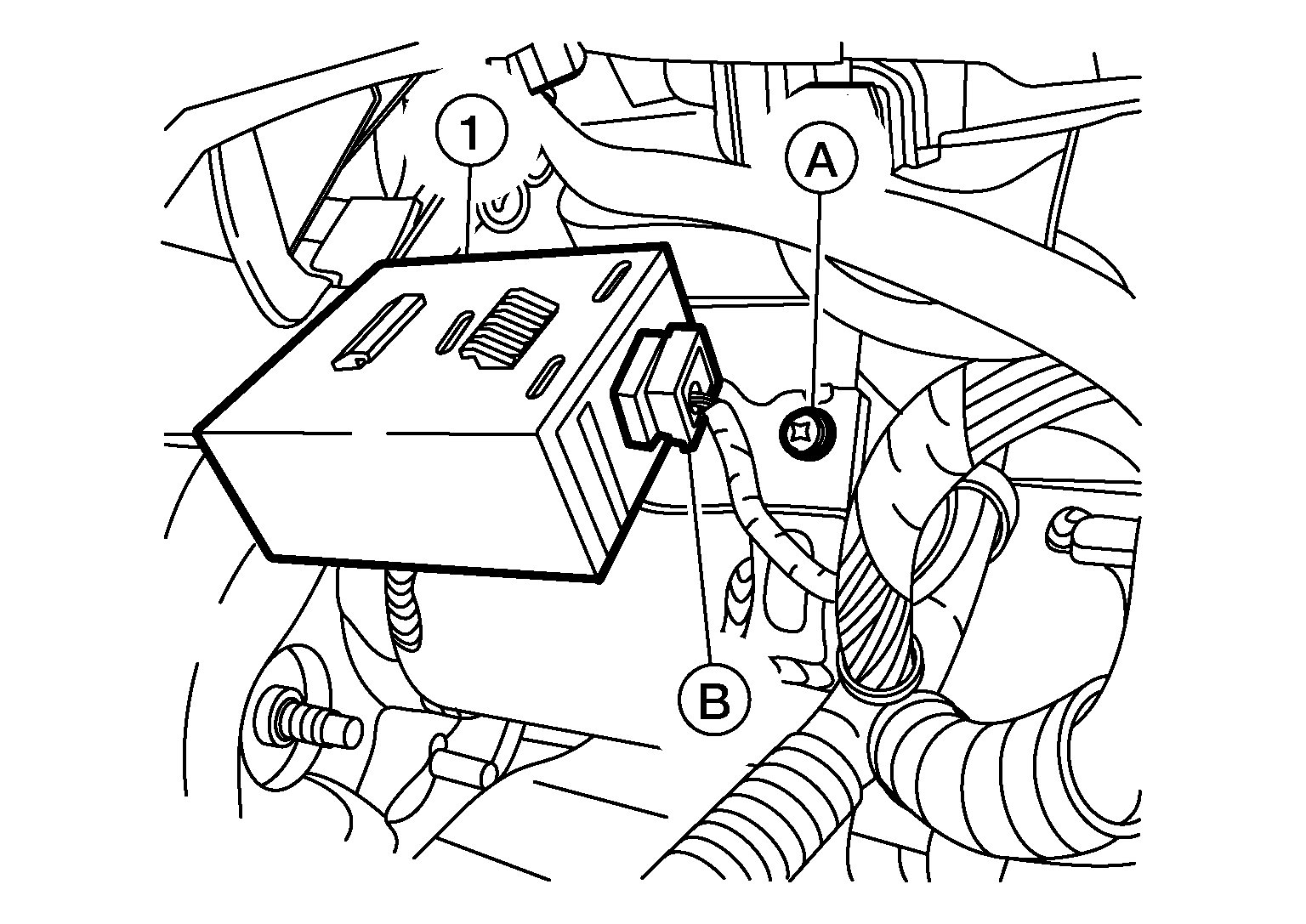

  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Disconnect harness connector (B) from warning buzzer (1).
  3. Remove screw (A) and remove warning buzzer.
    GNSALOIA0453Z-453Courtesy of NISSAN NORTH AMERICA, INC.
