Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear bumper fascia. Refer to Removal and Installation .
- Disconnect harness connector from side radar.

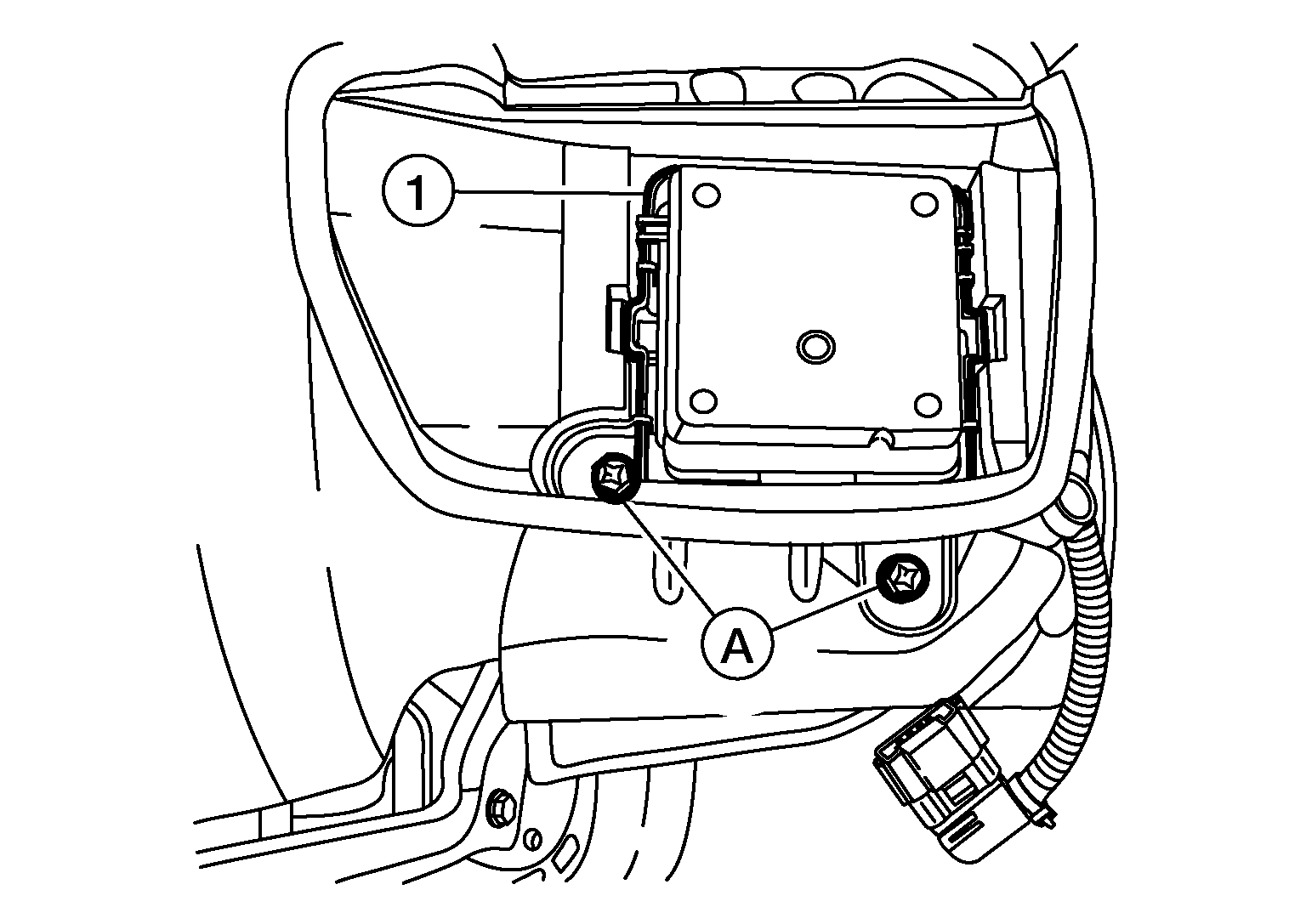

- Remove screws (A) from side radar (1).
- Release pawls on rear of side radar using suitable tool and remove.
- Release pawls using suitable tool and remove splash guard from side radar.
