Exhaust Compartment
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
|

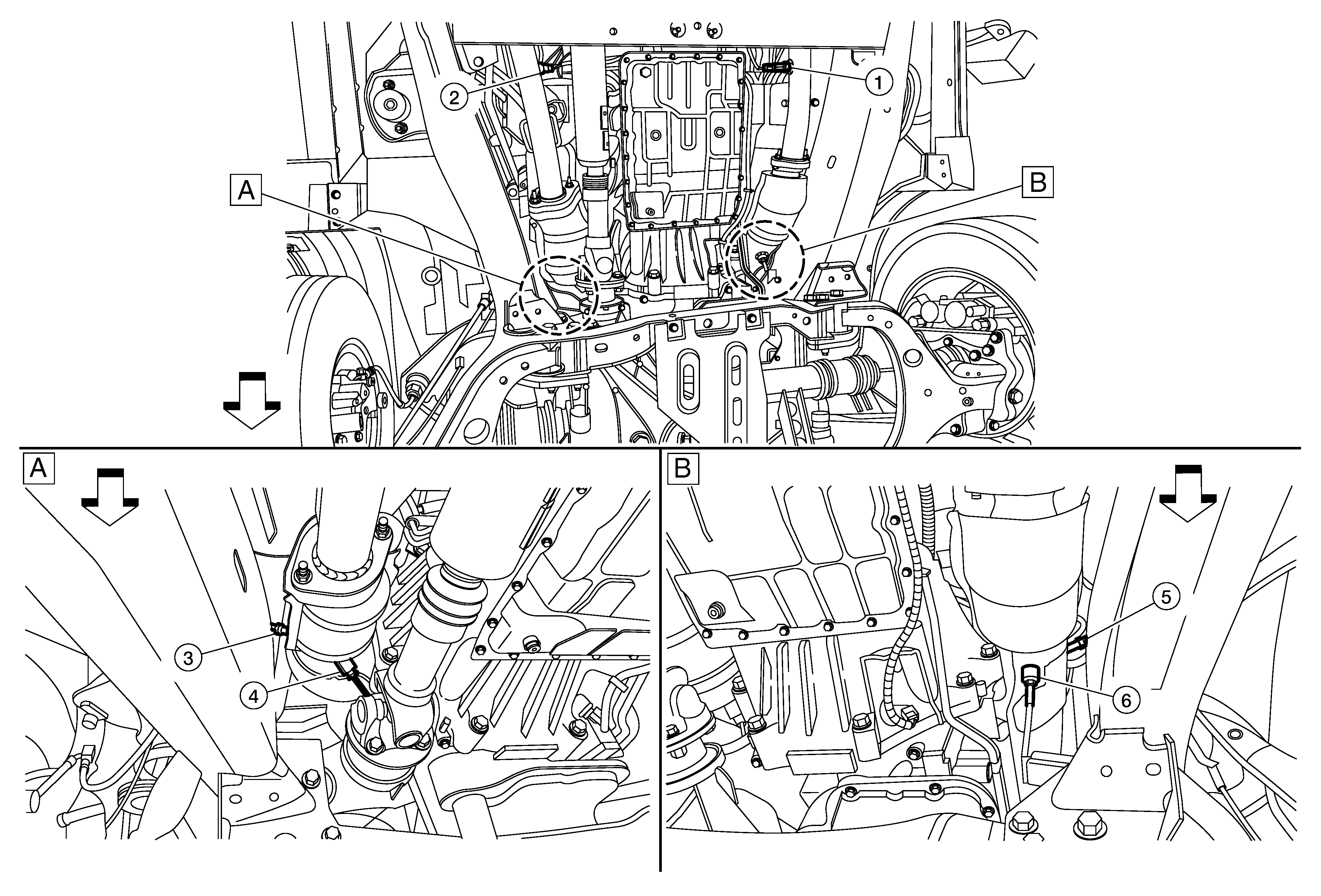

Rear left under view of the engine |
|
Rear right under view of the engine |
|
|
: Vehicle front |
|
No. |
Component parts |
Function |
|
|
Heated oxygen sensor 2 (bank 2) |
|
|
|
Heated oxygen sensor 2 (bank 1) |
|
|
|
A/F sensor 1 (bank 1) |
|
|
|
Exhaust gas temperature sensor (bank 1) |
|
|
|
A/F sensor 1 (bank 2) |
|
|
|
Exhaust gas temperature sensor (bank 2) |
