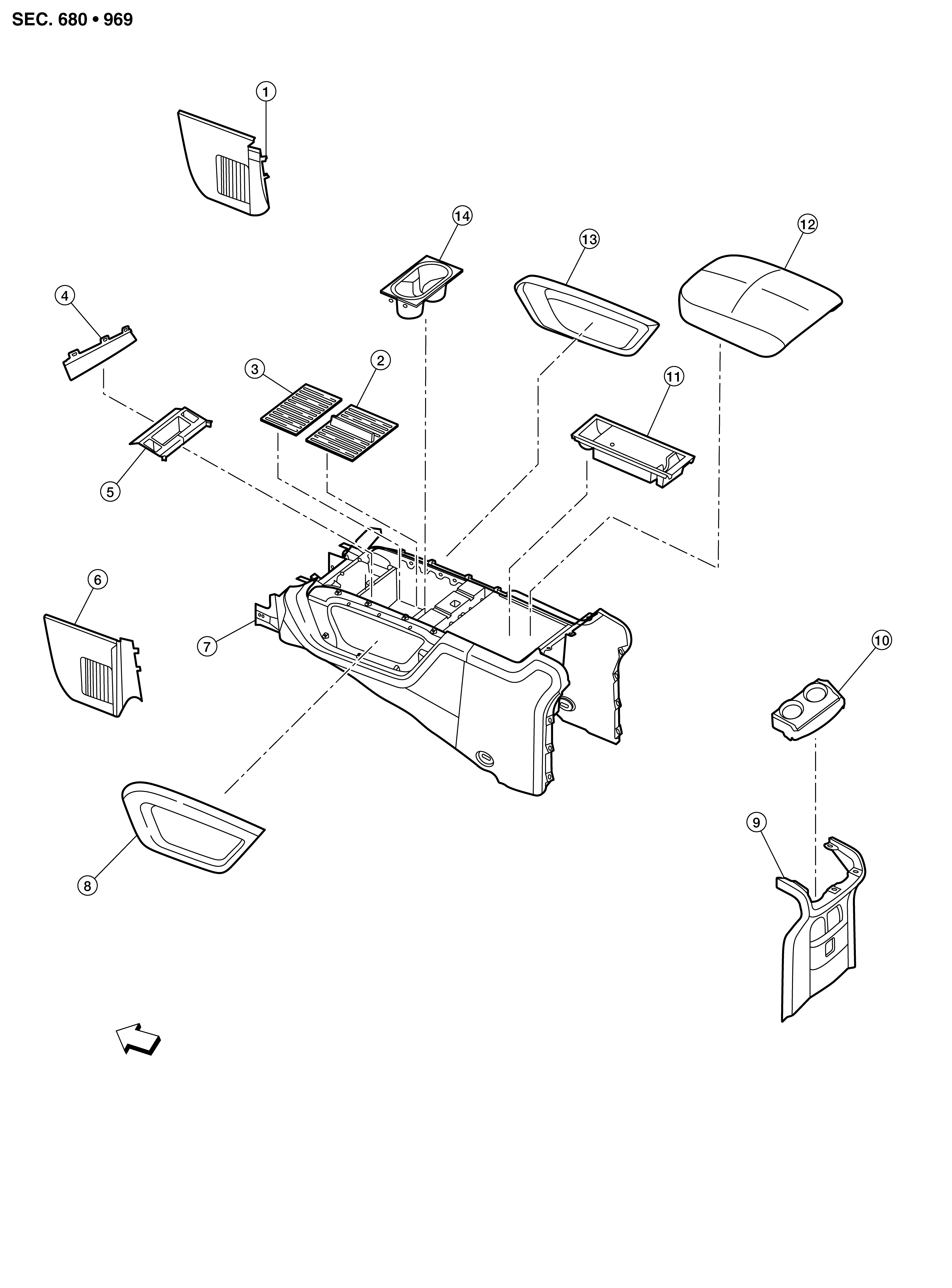

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Instrument stay cover (RH) |
2. |
Rubber mat |
3. |
Console mat |
|
4. |
Front console cover |
5. |
Console switch finisher |
6. |
Instrument stay cover (LH) |
|
7. |
Center console |
8. |
Console finisher (LH) |
9. |
Center console rear finisher |
|
10. |
Rear cup holder |
11. |
Console tray |
12. |
Console lid |
|
13. |
Console finisher (RH) |
14. |
Cup holder |
|
Front |
