Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to Removal and Installation .
  2. Remove console lid.
  3. Remove console power socket. Refer to Removal and Installation .
  4. Remove rubber mat and tray.

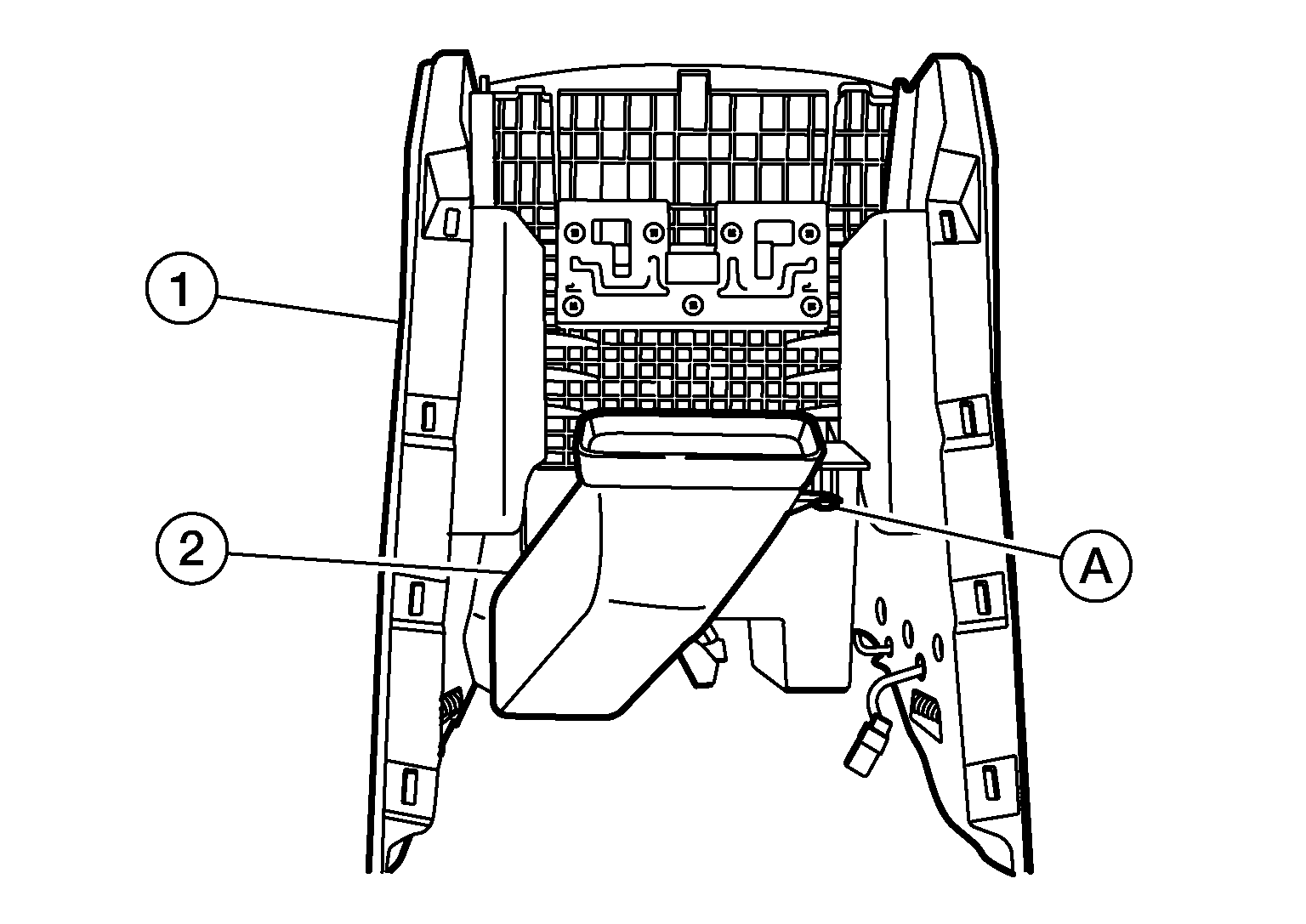

  5. Remove screw (A) and rear center ventilator duct (2) from the center console (1).
  6. Remove console finisher (LH/RH).
GNSAWLIA2749Z-749Courtesy of NISSAN NORTH AMERICA, INC.
