Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front passenger seat. Refer to Removal and Installation - Captain Seats.
  2. Remove the center console. Refer to Removal and Installation.
  3. Remove the instrument panel. Refer to Removal and Installation.
  4. Remove dash side finisher (LH/RH). Refer to Removal and Installation.
  5. Disconnect harness connector from front door (LH/RH).
  6. Disconnect main harness connectors. Refer to Harness Connector (lever locking type).
  7. Partially remove carpet (front RH) to release harness connector retainer clips from floor. Refer to Exploded View.
  8. Disconnect all necessary harness connectors and release harness retainers.
  9. Remove heating and cooling unit assembly bolts. Refer to Removal and Installation.
  10. Remove steering member caps. Refer to Exploded View.
  11. Remove steering member bolts. Refer to Exploded View.

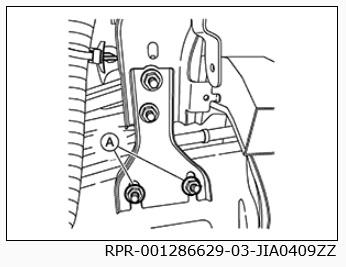

  12. Remove steering member nuts (A).
    G00400473Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown, LH similar

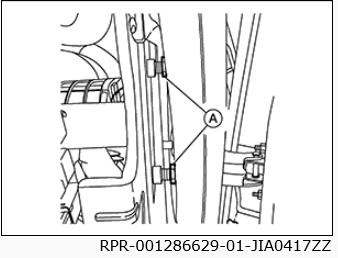

  13. Using a suitable tool, adjust spacers (A) and remove steering member from vehicle.
    Fig 1:
    G00400474Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Two people are required for removal to prevent damage to steering member.
  14. Remove nuts from steering member braces and remove steering member braces (if necessary).
