Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .

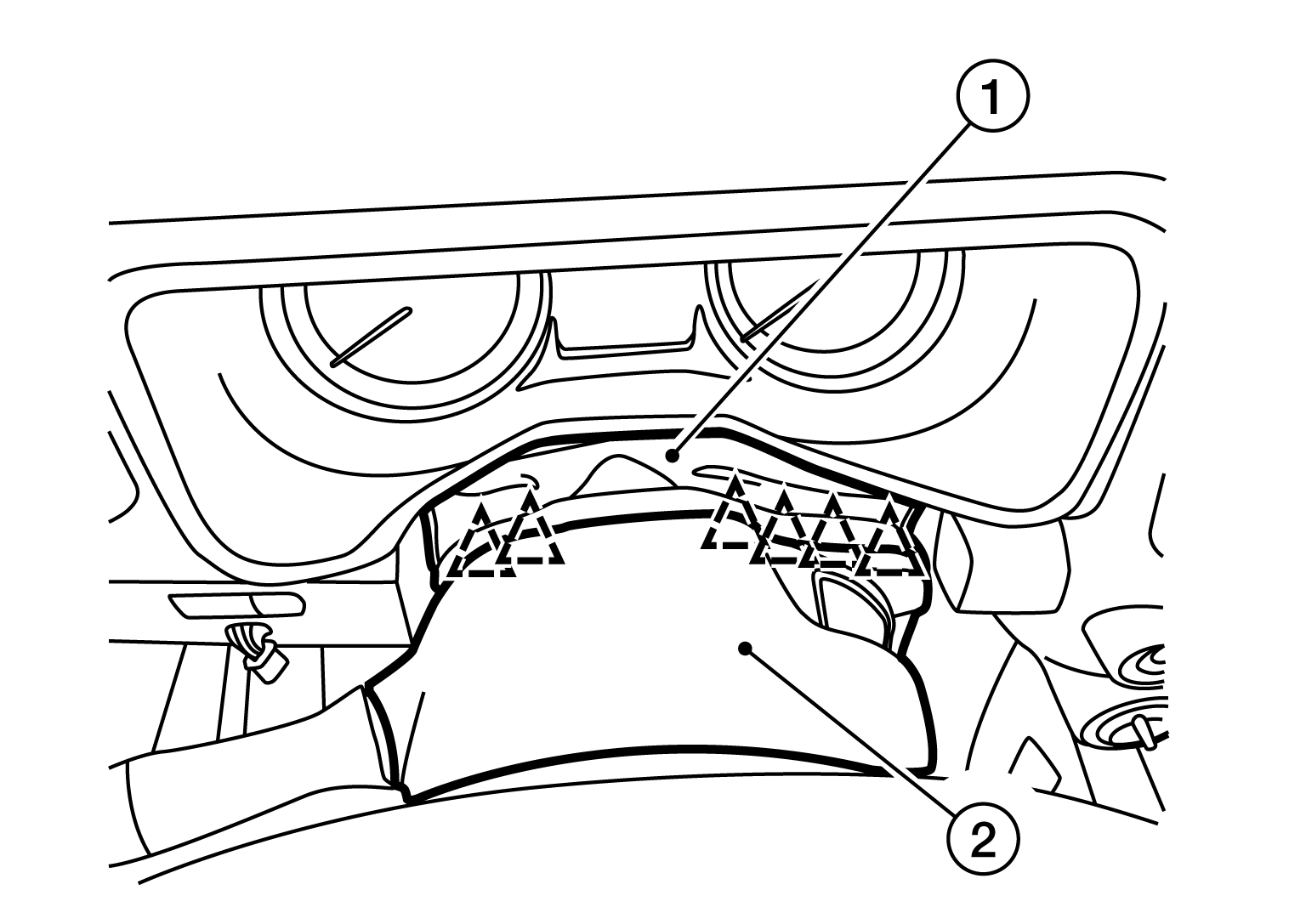

  2. Release gap hider (1) clips from the steering column upper cover (2).
    GNSALJIA1932Z-932Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip

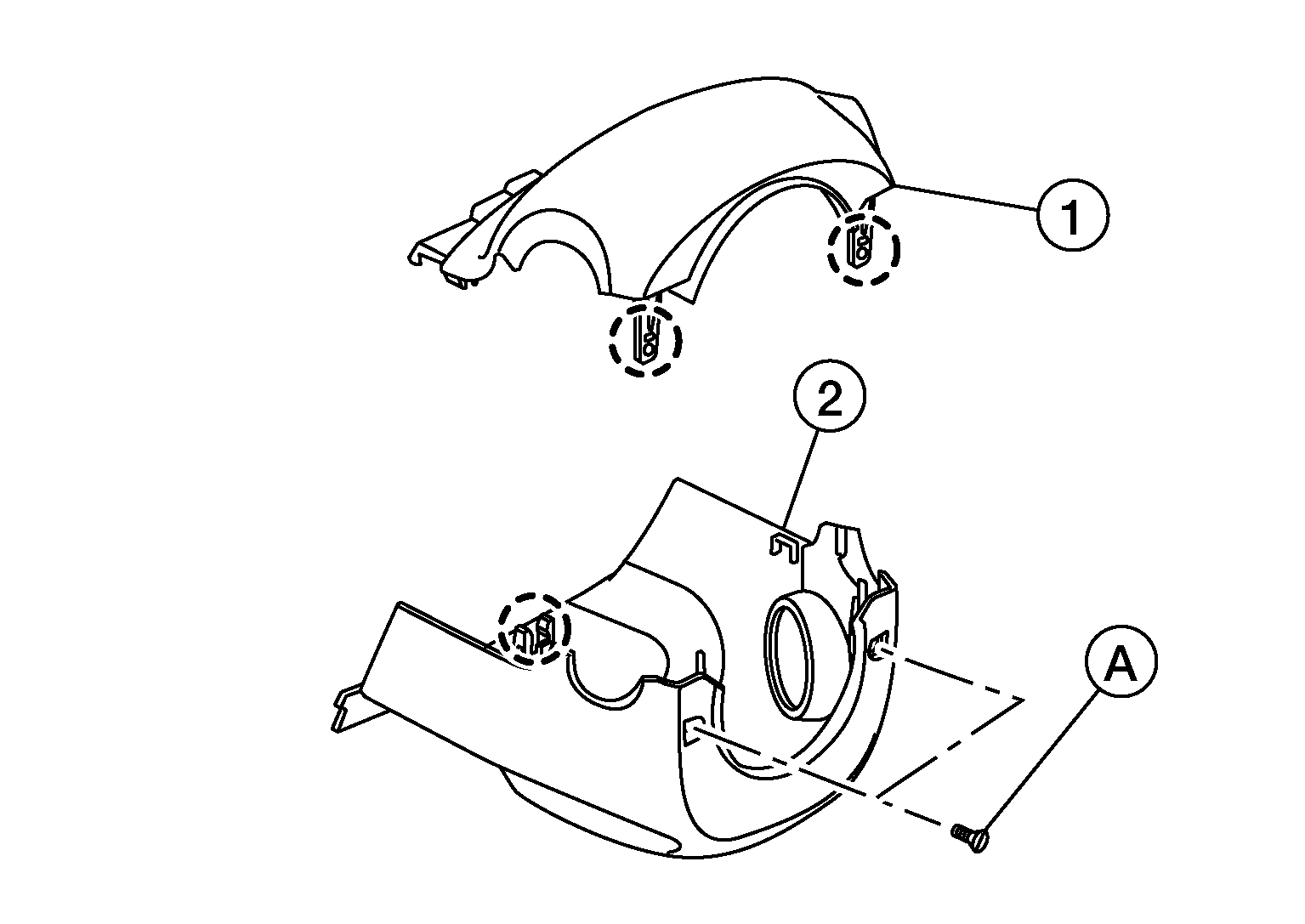

  3. Remove steering column cover screws (A).
    GNSALJIA1382Z-382Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Rotate steering wheel to access steering column cover screws.
  4. Release steering column upper cover (1) pawls using a suitable tool and remove.
  5. Release steering column lower cover (2) pawl using a suitable tool.

    SYMBOL

    : Pawl

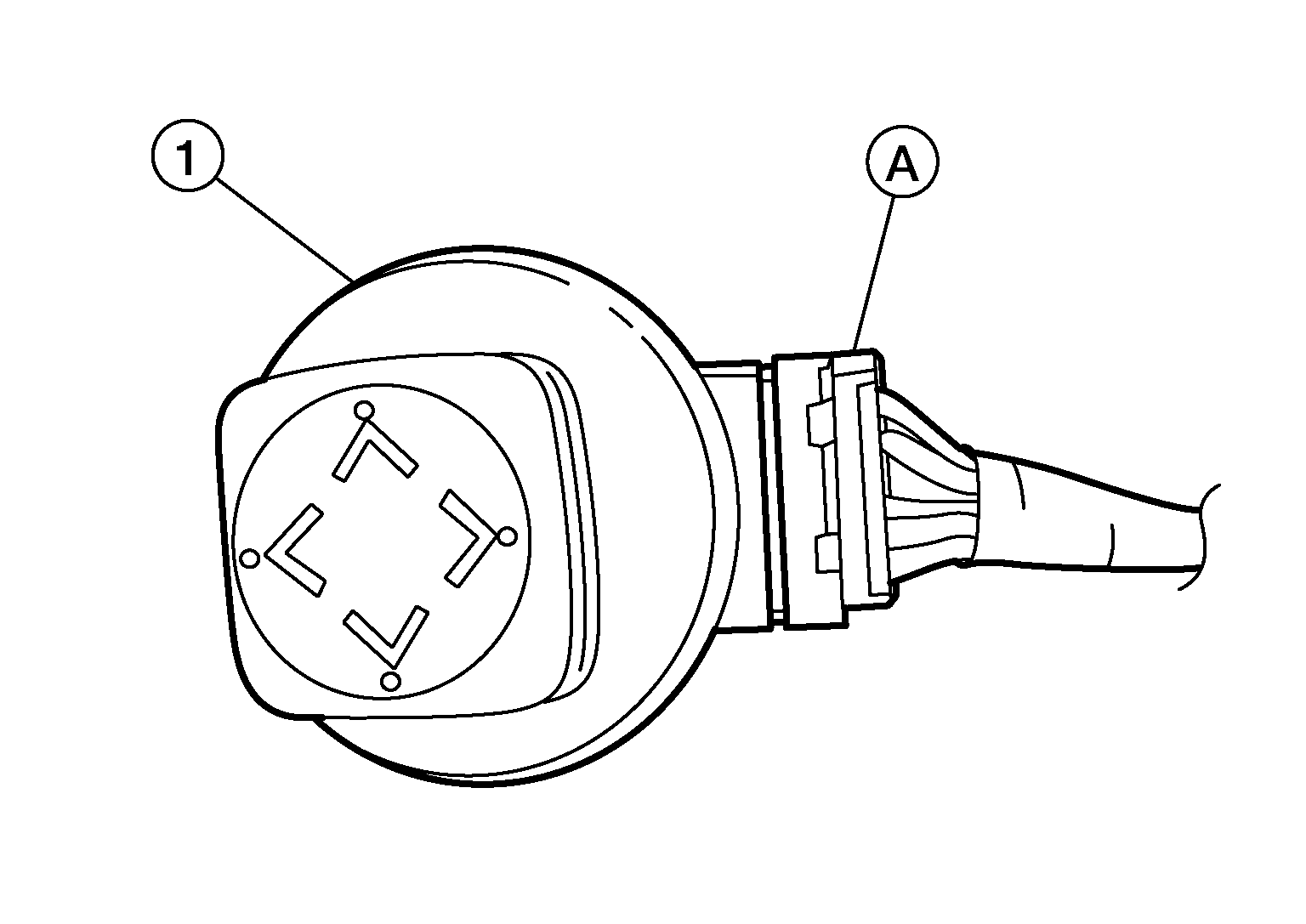

  6. Disconnect the harness connector (A) from the ADP steering switch [1 (if equipped)] and remove steering column lower cover.
    GNSALJIA1921Z-921Courtesy of NISSAN NORTH AMERICA, INC.
