Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C finishers (LH/RH). Refer to Removal and Installation .
  2. Remove instrument finisher B. Refer to Removal and Installation .

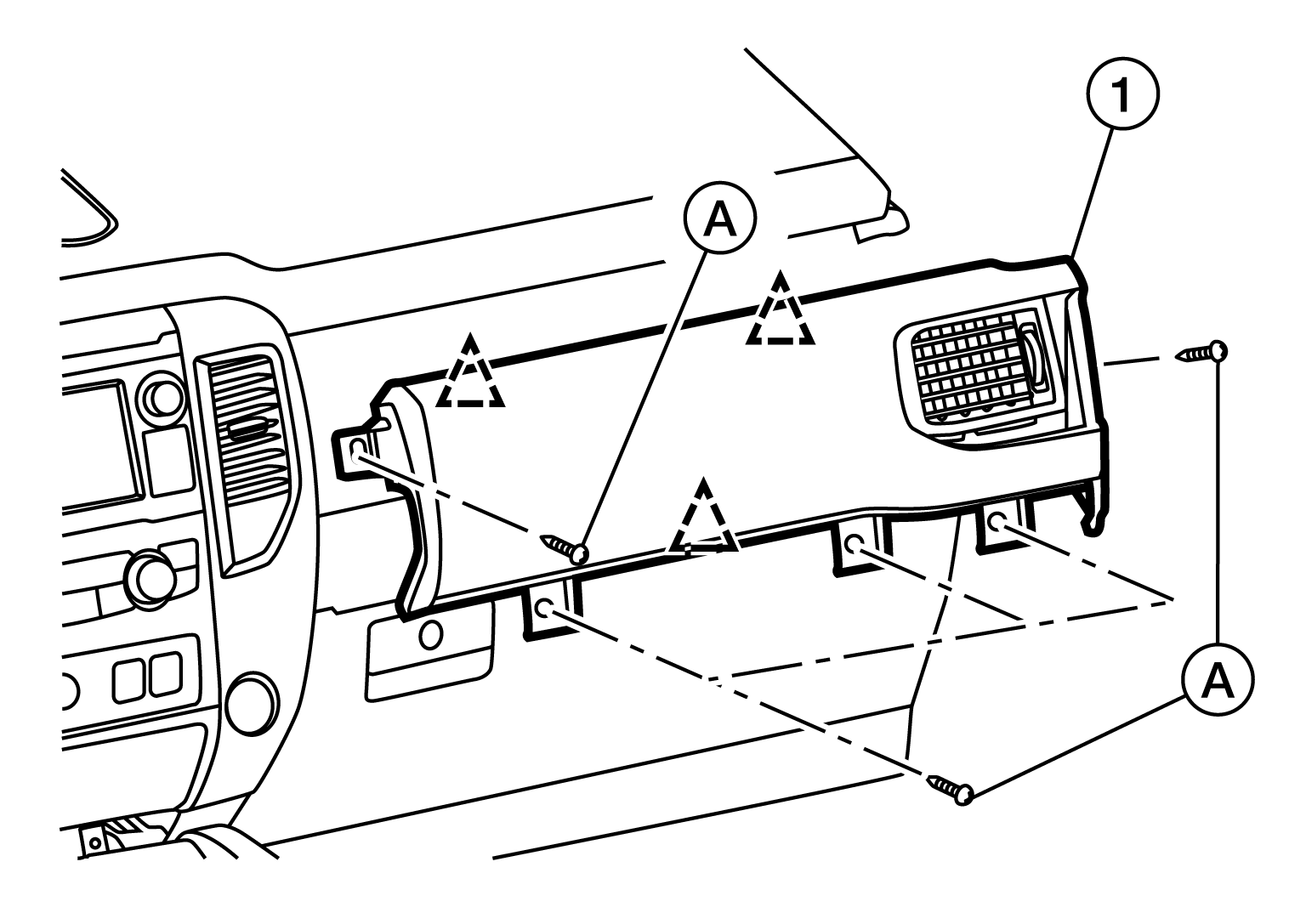

  3. Remove instrument upper panel screws (A).
    GNSALJIA1931Z-931Courtesy of NISSAN NORTH AMERICA, INC.
  4. Release instrument upper panel clips using a suitable tool, then remove instrument upper panel (1).

    SYMBOL

    : Clip
