Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove glove box assembly and housing. Refer to Removal and Installation .

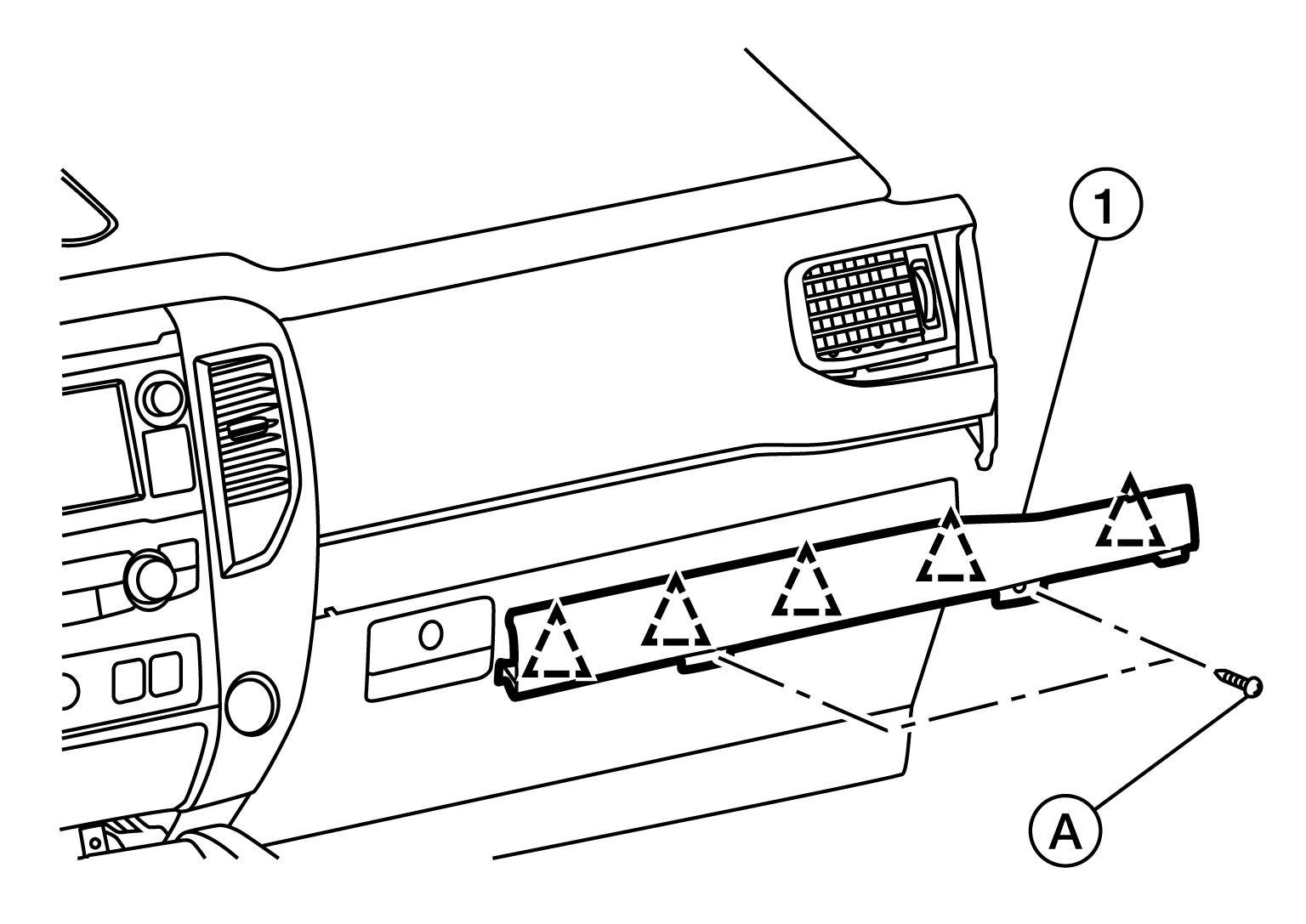

  2. Remove instrument finisher B screws (A), release instrument finisher B clips, then remove instrument finisher B (1).
    GNSALJIA1929Z-929Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip
