Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .

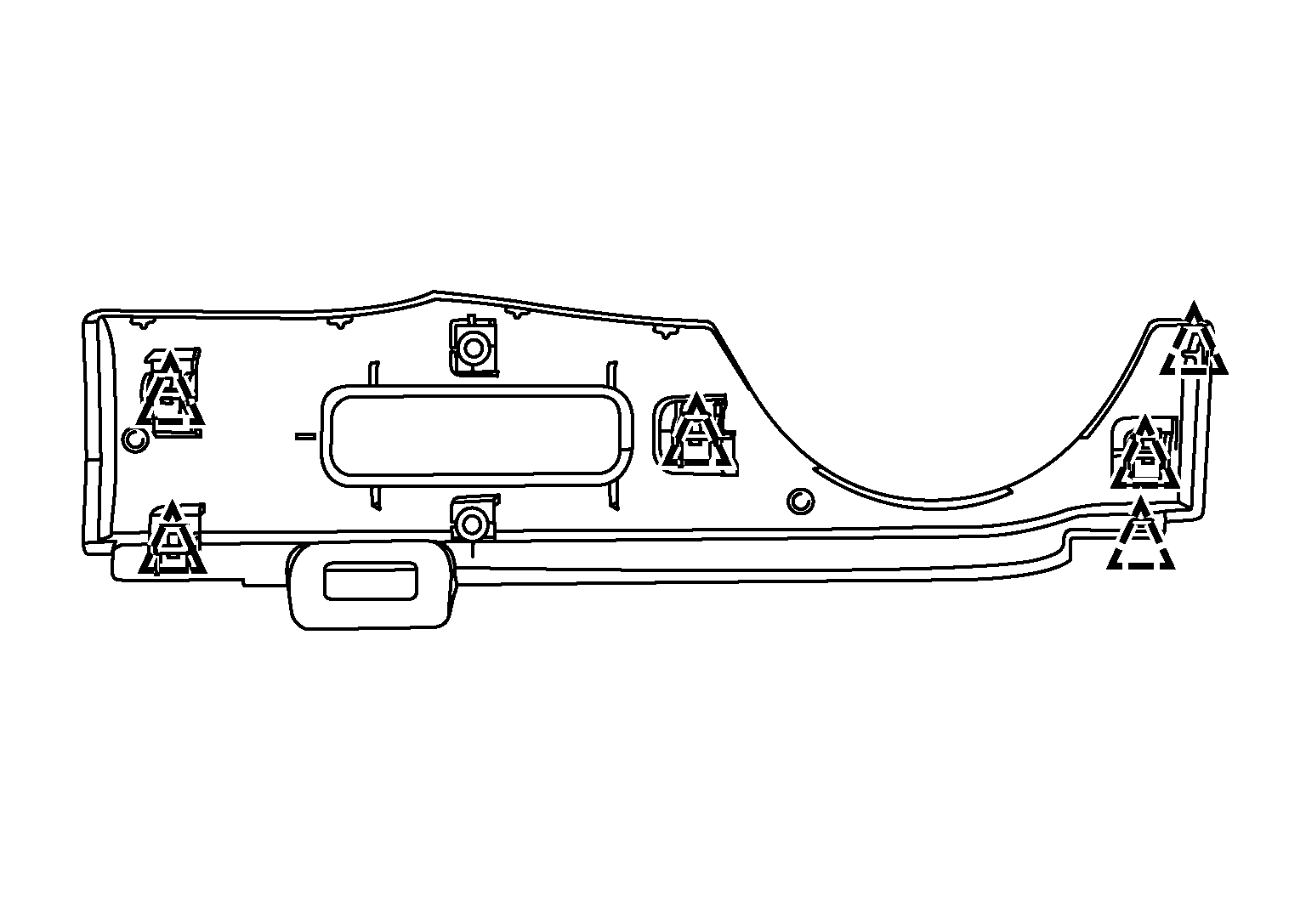

  2. Release instrument finisher A clips using a suitable tool, then remove instrument finisher A.
    GNSAWJIA2020Z-020Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip
