Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C finishers (LH/RH). Refer to Removal and Installation .

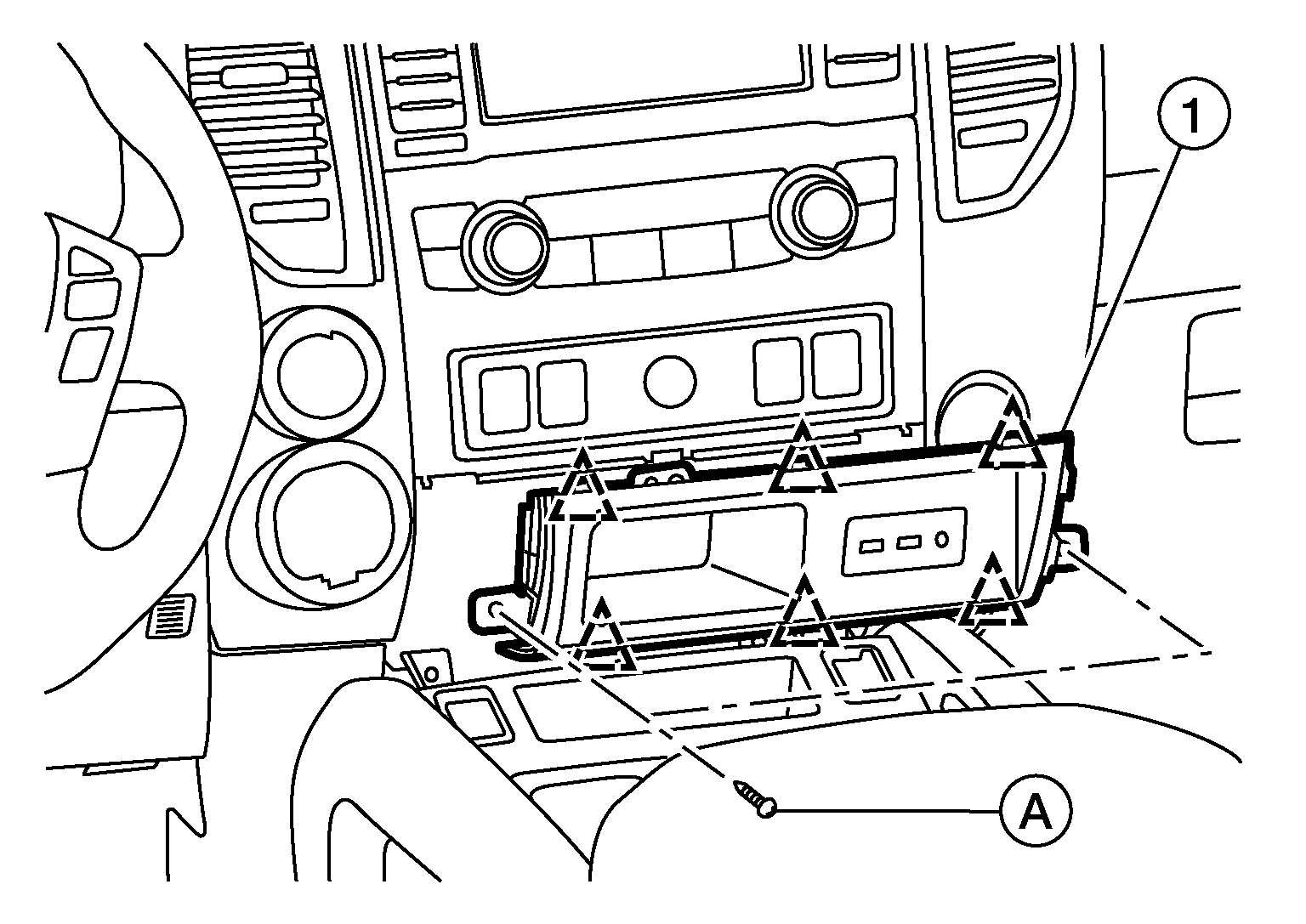

  2. Remove cluster lid C lower screws (A).
    GNSALJIA0327Z-327Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the clips for cluster lid C lower using a suitable tool.

    SYMBOL

    : Clip
  4. Disconnect all harness connectors then remove cluster lid C lower (1).
