Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

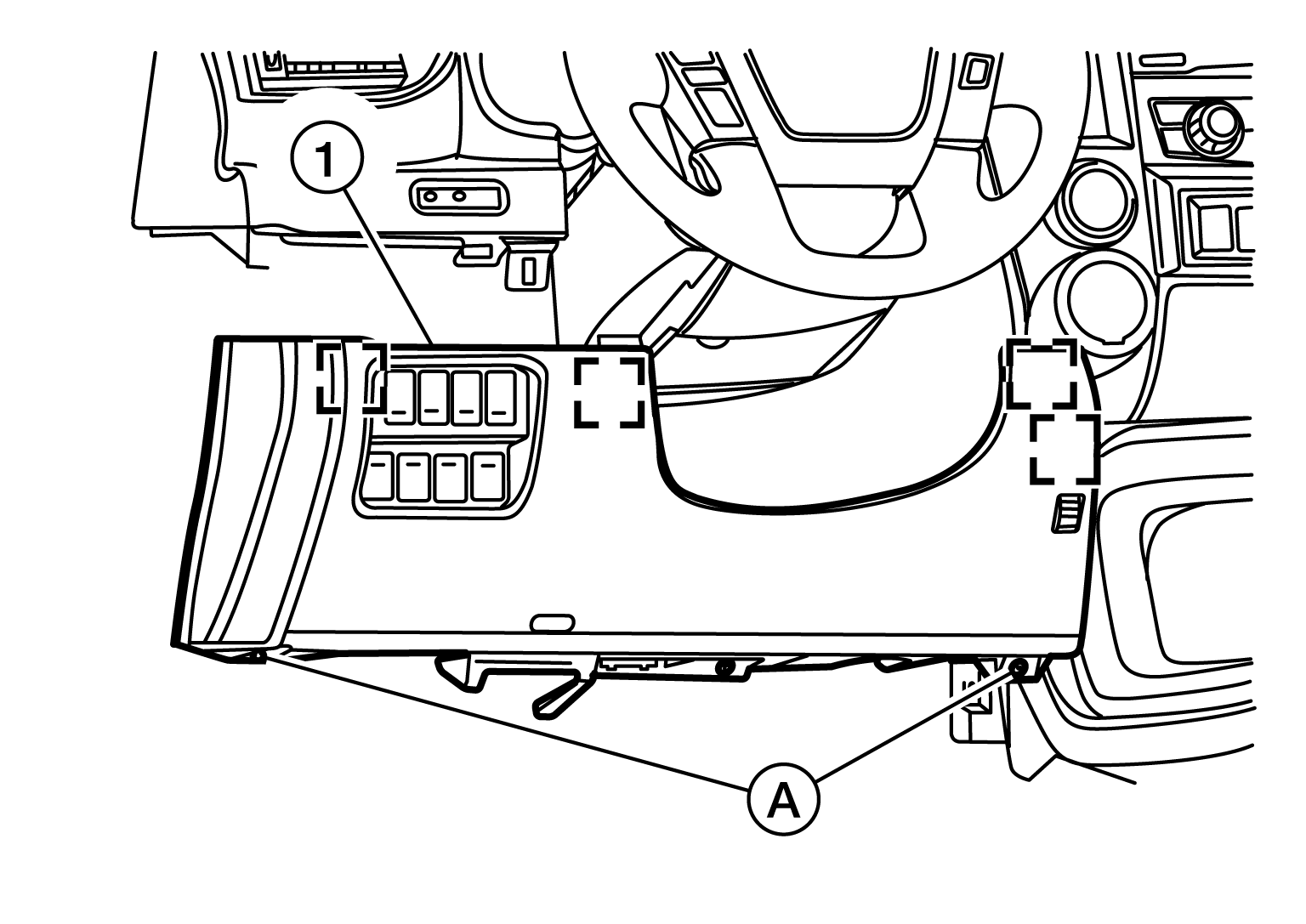

- Remove instrument lower panel LH (1) screws (A).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Disconnect in vehicle sensor tube.
- Release instrument lower panel LH metal clips using a suitable tool, disconnect harness connectors and remove instrument lower panel LH.
|
|
: Metal clip
|
