Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C lower. Refer to Removal and Installation .

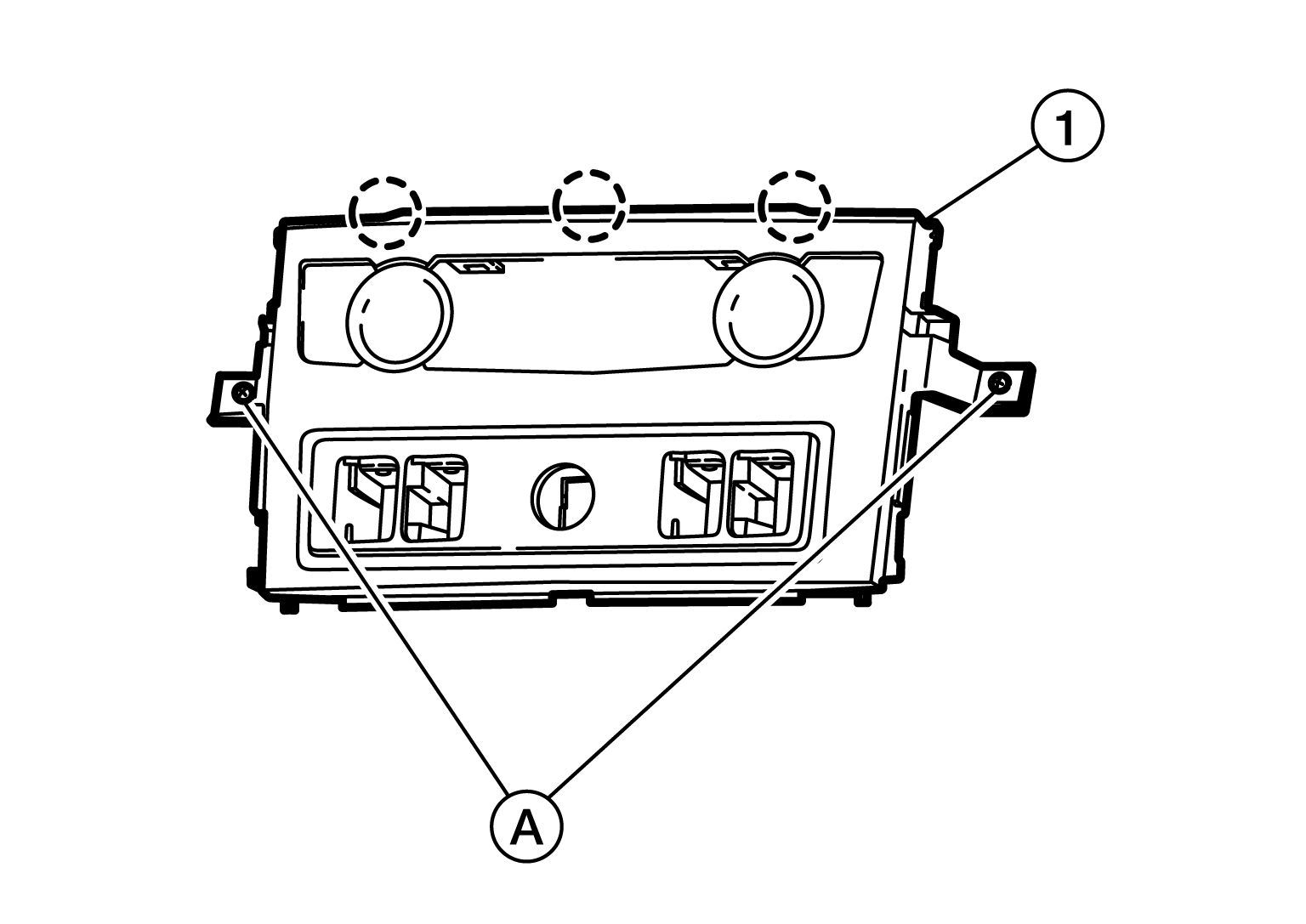

  2. Remove screws (A).
    GNSAWJIA2074Z-074Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release cluster lid C (1) pawls using a suitable tool.

    SYMBOL

    : Pawl
  4. Disconnect the harness connectors and remove cluster lid C.
