Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C finisher (LH). Refer to Removal and Installation .
  2. Remove instrument finisher A. Refer to Removal and Installation .
  3. Disconnect the harness connectors from switches.

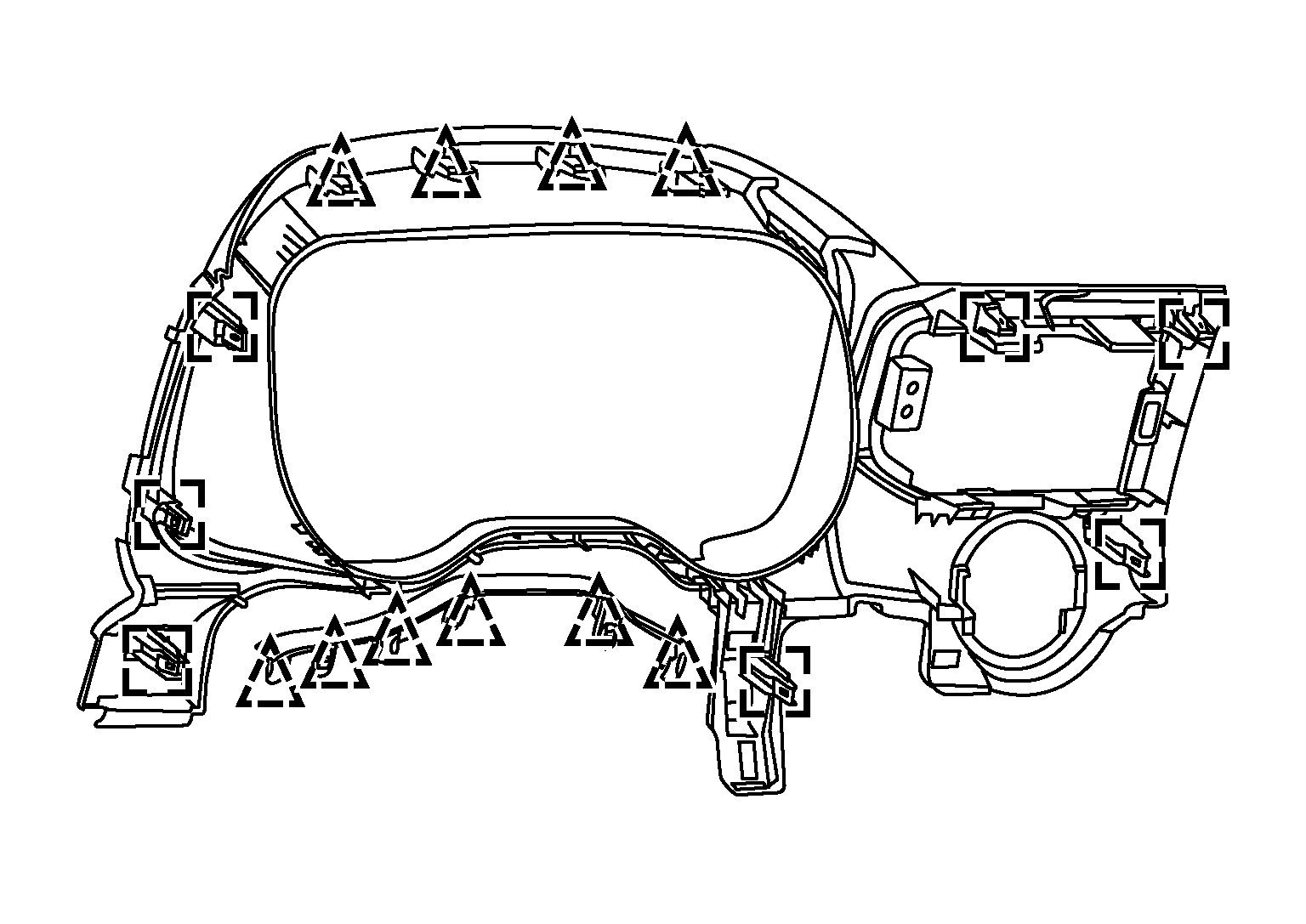

  4. Release cluster lid A clips and metal clips using a suitable tool and remove.
    GNSAWJIA0242Z-242Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip

    SYMBOL

    : Metal clip
