Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Remove glove box assembly and housing. Refer to Removal and Installation .
  3. Release pawls and remove front console cover.

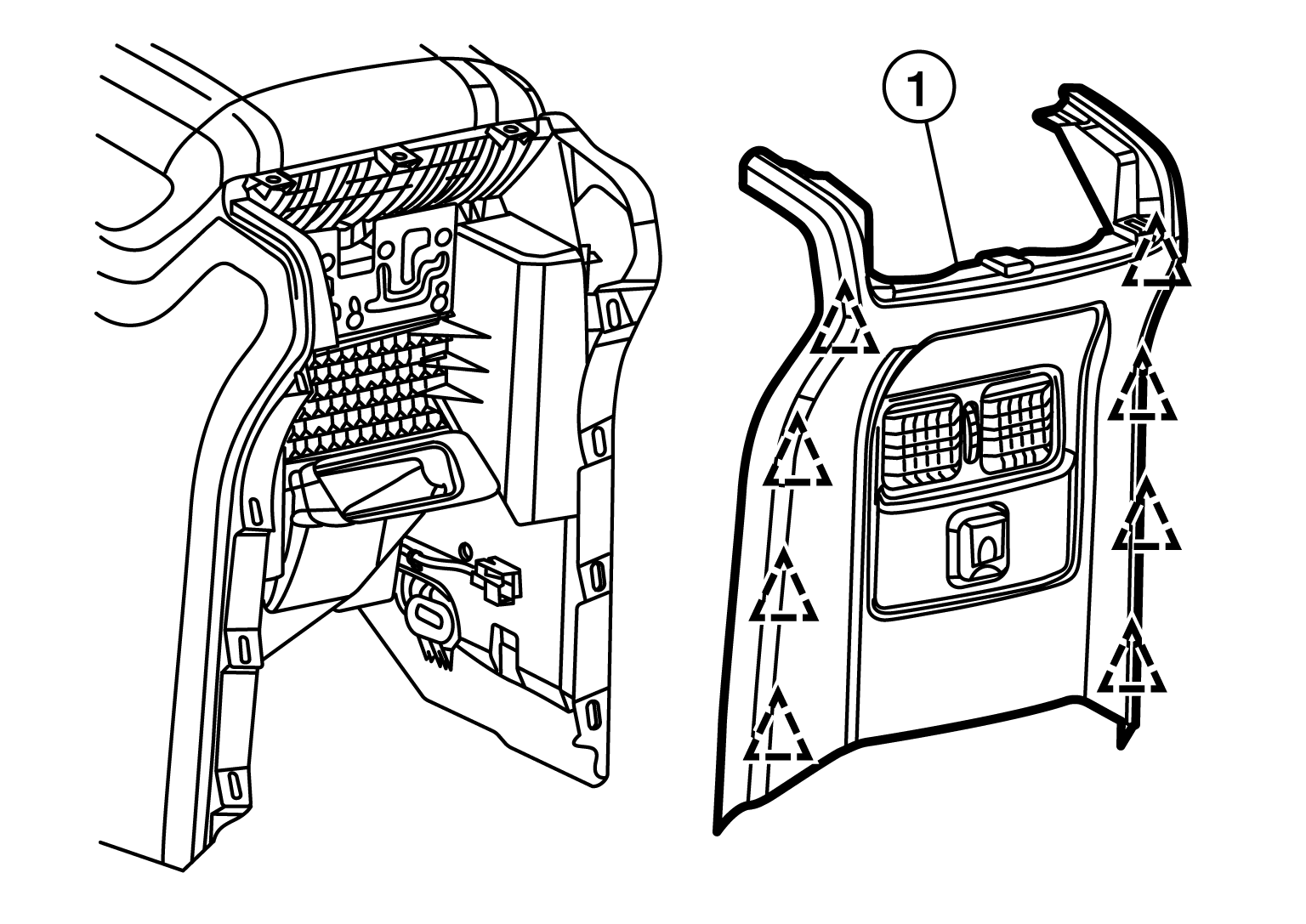

  4. Release clips using suitable tool and reposition center console rear finisher(1).
    GNSAWJIA2077Z-077Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip
  5. Disconnect harness connectors from center console rear heated seat switch [LH/RH (if equipped)].
  6. Disconnect harness connector from AC 120V outlet.
  7. Disconnect harness connector from rear USB charge port (if equipped).
  8. Disconnect harness connector from rear power socket (if equipped).
  9. Remove rear cup holder.
  10. Remove instrument stay covers (LH/RH).

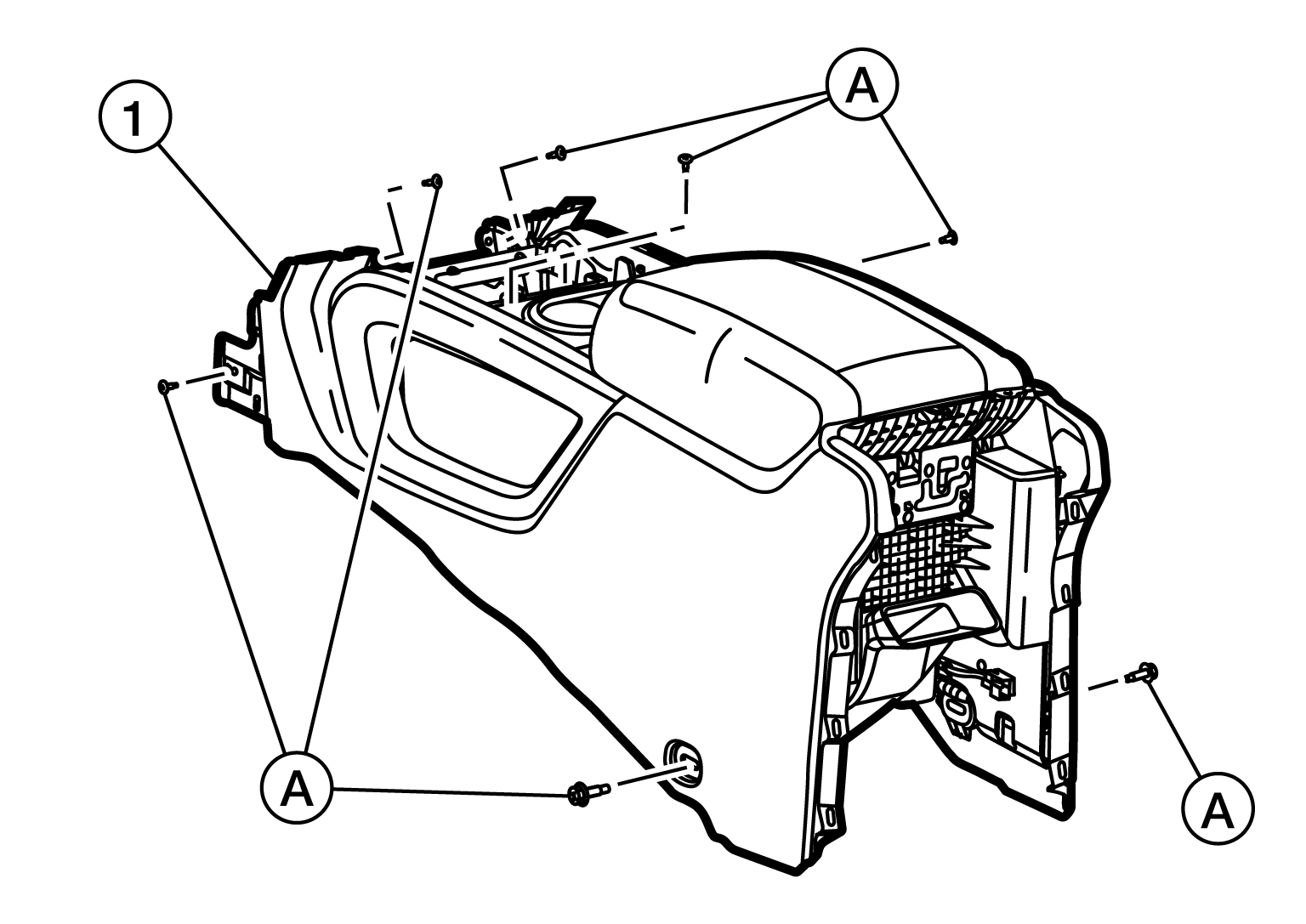

  11. Remove center console screws (A).
    GNSAWJIA2078Z-078Courtesy of NISSAN NORTH AMERICA, INC.
  12. Remove center console (1).
