System Description: Definitions
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

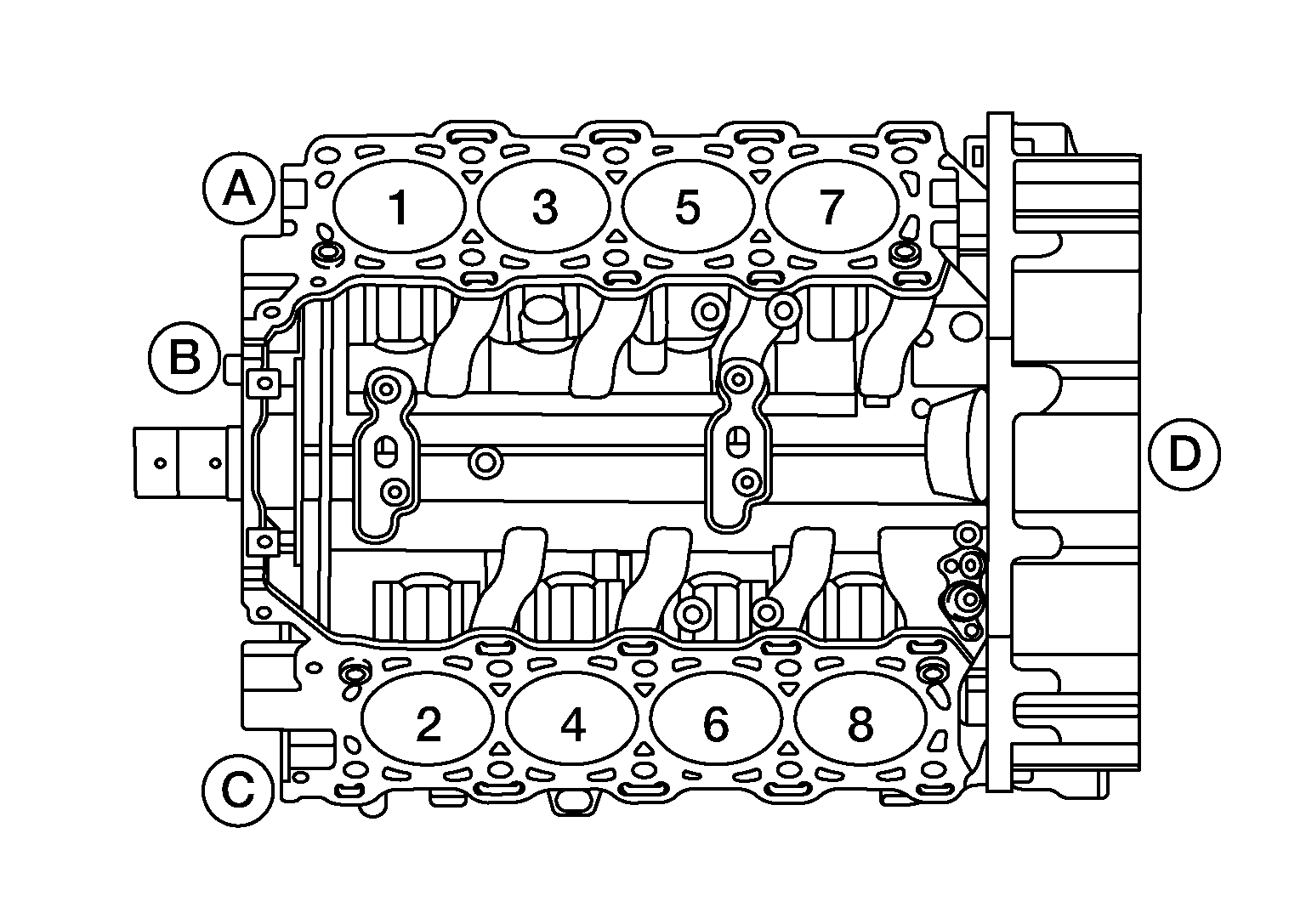

The following nomenclature is used in all procedures:
- The front of the engine is the engine front (B), the rear of the engine is the engine rear (D).
- Bank 1 (A) and bank 2 (C) of the engine are stated as viewed from the engine rear.
- The cylinders are numbered starting on bank 1 and alternating sides. For example, cylinder number 1 is at the front of the bank 1, and cylinder number 2 is at the front of the bank 2.
