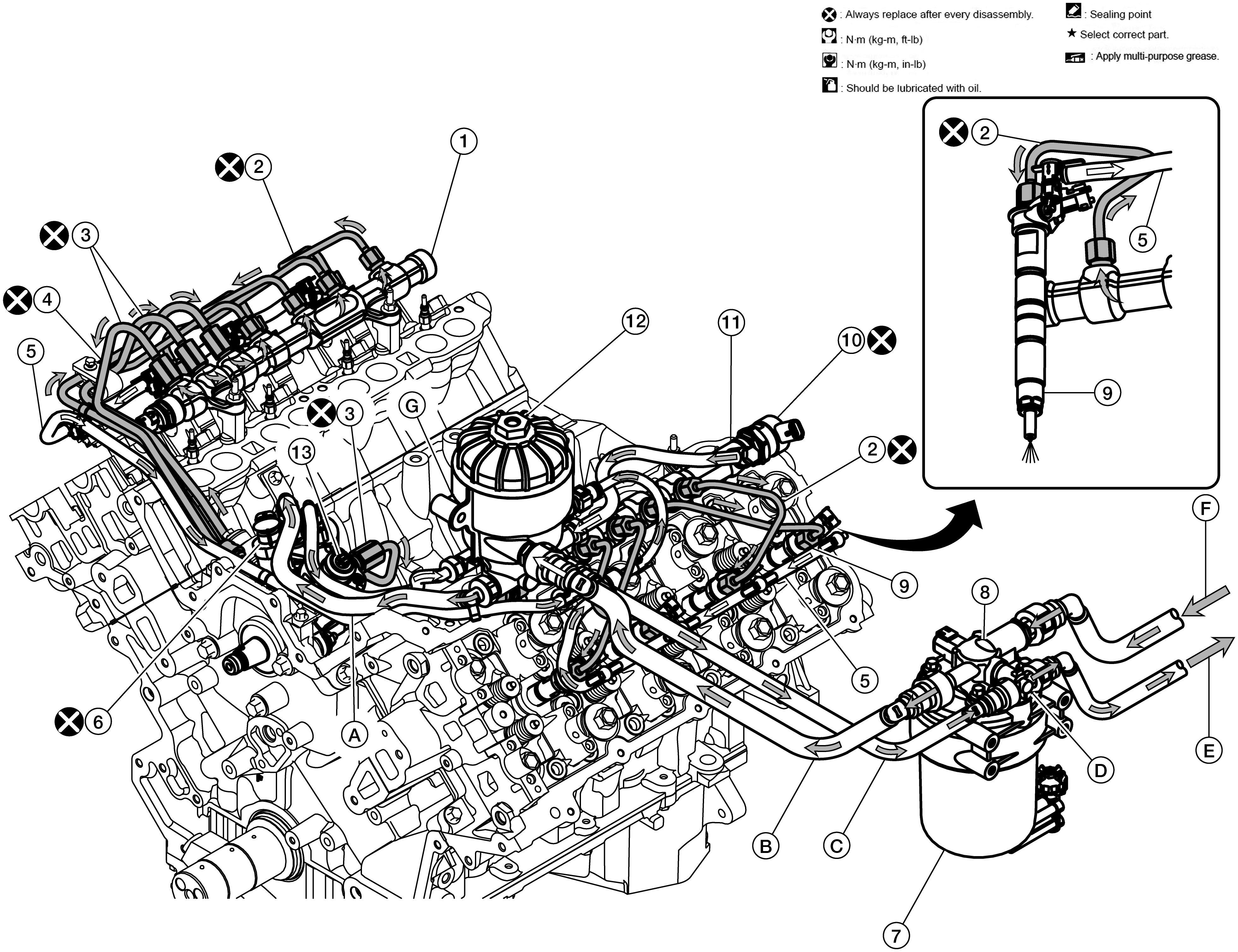

Flow Diagram
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Fuel rail (bank 1) |
2. |
Injector supply line |
3. |
Fuel rail supply lines |
|
4. |
Fuel rail to fuel rail supply line |
5. |
Injector drain line (returns to supply of Stage II fuel filter) |
6. |
Fuel pump actuator |
|
7. |
Stage I fuel filter housing |
8. |
Electric lift pump |
9. |
Fuel injector |
|
10. |
Fuel rail pressure relief valve |
11. |
Fuel rail (bank 2) |
12. |
Stage II fuel filter housing |
|
13. |
Fuel pump |
A. |
Fuel flow to fuel pump |
B. |
Fuel supply to Stage II fuel filter |
|
C. |
Fuel return to thermal recirculation valve (Stage I fuel filter) |
D. |
Thermal recirculation valve |
E. |
Fuel return to fuel tank |
|
F. |
Fuel flow from fuel tank |
G. |
Combined fuel return (manifold located in bottom of Stage II fuel filter) |
