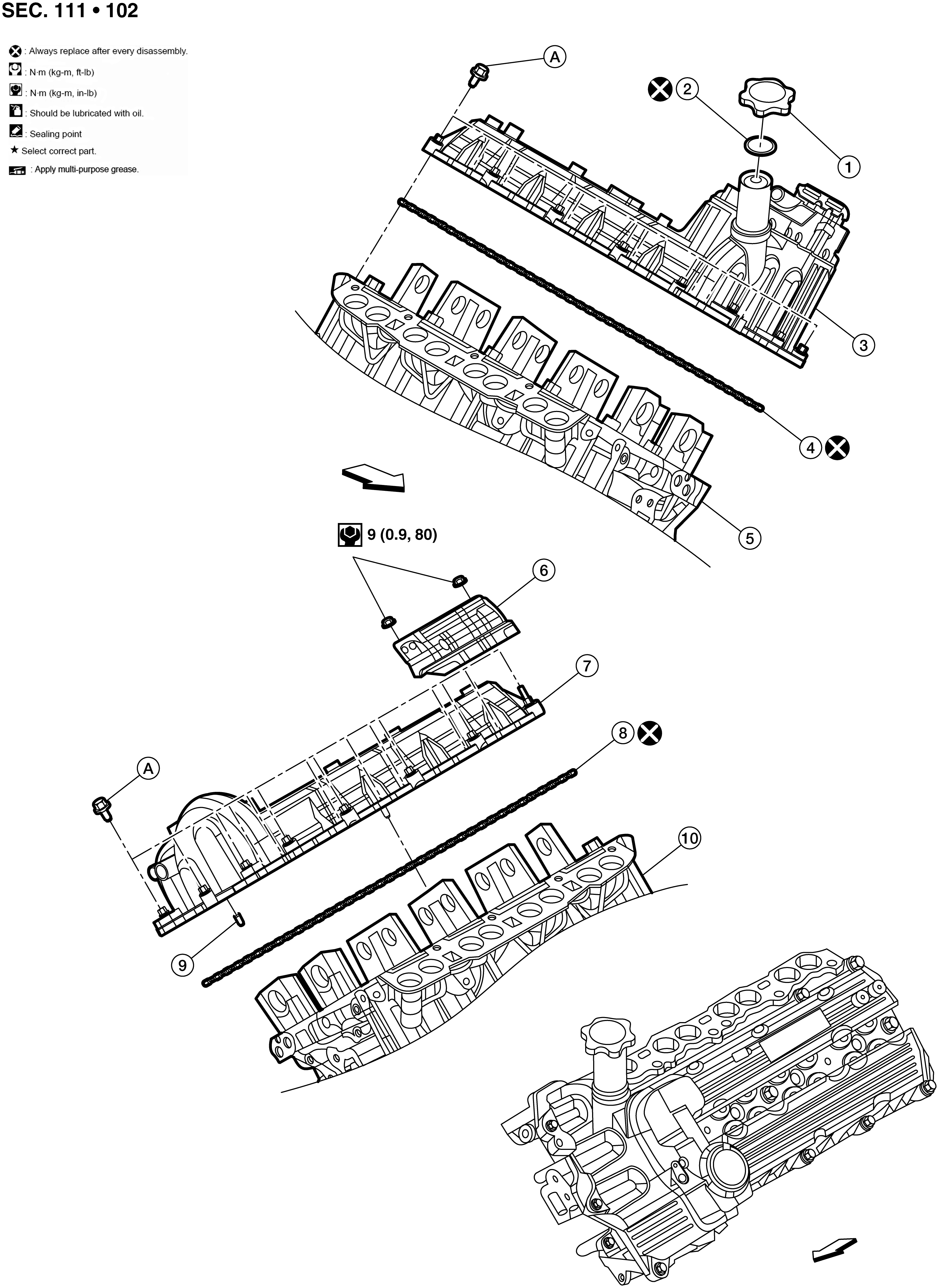

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Oil filler cap |
2. |
O-ring |
3. |
Rocker cover (bank 2) |
|
4. |
Rocker cover gasket (bank 2) |
5. |
Cylinder head (bank 2) |
6. |
Rocker cover heat shield |
|
7. |
Rocker cover (bank 1) |
8. |
Rocker cover gasket (bank 1) |
9. |
Dowel pin |
|
10. |
Cylinder head (bank 1) |
A. |
Refer to 3INSTALLATION |
|
Front |
