General Information

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

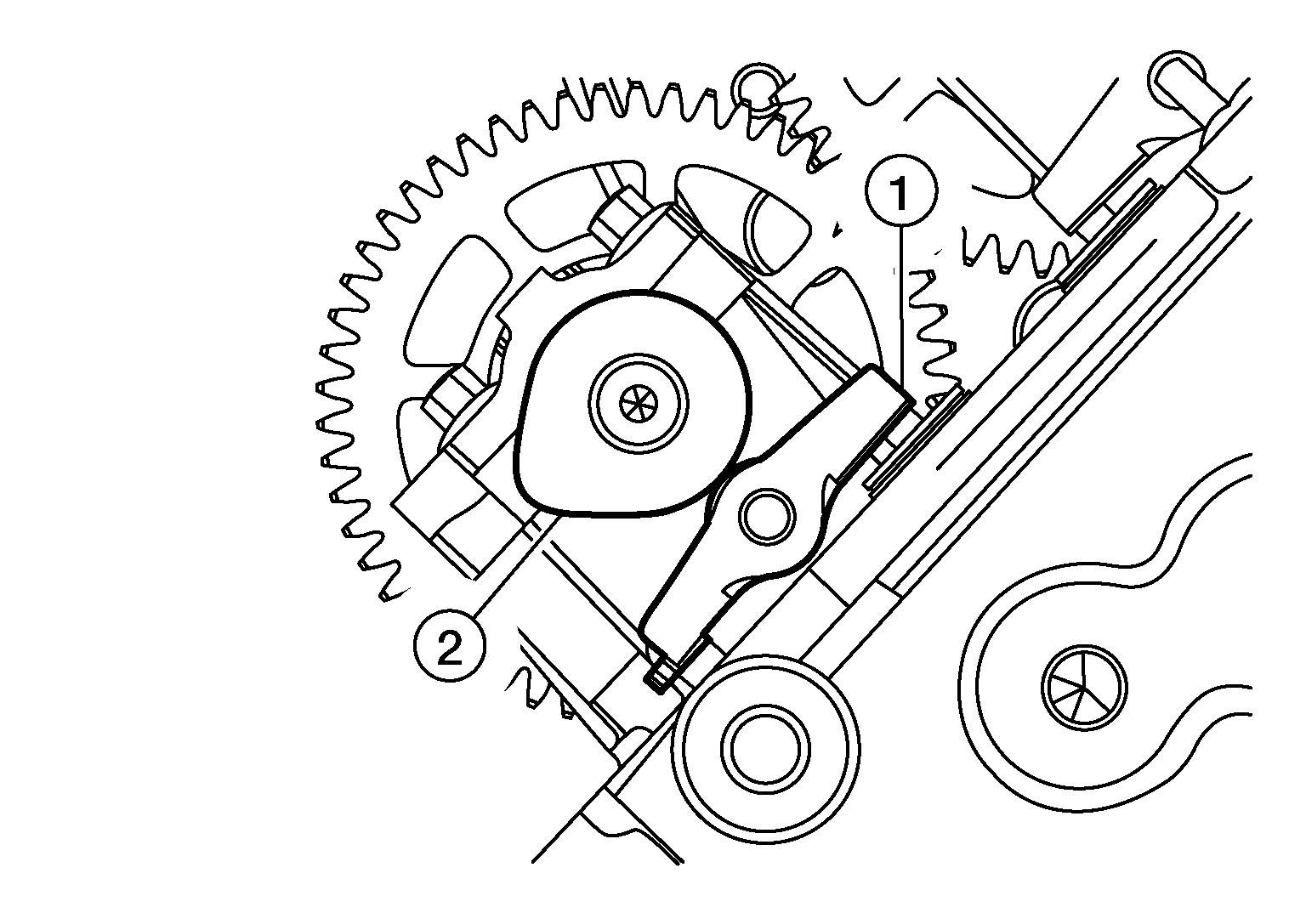

The rocker arms (1) are located under the camshafts (2) and are directly responsible for transferring the camshaft lobe position to the valves. The rocker arm lash is not adjustable and is controlled by oil pressure.

Courtesy of NISSAN NORTH AMERICA, INC.
This procedure is written to remove, inspect, and install the rocker arms one cylinder at a time. The procedure is then repeated for other cylinders.
If all rocker arms must be removed for inspection, remove the camshafts first. Refer to Removal and Installation .
