Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

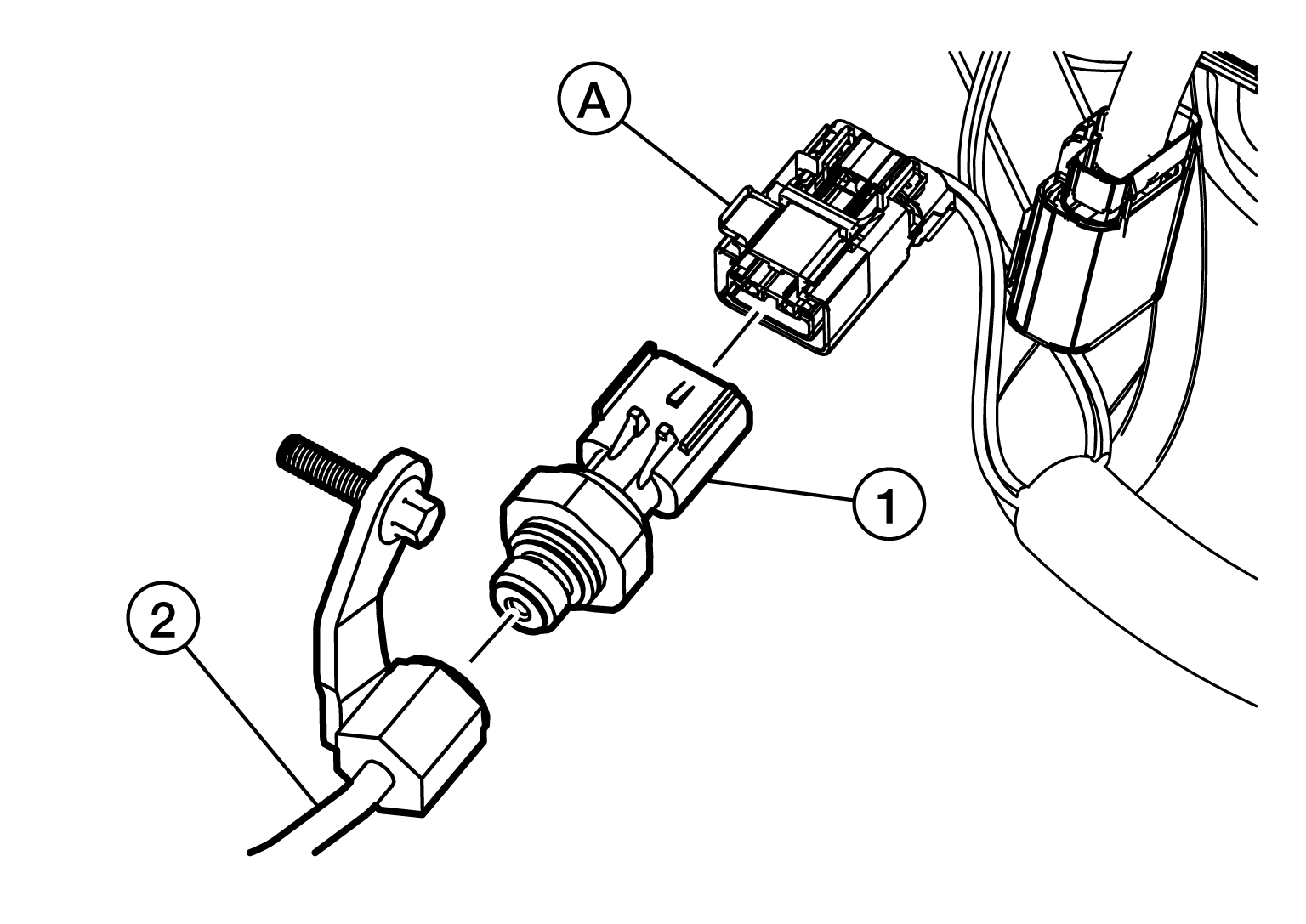

Gently slide the locking tab (A) on the connector sideways with a suitable tool and disconnect the harness connector.

Courtesy of NISSAN NORTH AMERICA, INC.
Use a suitable tool to remove the low-pressure turbocharger boost pressure sensor (1) from the low-pressure turbocharger boost pressure sensor tube (2).
CAUTION: To avoid damage, do not kink or bend fuel, lubrication air intake and exhaust tubing or lines. Ensure all tubes and lines are routed and installed properly and care is given during the disassembly and assembly process. Failure to do so can result in damage to the tubes, lines or surrounding components.
