Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid damage, do not kink or bend fuel, lubrication air intake and exhaust tubing or lines. Ensure all tubes and lines are routed and installed properly and care is given during the disassembly and assembly process. Failure to do so can result in damage to the tubes, lines or surrounding components.

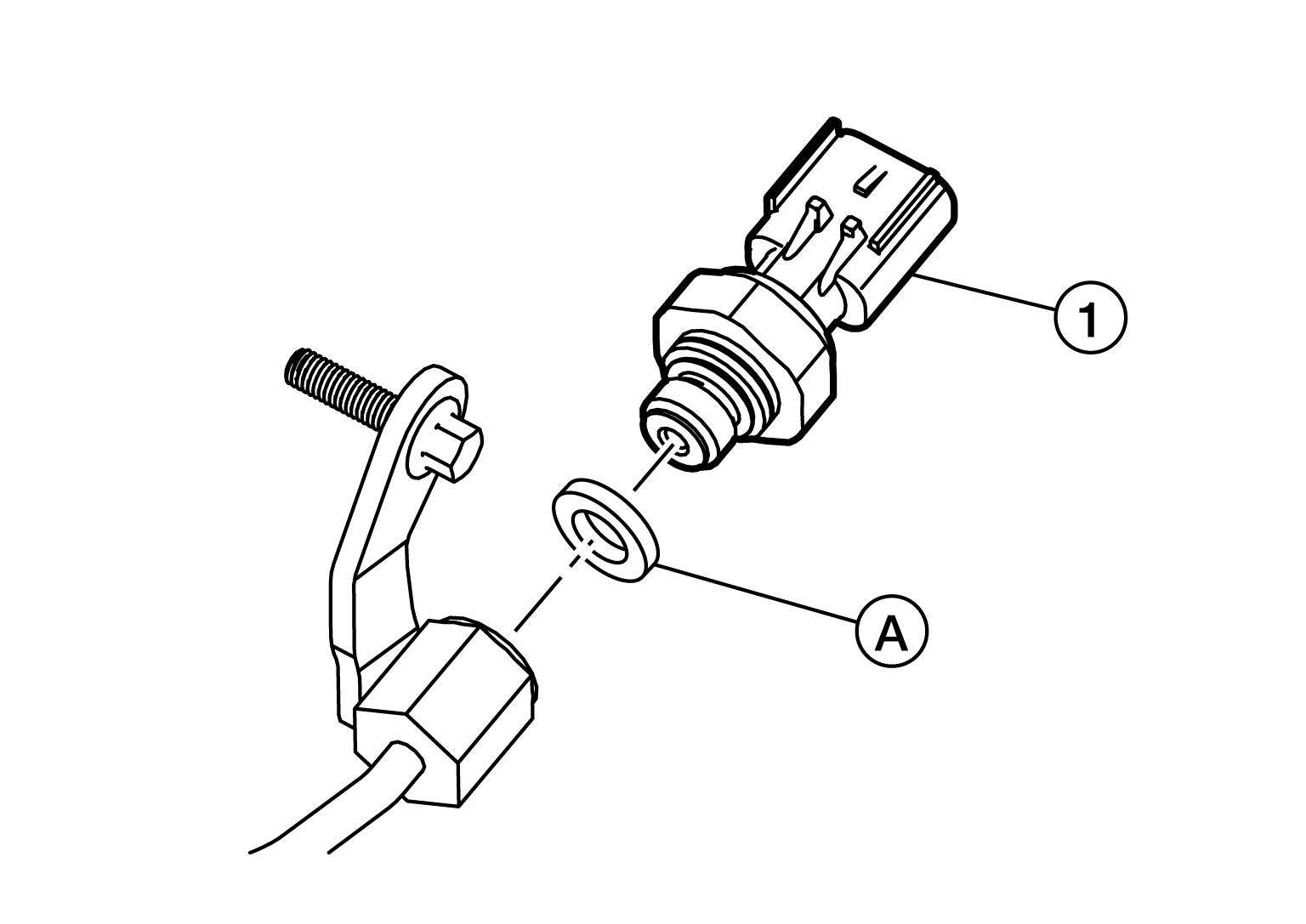

Make sure the low-pressure turbocharger boost pressure sensor (1) has an O-ring (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse O-ring.
Install the low-pressure turbocharger boost pressure sensor (1) into low-pressure turbocharger boost pressure sensor tube (2) and tighten the sensor.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Do not to overtighten the sensor.
Connect the low-pressure turbocharger boost pressure sensor harness connector and slide the locking tab (A).
