Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|

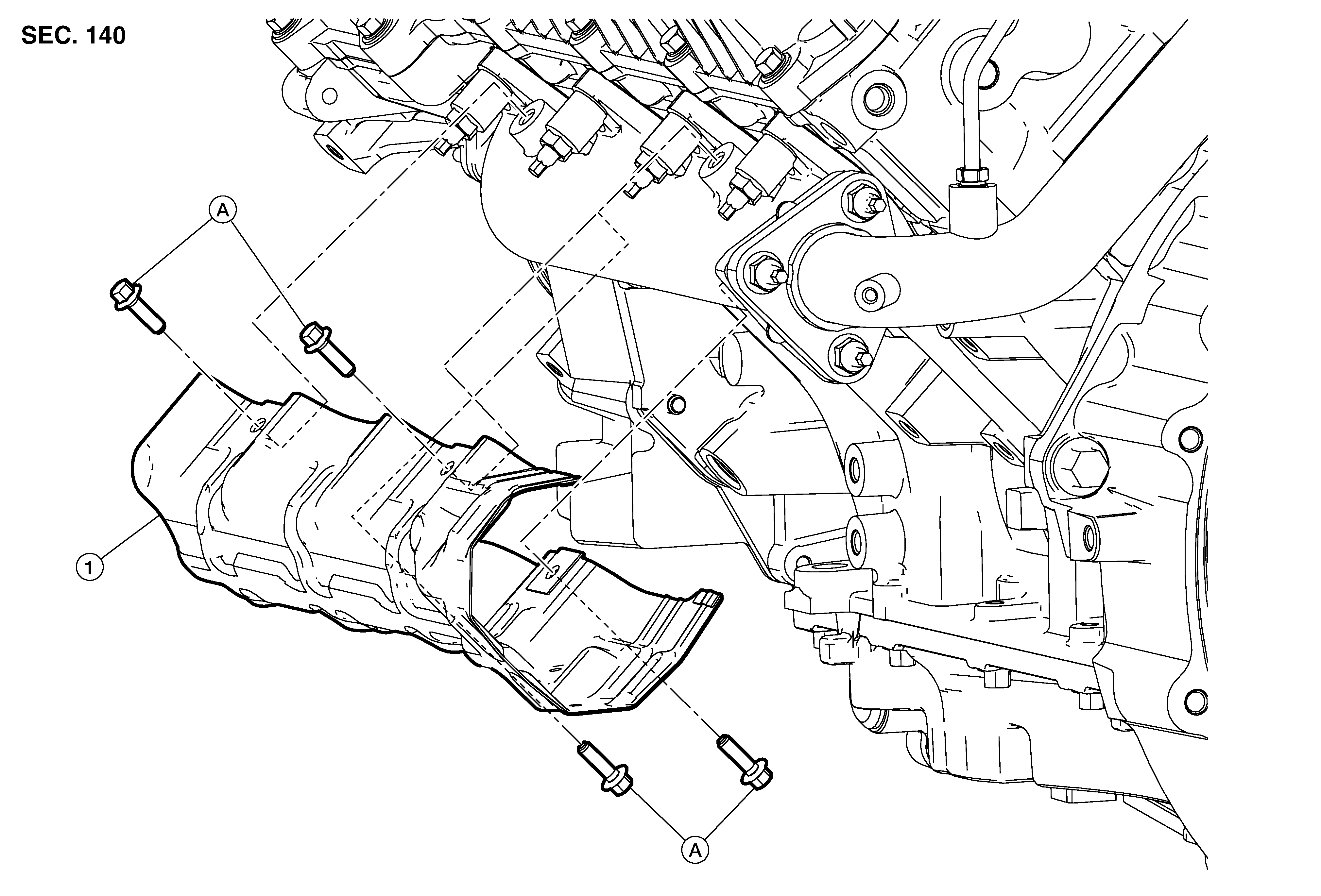

1. |
Exhaust manifold heat shield (bank 2) |
A. |
Refer to EXHAUST MANIFOLD HEAT SHIELD |
NOTE:
Bank 2 shown, bank 1 similar.
|

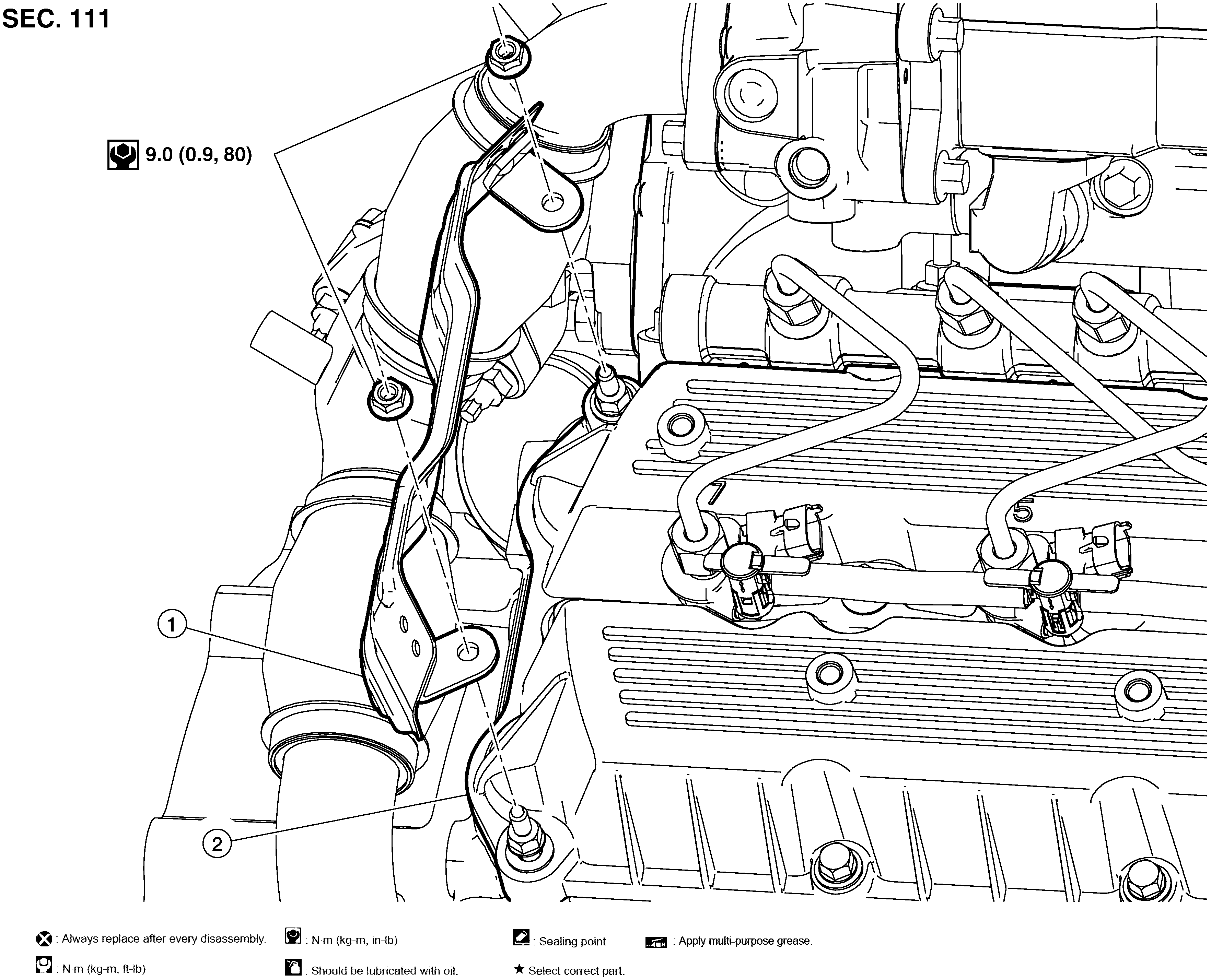

1. |
Rocker cover heat shield |
2. |
Rocker cover (bank 1) |
