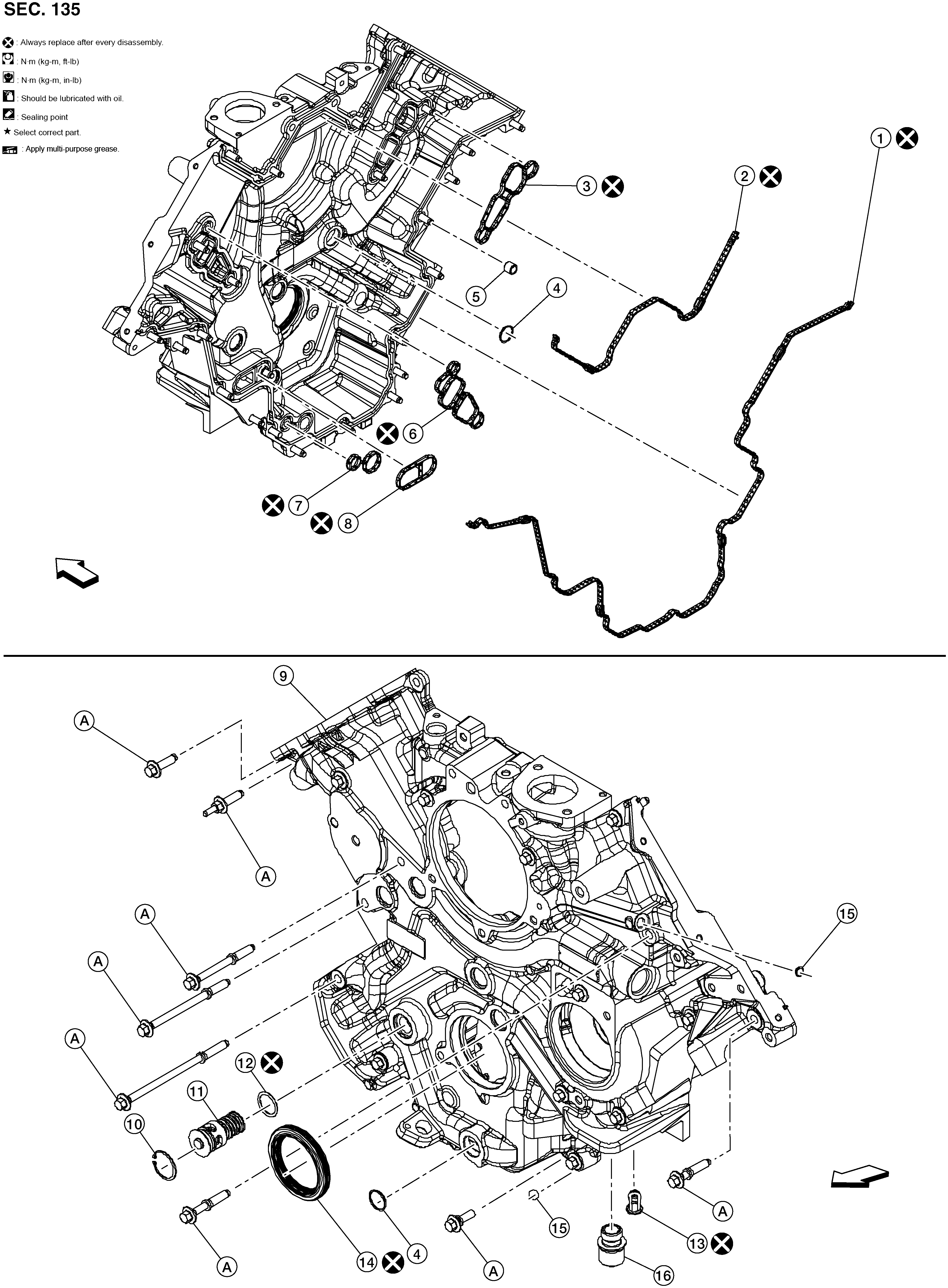

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front cover gasket A |
2. |
Front cover gasket B |
3. |
Front cover gasket C |
|
4. |
Welch plug |
5. |
Dowel |
6. |
Front cover gasket D |
|
7. |
Front cover gasket E |
8. |
Front cover gasket F |
9. |
Front cover |
|
10. |
Snap ring |
11. |
Oil thermostat |
12. |
O-ring |
|
13. |
Oil filter bypass valve |
14. |
Front oil seal |
15. |
Welch plug |
|
16. |
Oil filter head adapter |
A. |
Refer to INSTALLATION |
|
Front |
