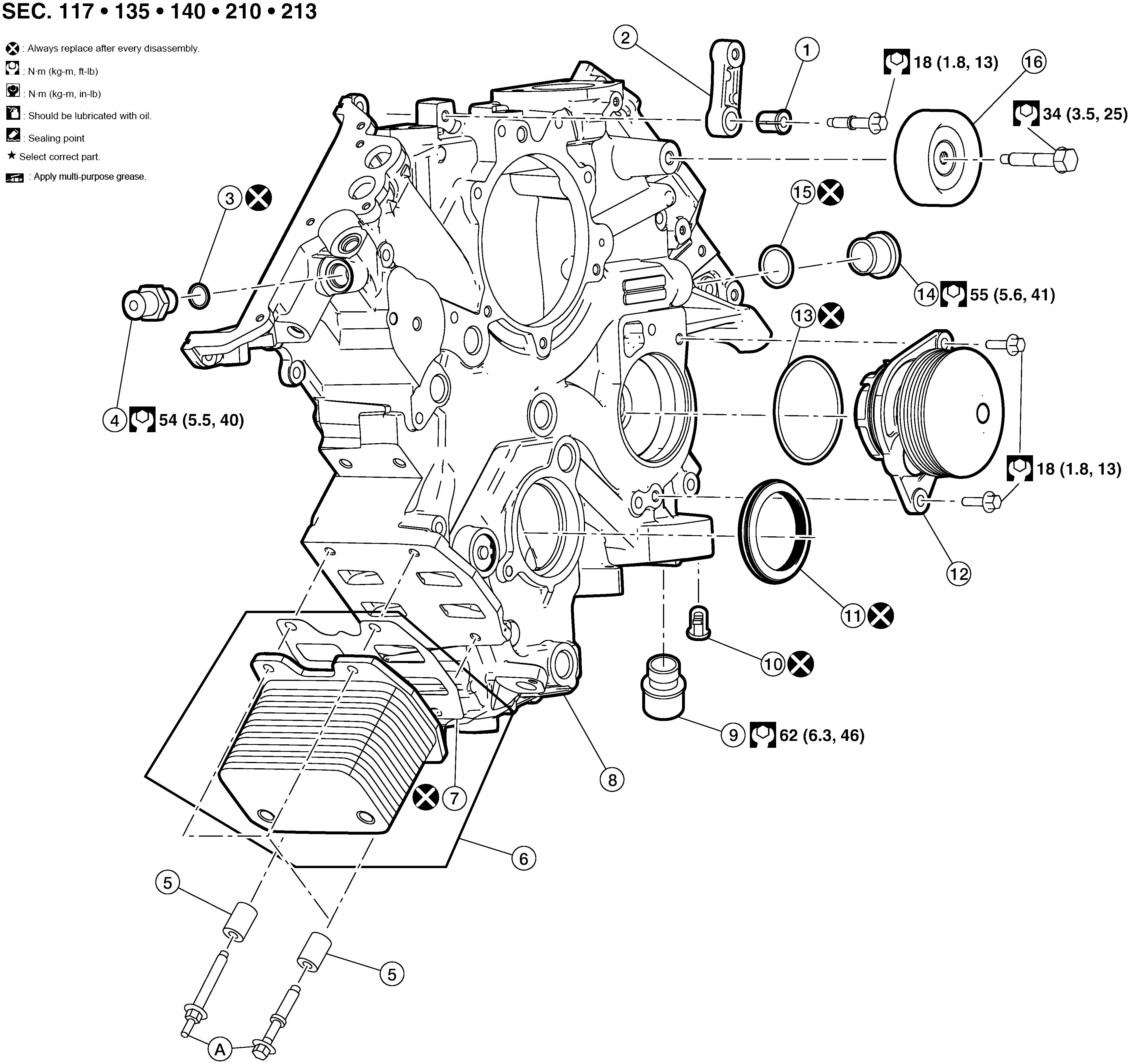

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Spacer |
2. |
Air intake connection bracket |
3. |
O-ring |
|
4. |
Coolant plumbing fitting |
5. |
Spacer |
6. |
Oil cooler |
|
7. |
Oil cooler gasket |
8. |
Front cover |
9. |
Oil filter head adapter |
|
10. |
Oil filter bypass valve |
11. |
Front oil seal |
12. |
Water pump |
|
13. |
O-ring |
14. |
Plug |
15. |
O-ring |
|
16. |
Idler pulley |
A. |
Refer to Removal and Installation . |
