Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the center heat shield. Refer to Removal and Installation .
- Remove the wheel and tire. Refer to Removal and Installation .
- Remove the fender protector (LH). Refer to Removal and Installation - Front Fender Protector .
- Use compressed air to clean around the fittings where the exhaust pressure sensor tube connects to the intake manifold.WARNING:
- When using compressed air for cleaning, to avoid the risk of personal injury from flying debris and dirt:
- Do not exceed 207 kPa (2.111 kg/cm 2 , 30 psi).
- Wear appropriate eye protection and protective clothing including gloves.
- When using high-pressure water or steam cleaning equipment, to avoid the risk of personal injury from flying debris and hot steam:
- Wear appropriate eye protection and protective clothing including gloves and a face shield.
NOTE: Apply a suitable penetrating oil to the exhaust gas pressure sensor tube connection at the exhaust transfer tube. - When using compressed air for cleaning, to avoid the risk of personal injury from flying debris and dirt:

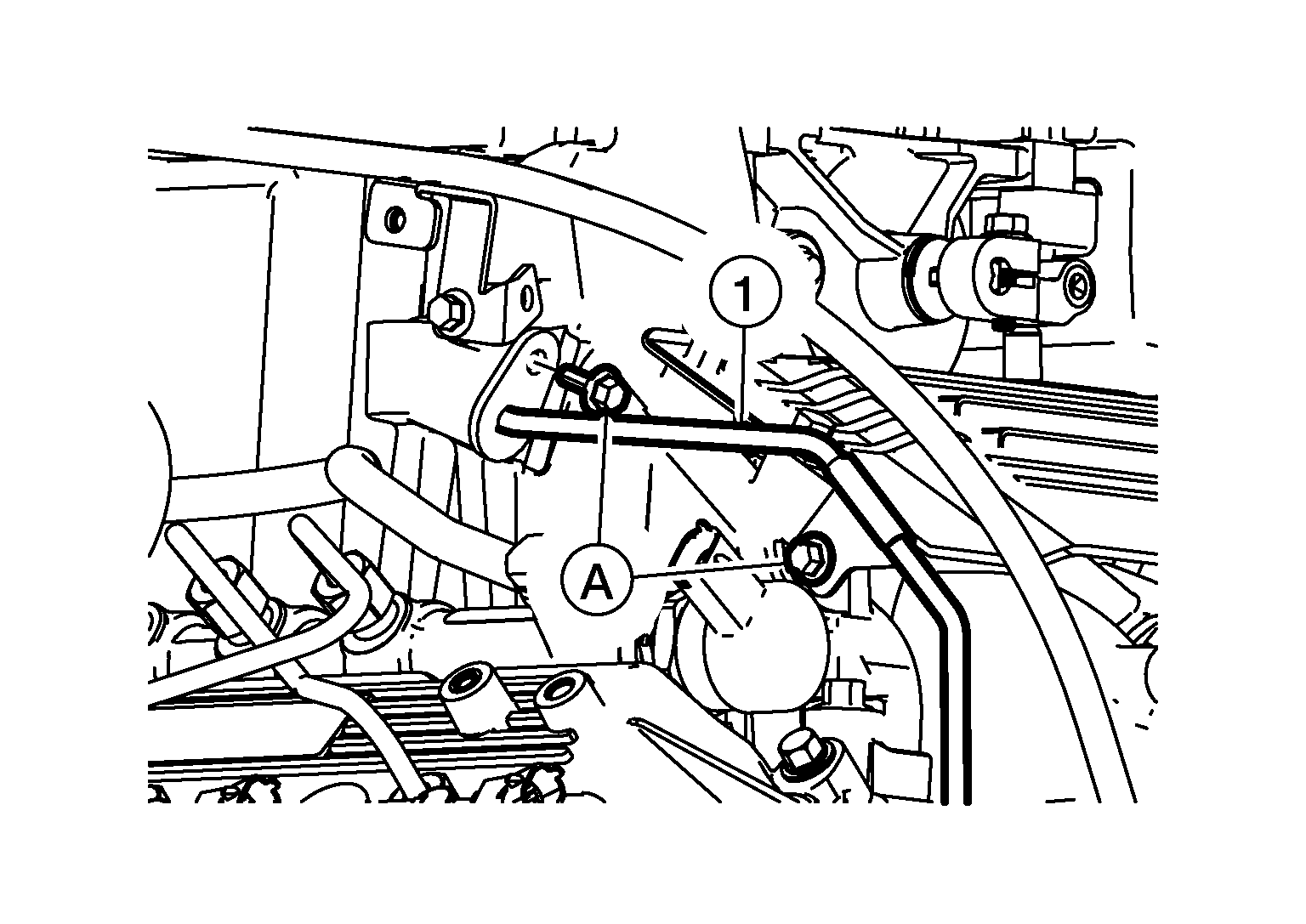

- Remove the bolts (A) connecting the exhaust pressure sensor tube (1) to the intake manifold.

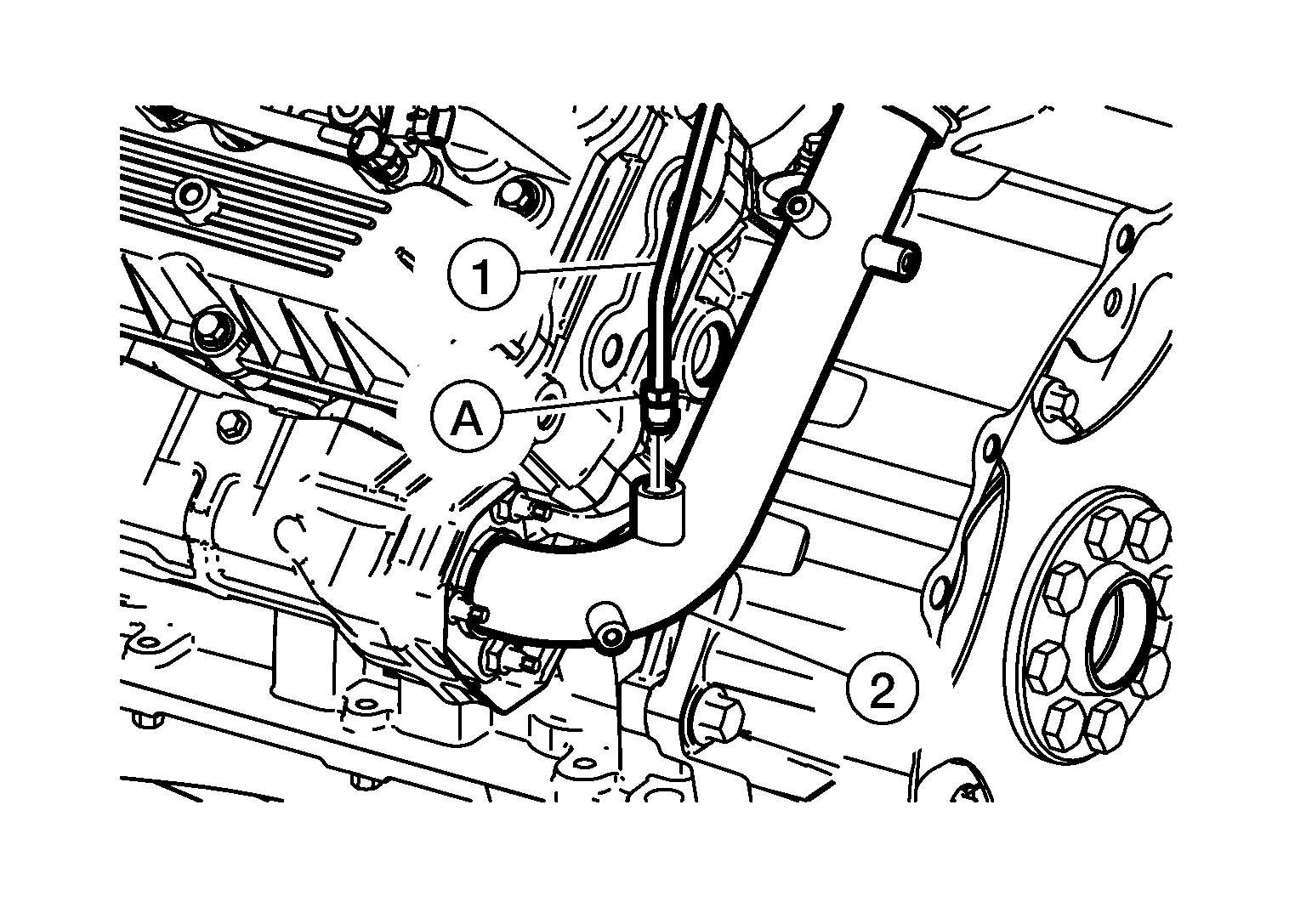

- Loosen nut (A) securing the exhaust pressure sensor tube (1) to the exhaust transfer tube [bank 2 (2)].
- Remove the exhaust pressure sensor tube (1).
