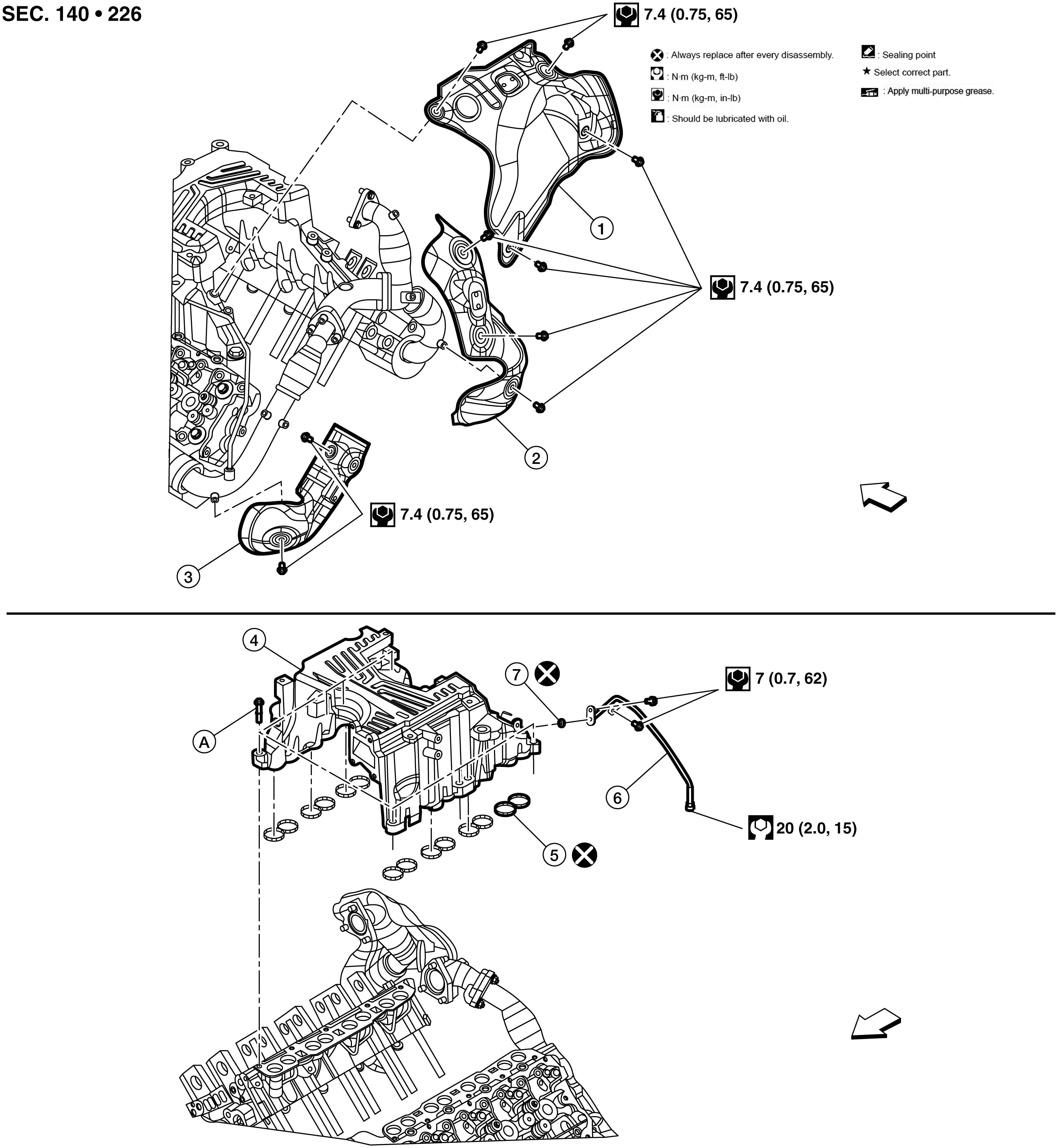

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Center heat shield |
2. |
Heat shield (RH) |
3. |
Heat shield (LH) |
|
4. |
Intake manifold |
5. |
Gasket |
6. |
Exhaust pressure sensor tube |
|
7. |
O-ring |
A. |
Refer to INSTALLATION |
|
Front |
