Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

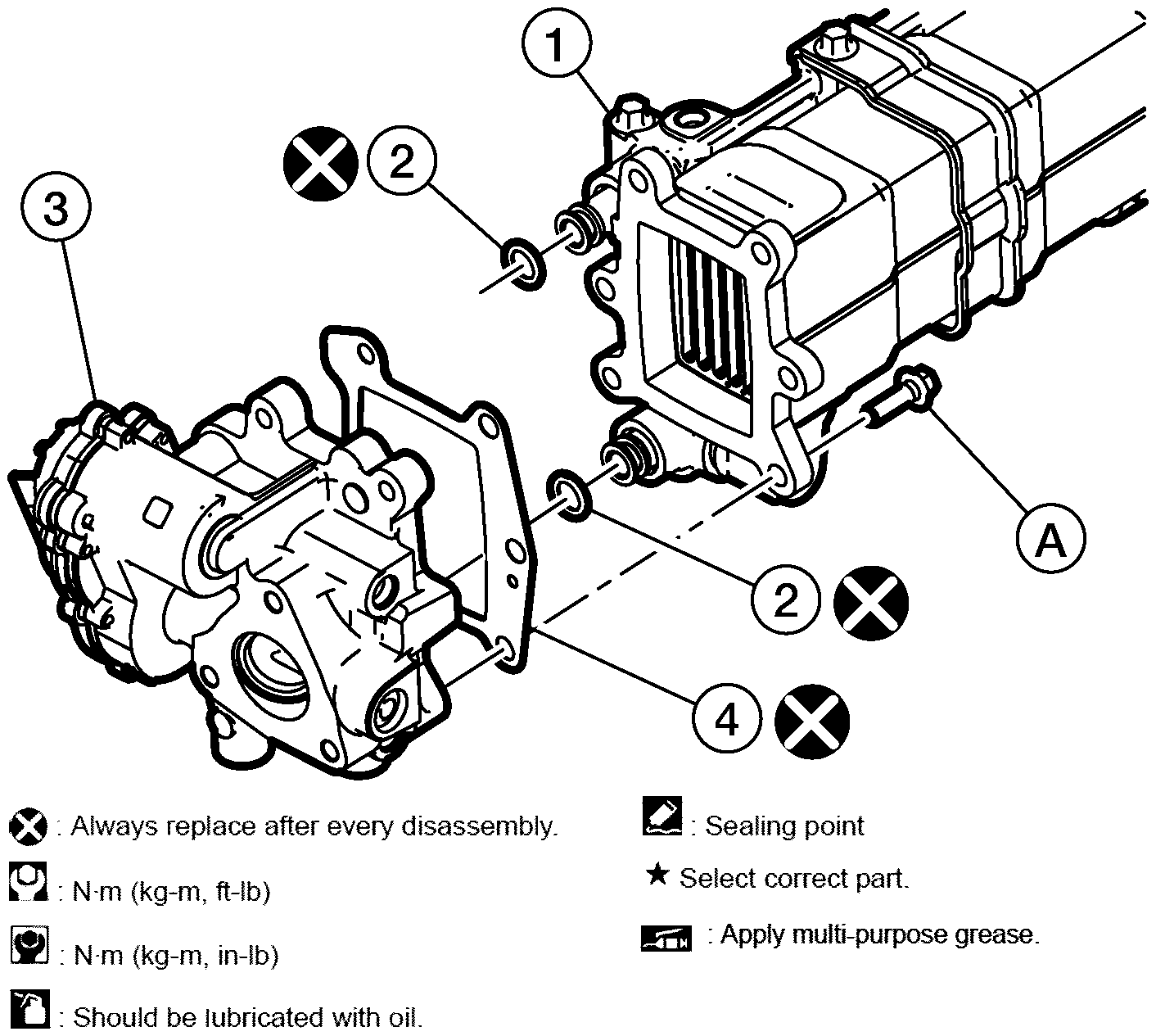

Install the EGR valve (3) and hand tighten the bolts (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the EGR valve gasket (4) or O-rings (2).

(1)	: EGR cooler assembly
(2)	: O-ring
(4)	: Gasket

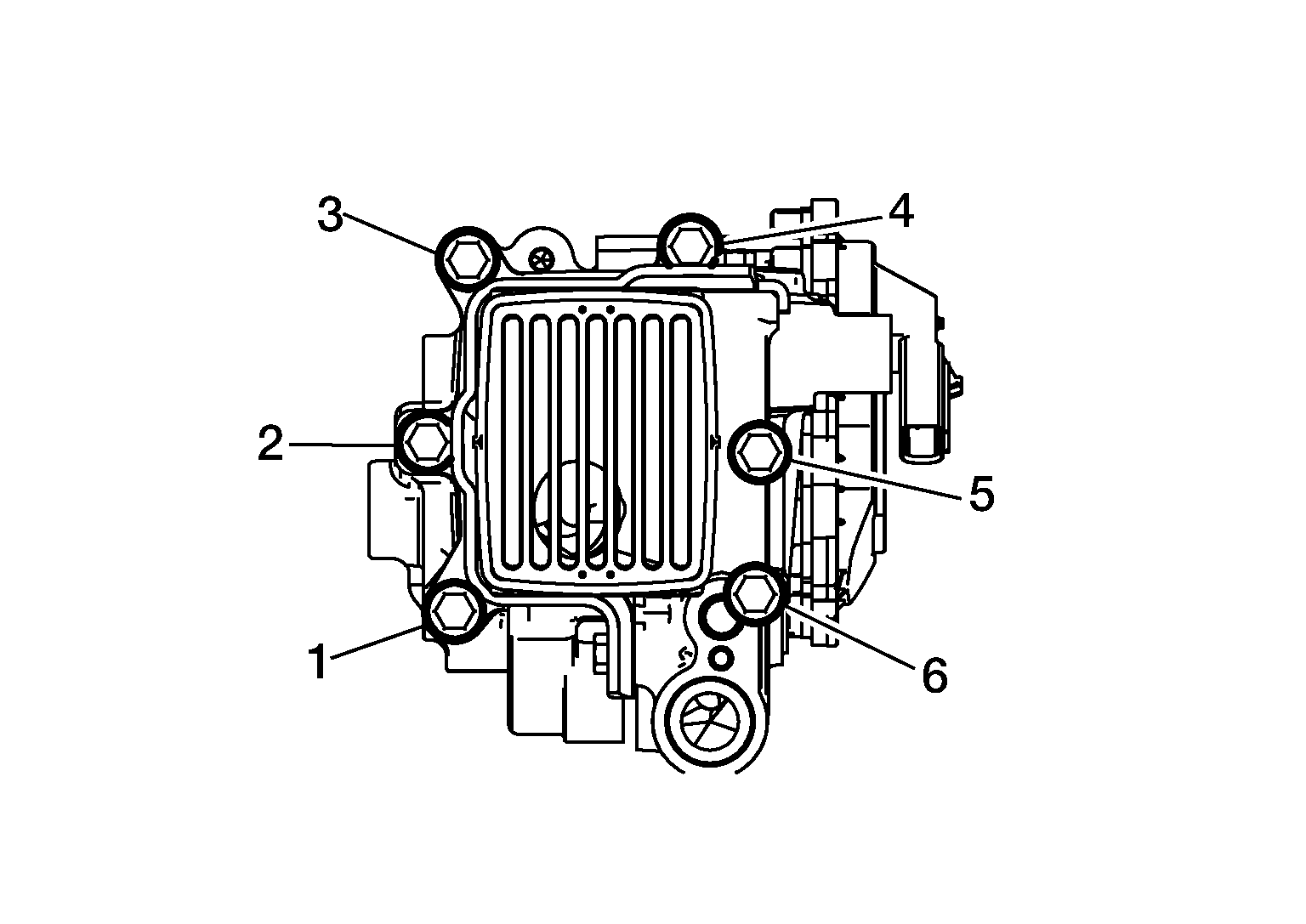

Tighten the bolts to specification in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Step 1	: 13 N.m (1.3 kg-m, 10 ft-lb)
Step 2	: 26 N.m (2.7 kg-m, 19 ft-lb)

Installation of the remaining components is in the reverse order of removal.
NOTE: Operate the engine and check for leaks.
