Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

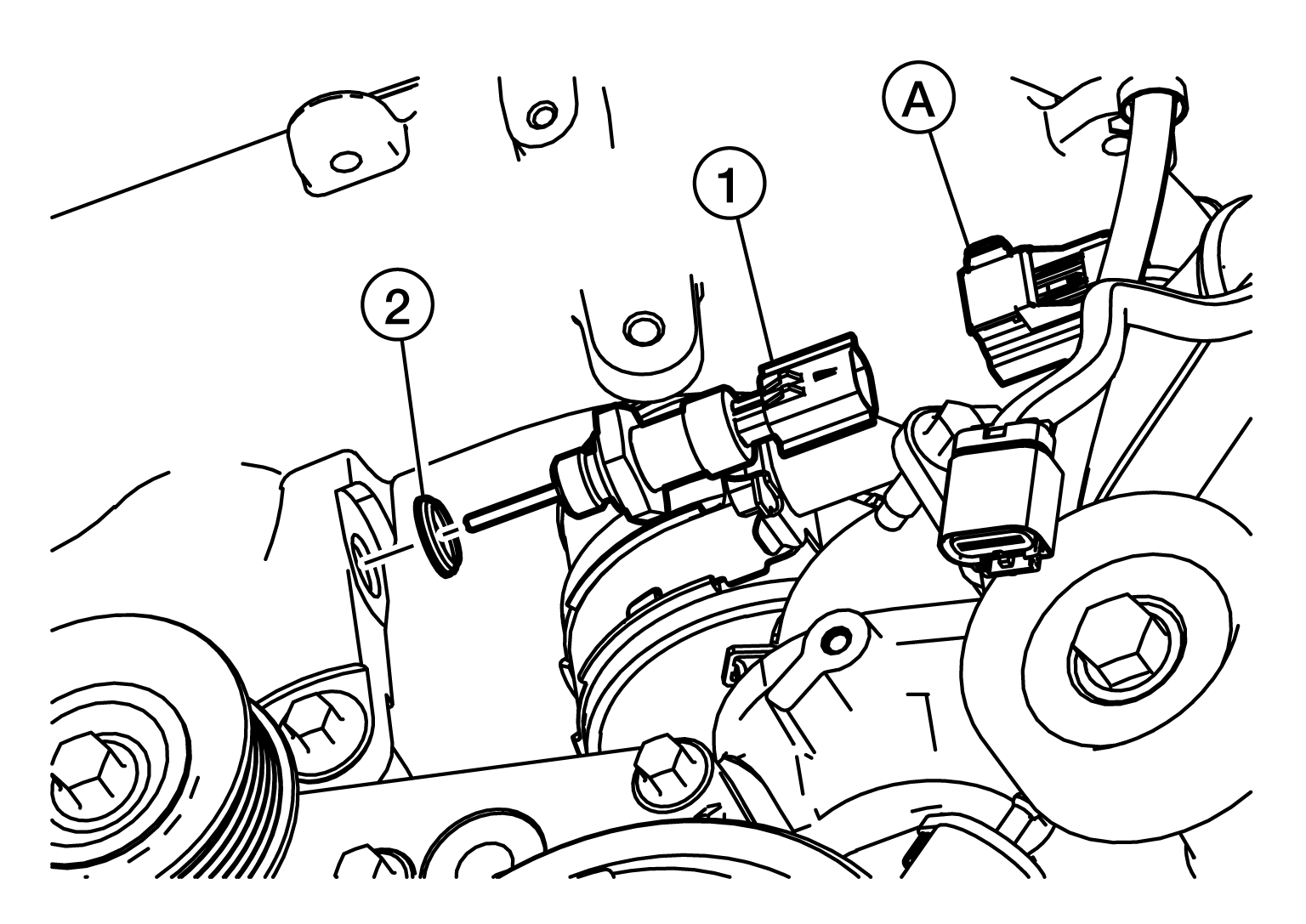

- Install the EGR temperature sensor (1).CAUTION:
- Tighten the EGR temperature sensor using a suitable, being careful not to overtighten the EGR temperature sensor.
- Do not reuse O-ring (2).
- Connect the EGR temperature sensor harness connector (A).
- Push the connectors together until they lock.

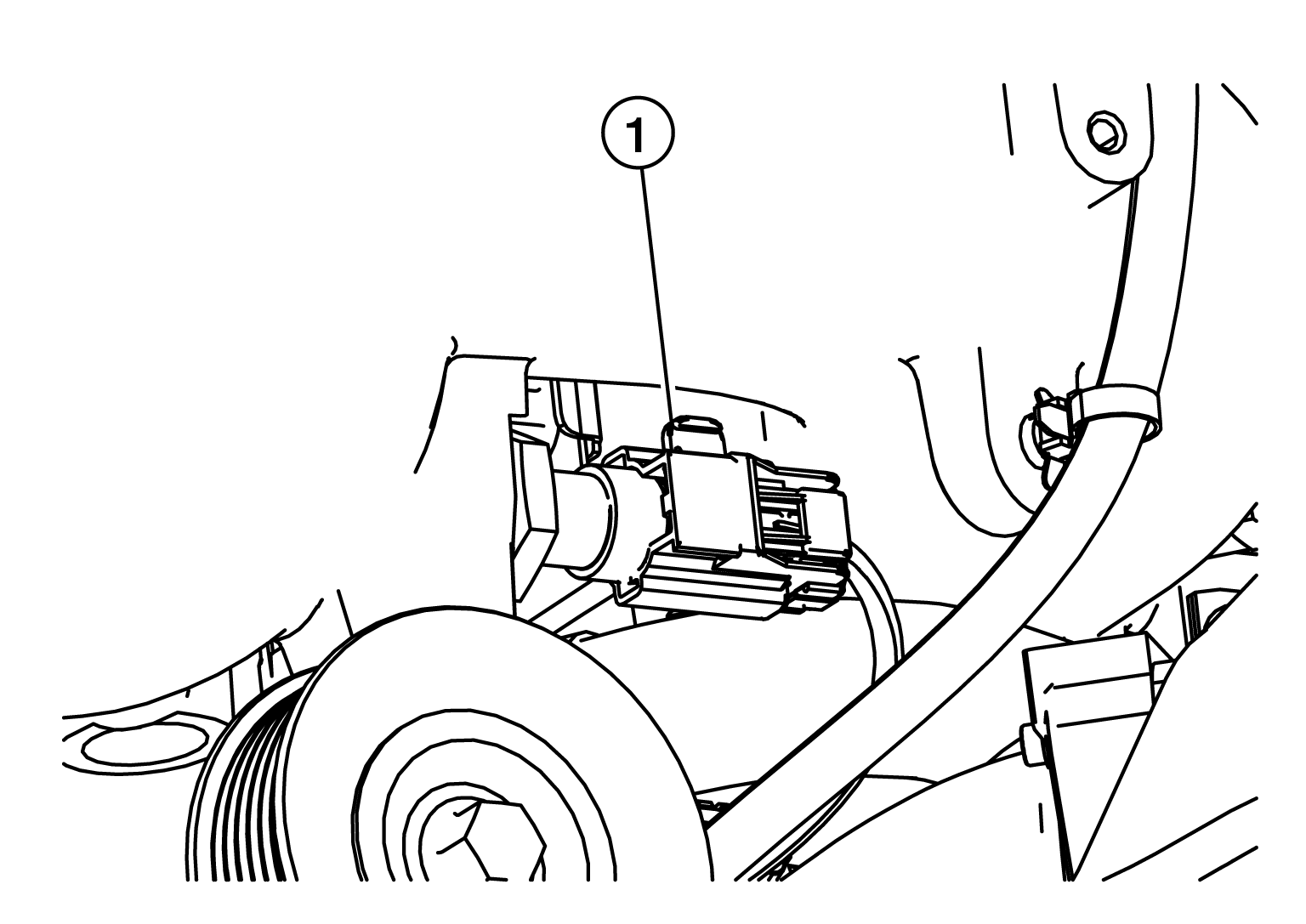

Slide the locking tab (1) to the lock position.
- Connect the battery or batteries. Refer to Battery Disconnect
.WARNING: Battery acid and battery acid fumes are extremely dangerous and can cause severe burns and explosion. To help reduce the risk of personal injury:
- Wear appropriate goggles and protective clothing.
- Always properly ventilate the area where the service is being performed.
- Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces.
- To avoid arcing, remove the negative (-) battery cable first and attach the negative (-) battery cable last.
- If acid contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
- Operate the engine and check for leaks.
