Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

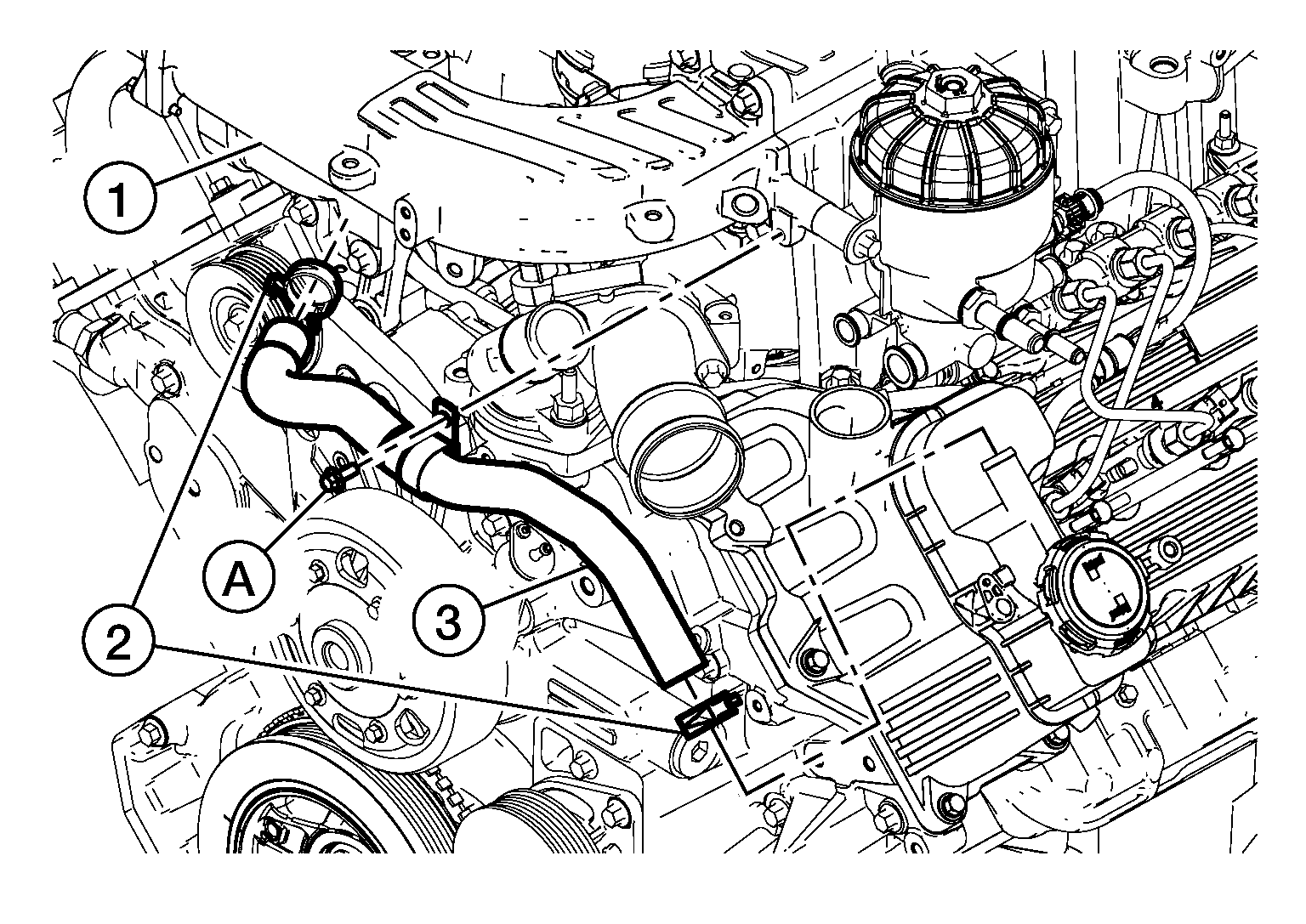

- Remove bolt (A) that secures the crankcase breather tube (3) to the air intake connection (1).
- Release clamps (2) and disconnect the crankcase breather tube from air inlet connection assembly and rocker cover (bank 2).
- Pull crankcase breather tube forward to remove it from underneath the intake manifold.
