Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When removing charge-air cooler, cover openings with a shop cloth or other suitable material.

Remove the radiator. Refer to Removal and Installation .

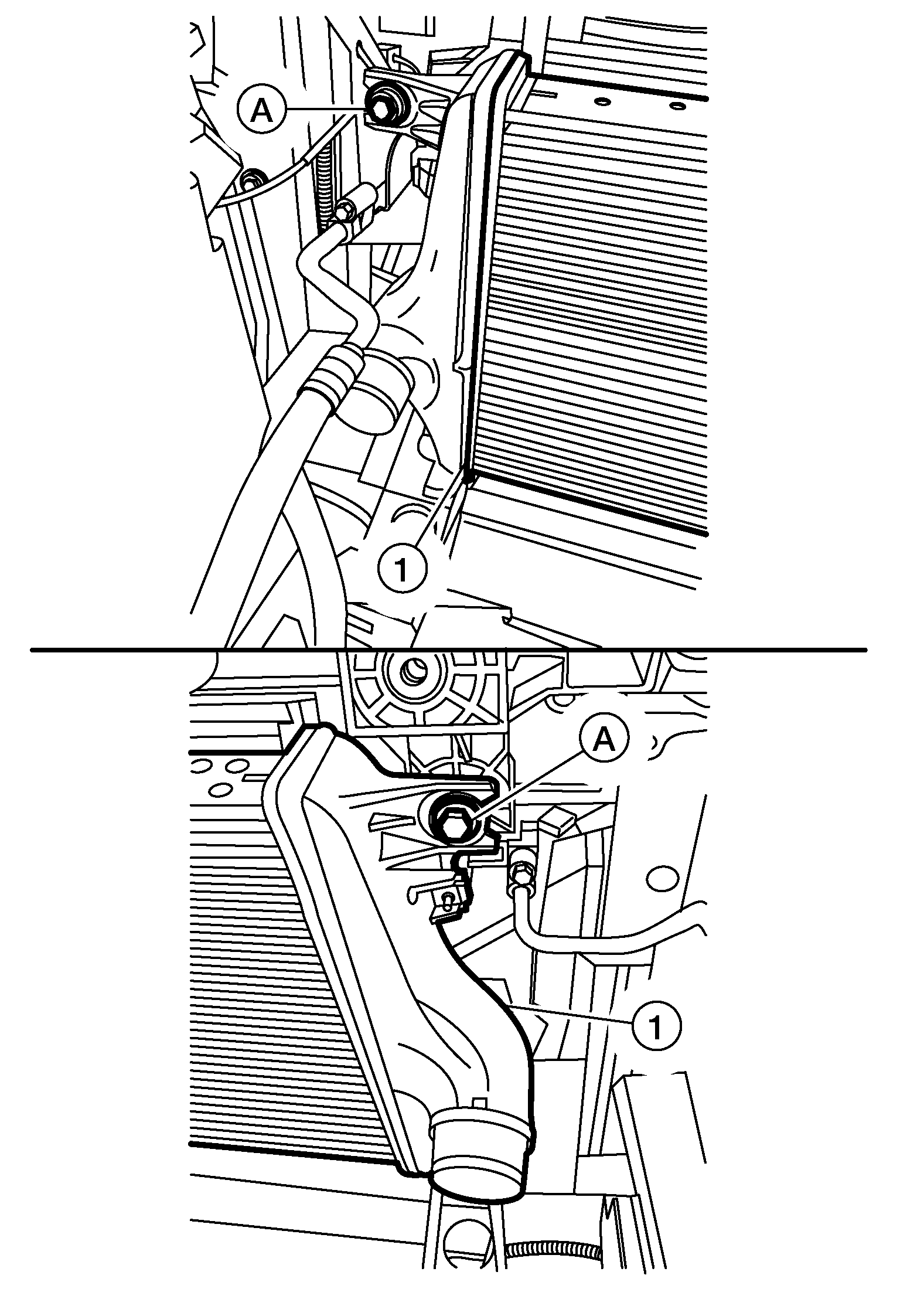

Remove the bolts (A) that secure the top of the charge-air cooler (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Discharge refrigerant. Refer to Leak Test .
Remove bolt and disconnect high-pressure pipe from condenser.
CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
Remove bolt and disconnect high-pressure flexible hose from condenser.
CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
Remove the charge-air cooler and condenser as an assembly.

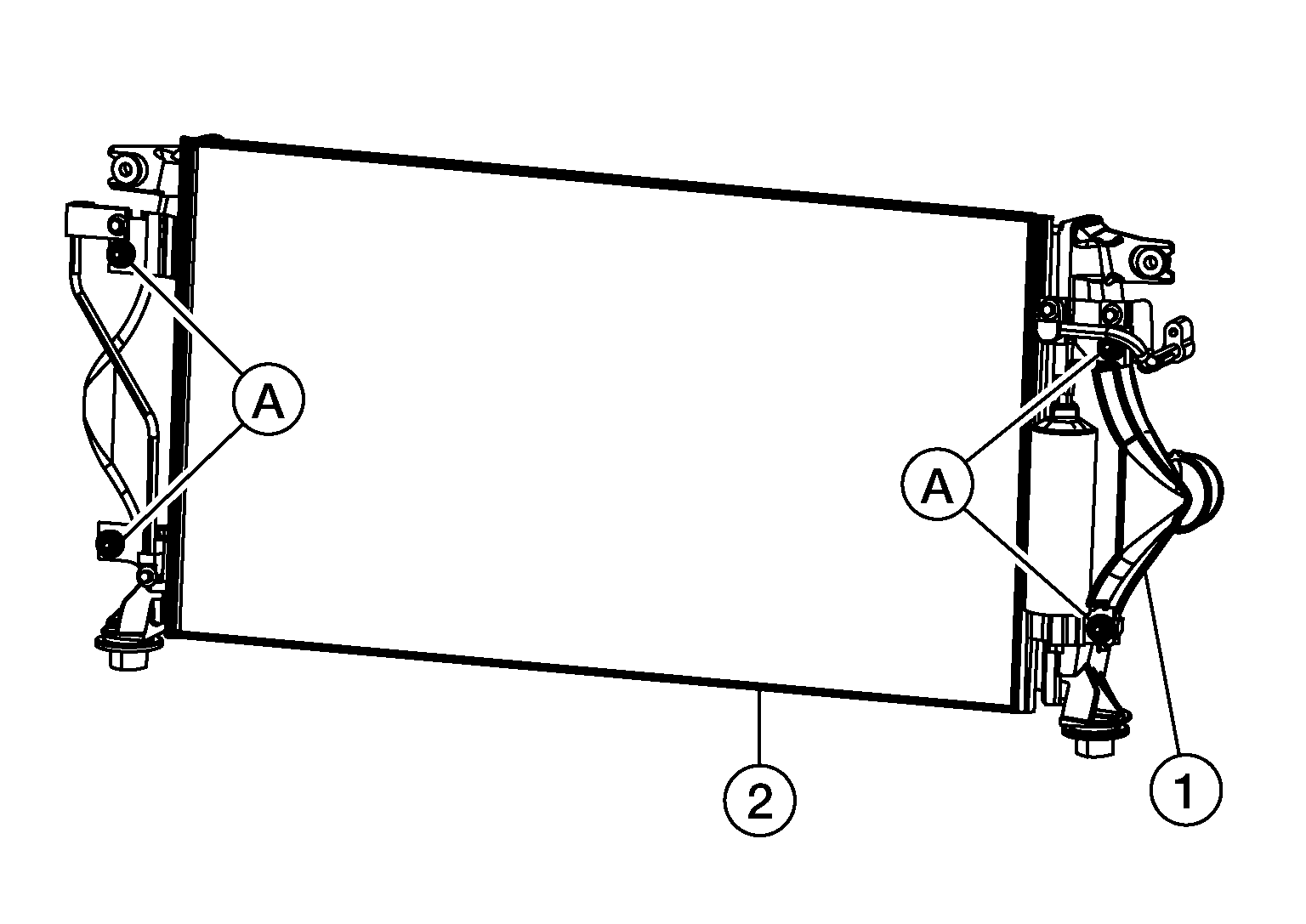

If necessary, remove bolts (A) and separate the charge-air cooler (1) from the condenser (2).

Courtesy of NISSAN NORTH AMERICA, INC.
