Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-rings.
Apply A/C oil to the O-ring of the high-pressure flexible hose for installation.
After charging refrigerant, check for leaks. Refer to Leak Test .

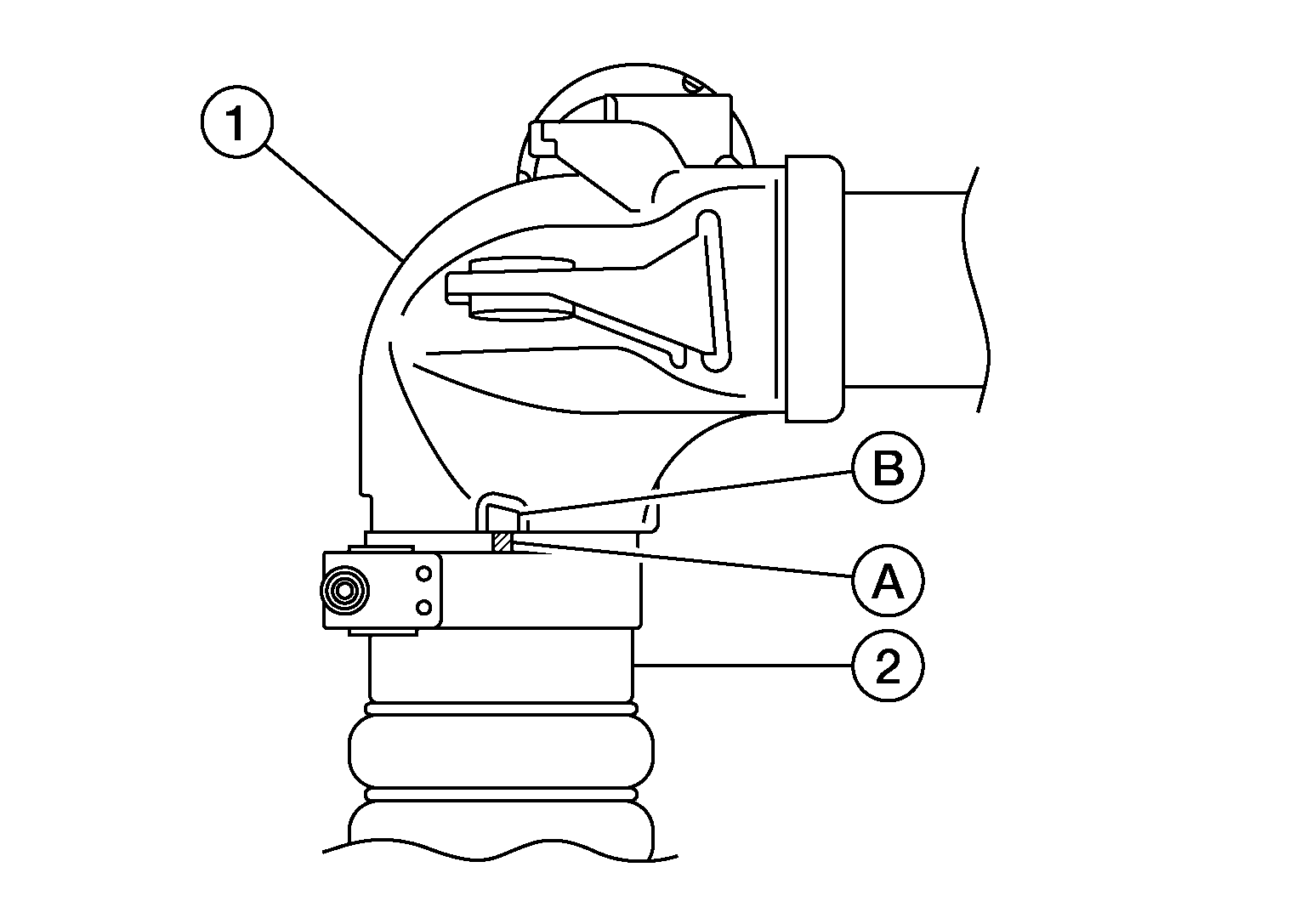

Align mating mark (A) on air inlet hose (1) to mating mark (B) on turbocharger compressor outlet connection (2).

Courtesy of NISSAN NORTH AMERICA, INC.

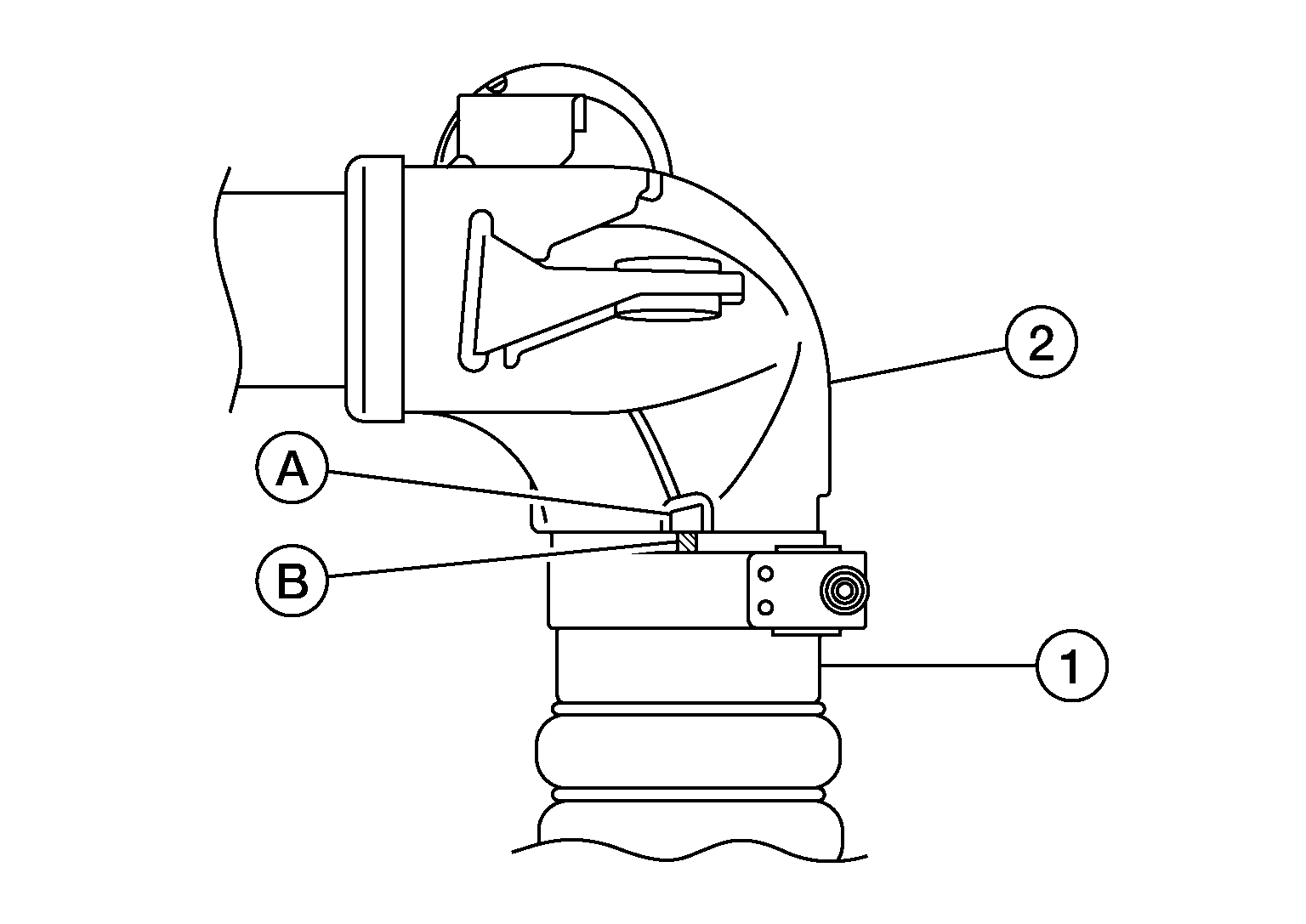

Align mating mark (A) on air inlet hose (2) to mating mark (B) on charge air cooler outlet connection (1).

Courtesy of NISSAN NORTH AMERICA, INC.

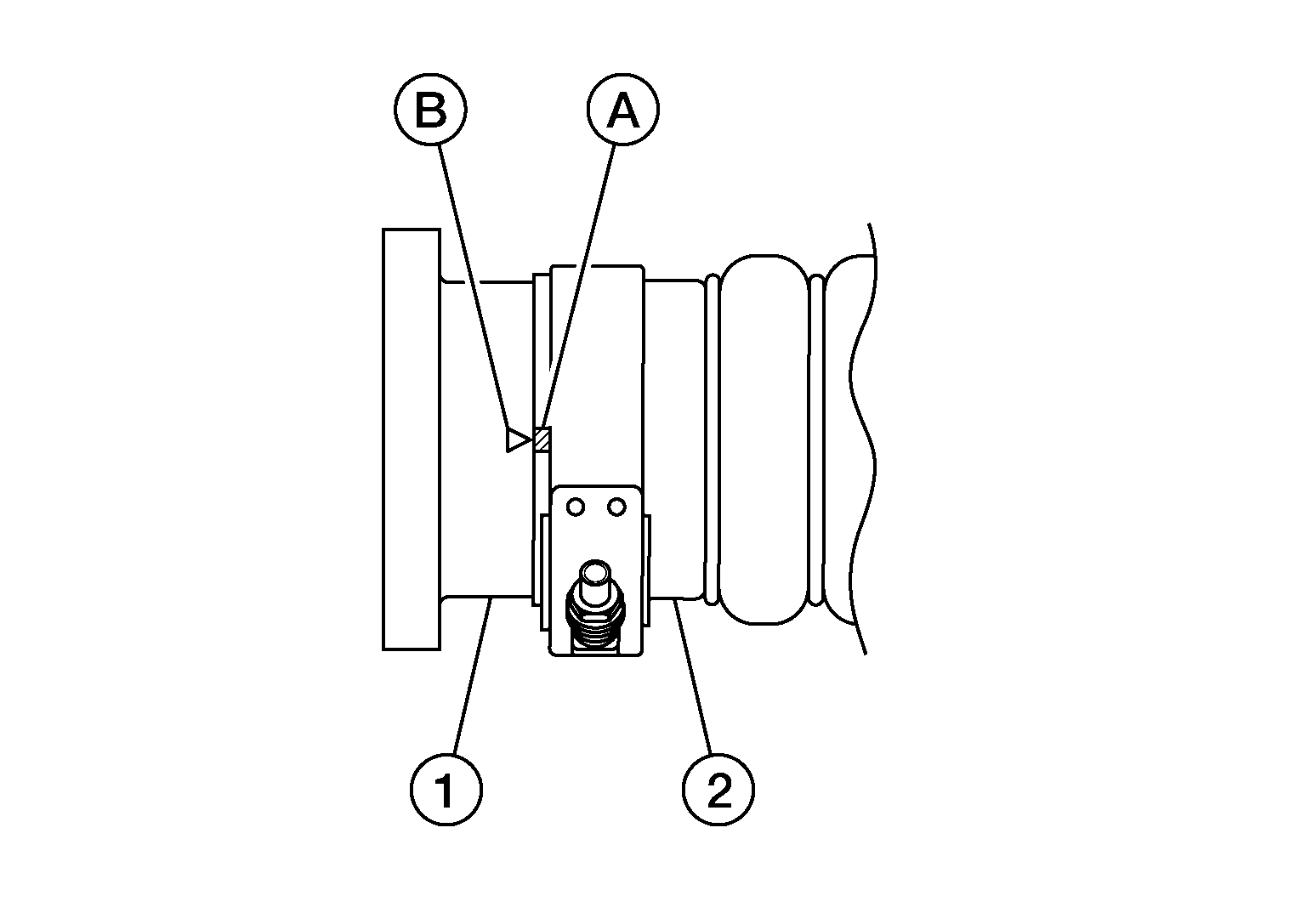

Align mating mark (B) on air outlet hose (1) to mating mark (A) on charge air cooler inlet connection (2).

Courtesy of NISSAN NORTH AMERICA, INC.

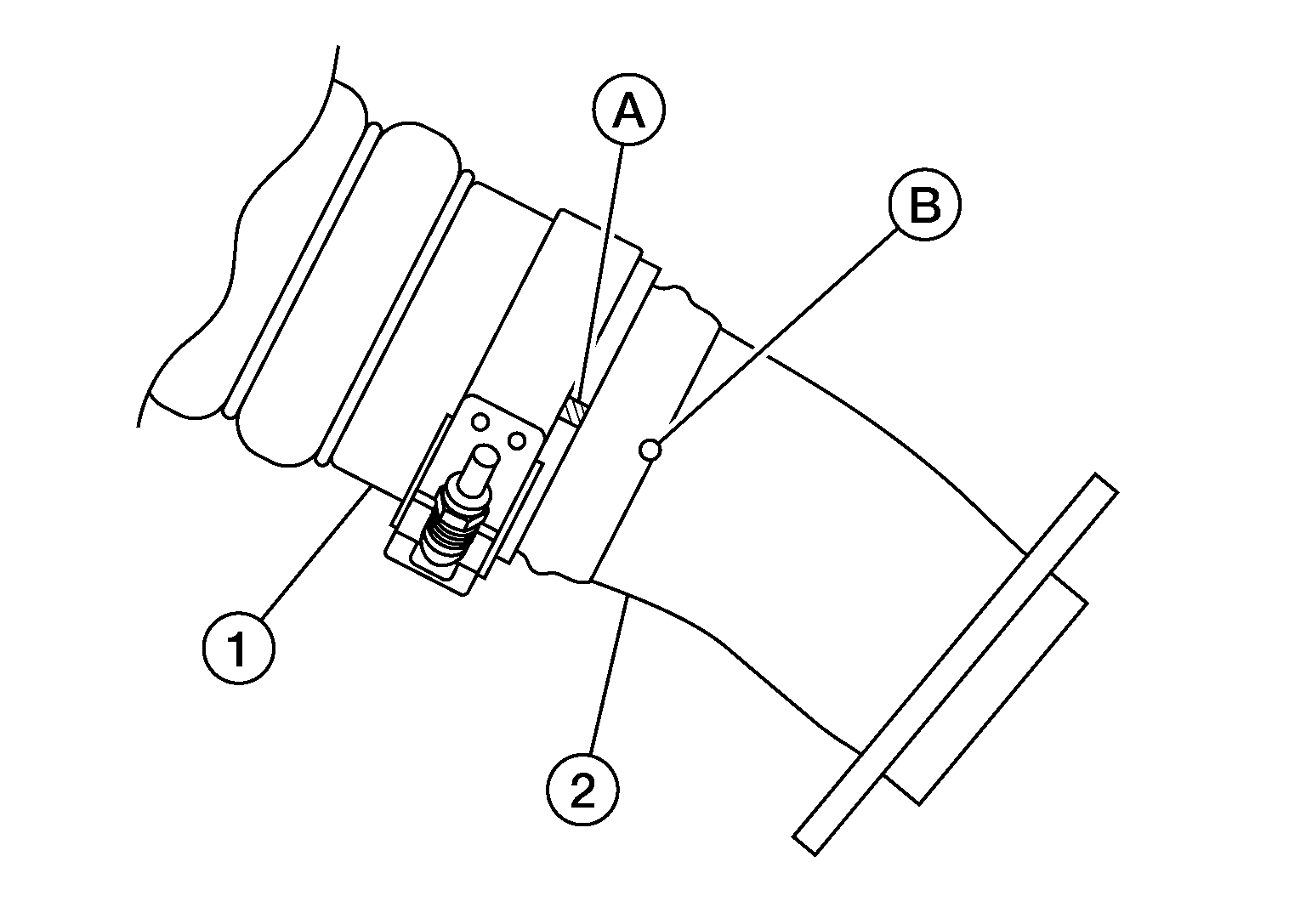

Align mating mark (A) on air outlet hose (2) to mating mark (B) on air intake connection adapter (1).

Courtesy of NISSAN NORTH AMERICA, INC.
