Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

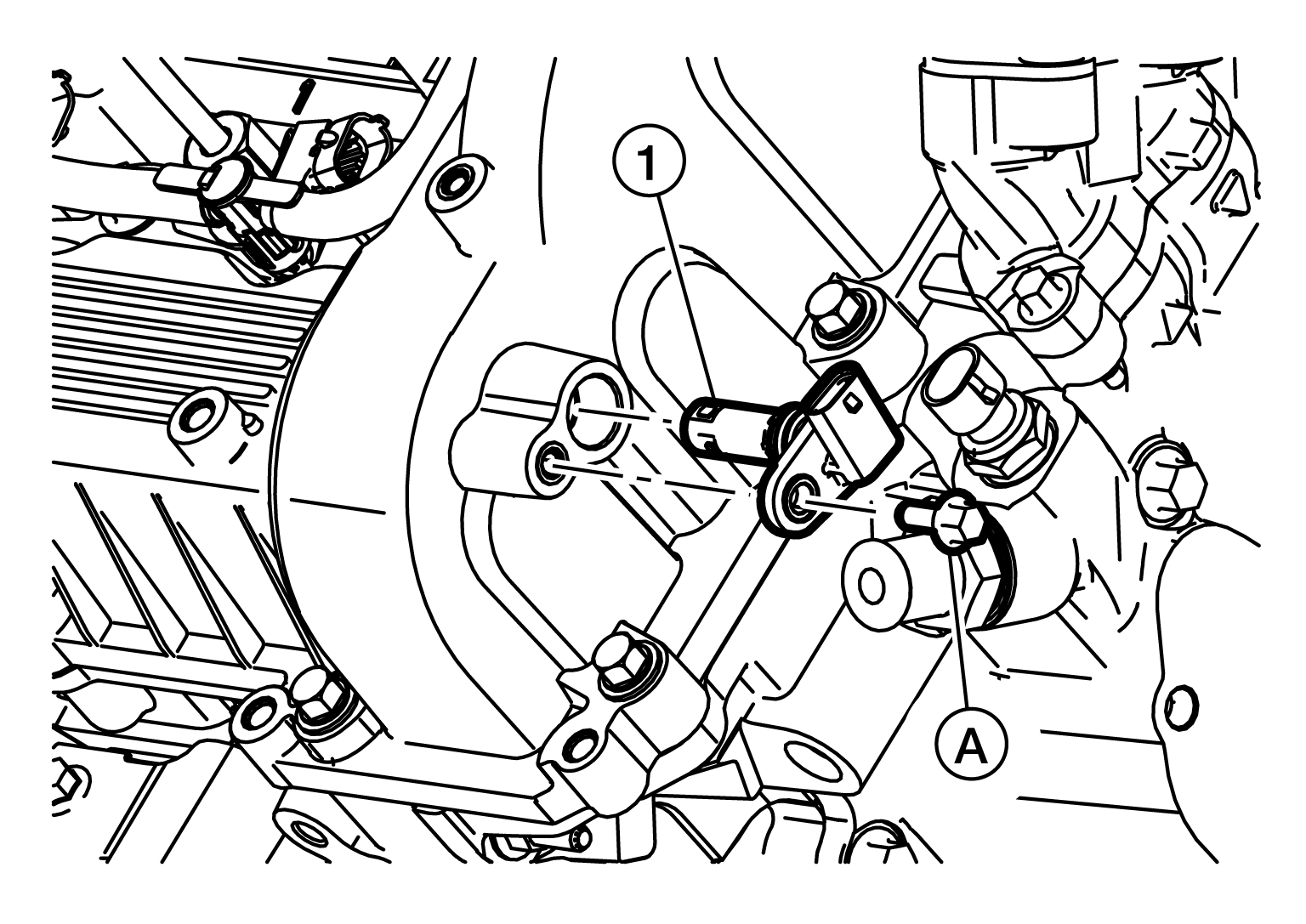

- Install the camshaft position sensor (1) by pressing firmly on the top of the sensor until the o-ring is fully seated.
- Install and tighten the bolt (A).

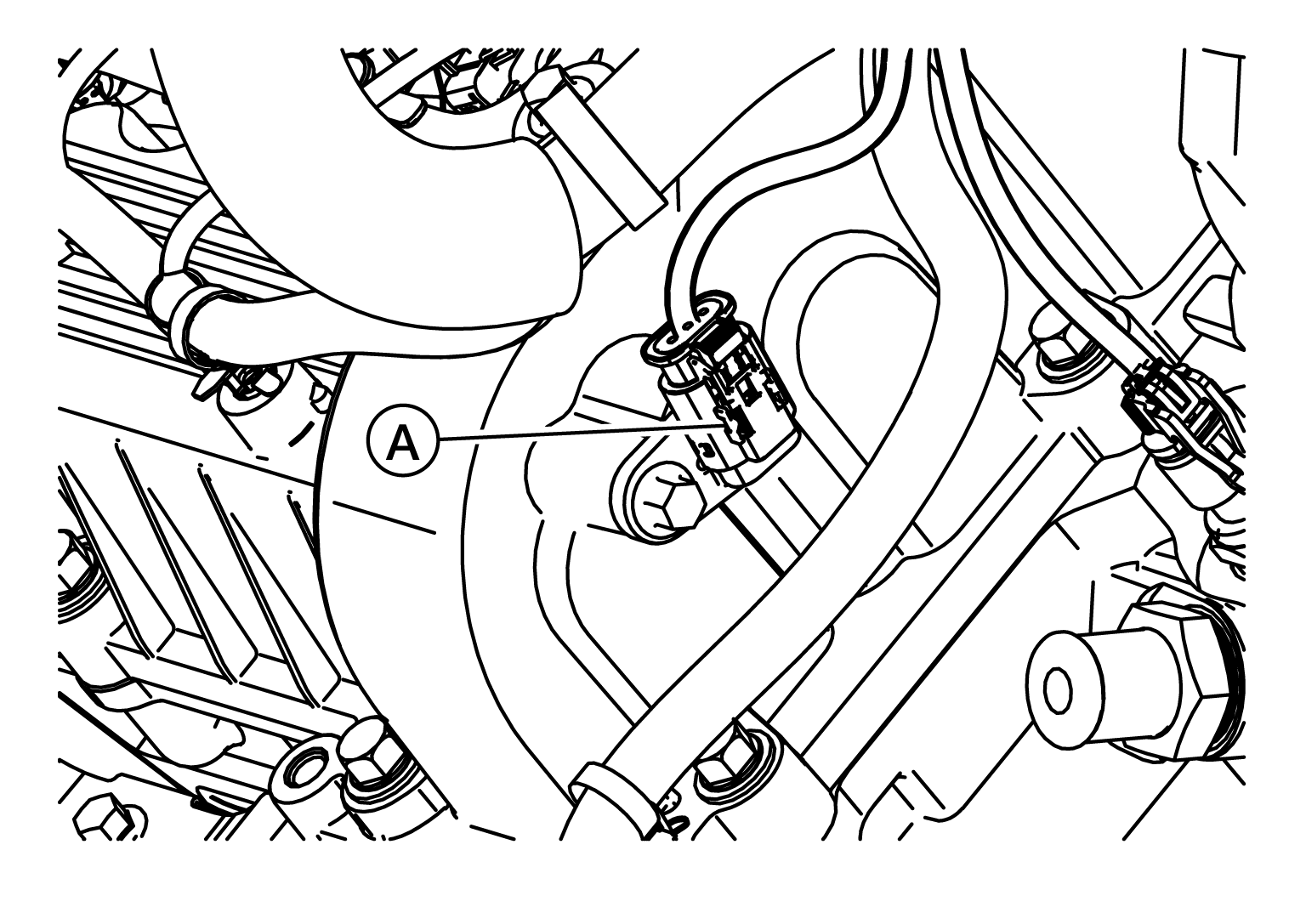

- Connect the harness connector to the camshaft position sensor.
- Push the connectors together until they lock.
- Slide the locking tab to the lock position (A).
- Connect the battery or batteries. Refer to Battery Disconnect
.WARNING: Battery acid and battery acid fumes are extremely dangerous and can cause severe burns and explosion. To help reduce the risk of personal injury;
- Wear appropriate goggles and protective clothing.
- Always properly ventilate the area where the service is being performed.
- Never allow battery fluid to come in contact with skin, eyes, fabrics or painted surfaces.
- To avoid arcing, remove the negative (-) battery cable first and attach the negative (-) battery cable last.
- If acid contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
- If the camshaft position sensor was replaced, in CONSULT click the Timing button on the Fuel or Timing System Table Reset screen in Work Support. Refer to CONSULT Function .
- Operate the engine and check for leaks.
