Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION: Do not reuse gaskets and O-rings.

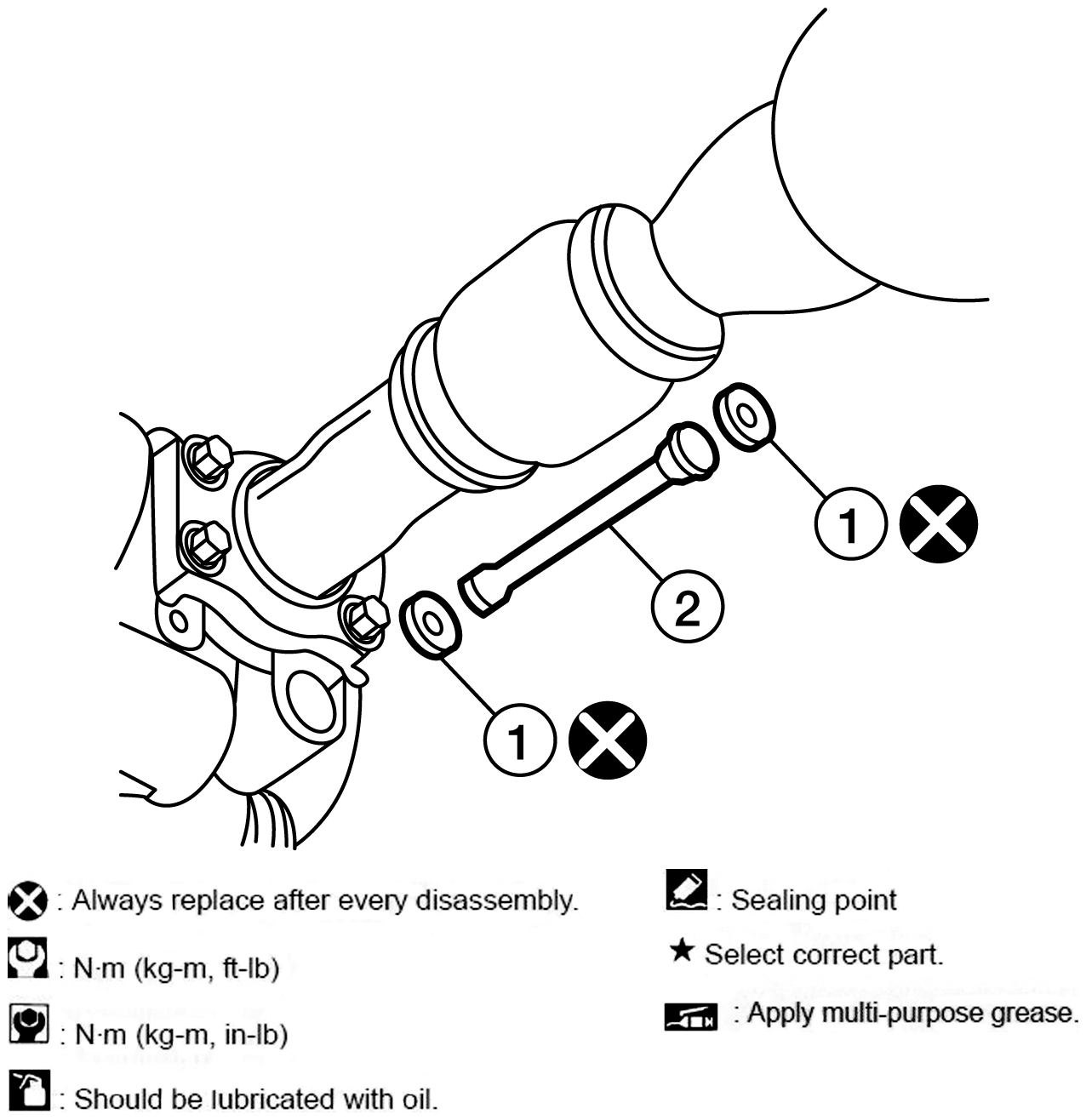

When installing the coolant tube (2), lubricate the O-rings (1) with a suitable water-based lubricant.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the O-rings.

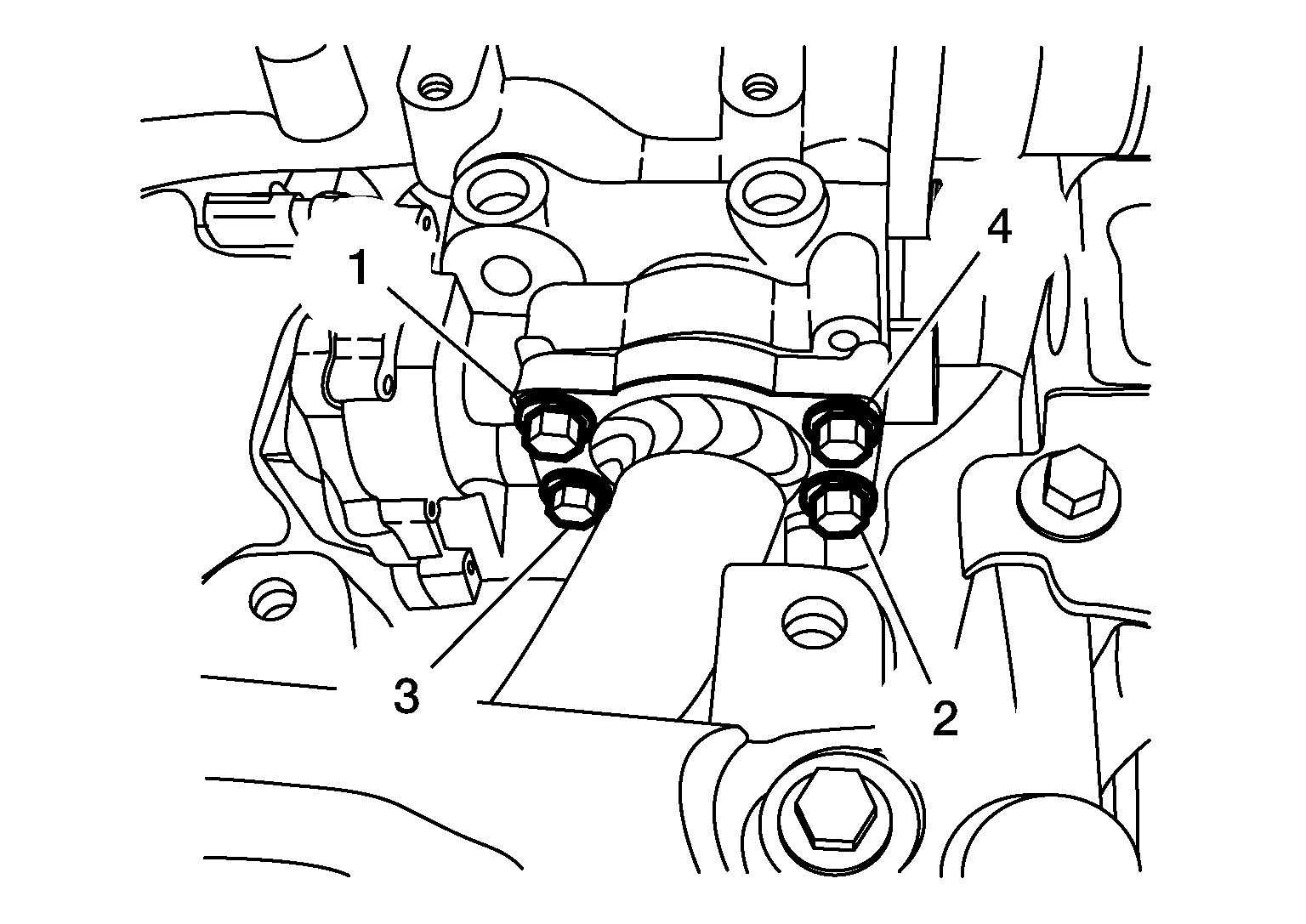

Tighten the EGR bypass valve bolts to the specified torque in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolts

: 18 N.m (1.8 kg-m, 13 ft-lb)

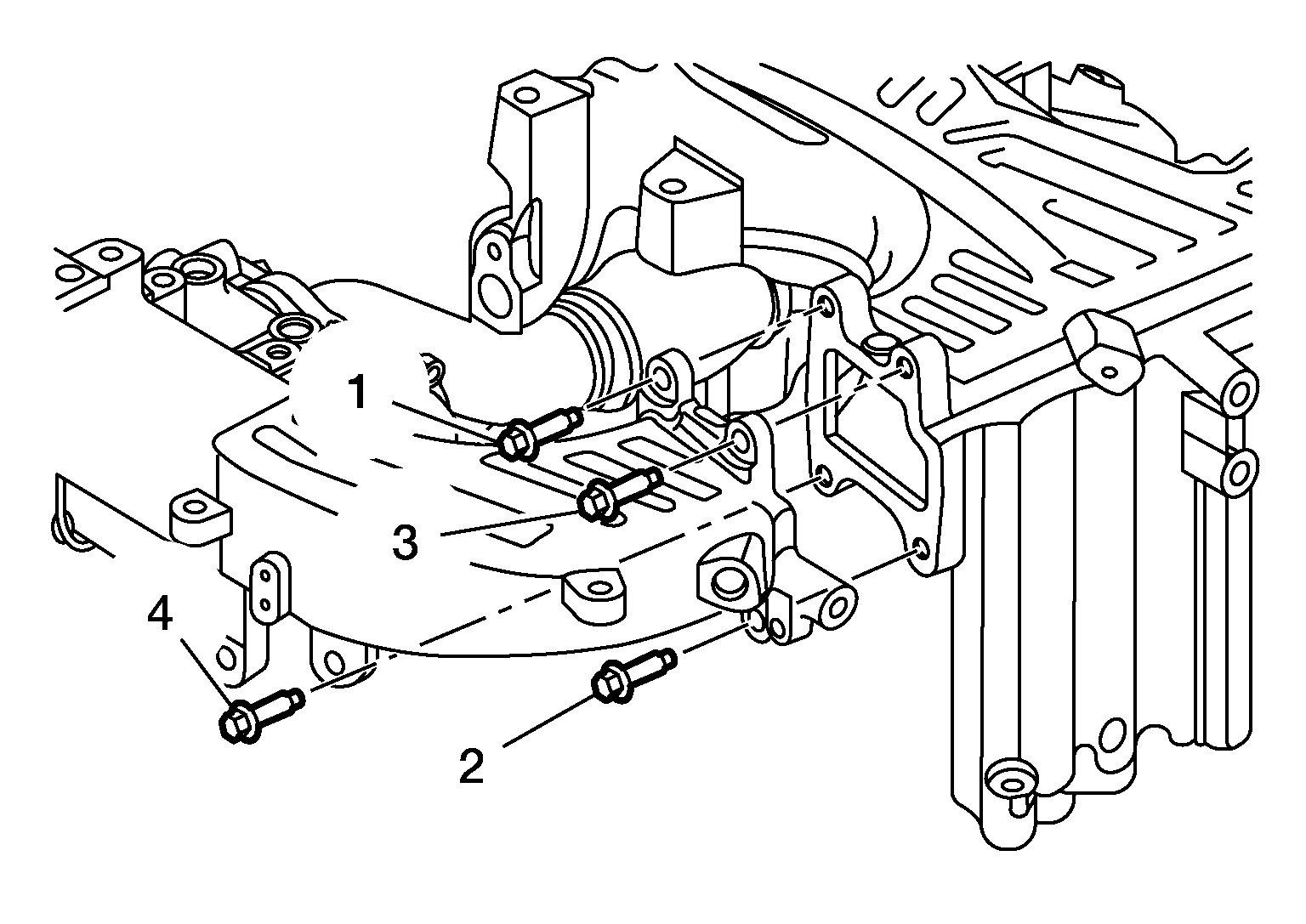

Tighten air intake connection bolts to the specified torque in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolts

: 18 N.m (1.8 kg-m, 13 ft-lb)

Operate the engine and check for leaks.
