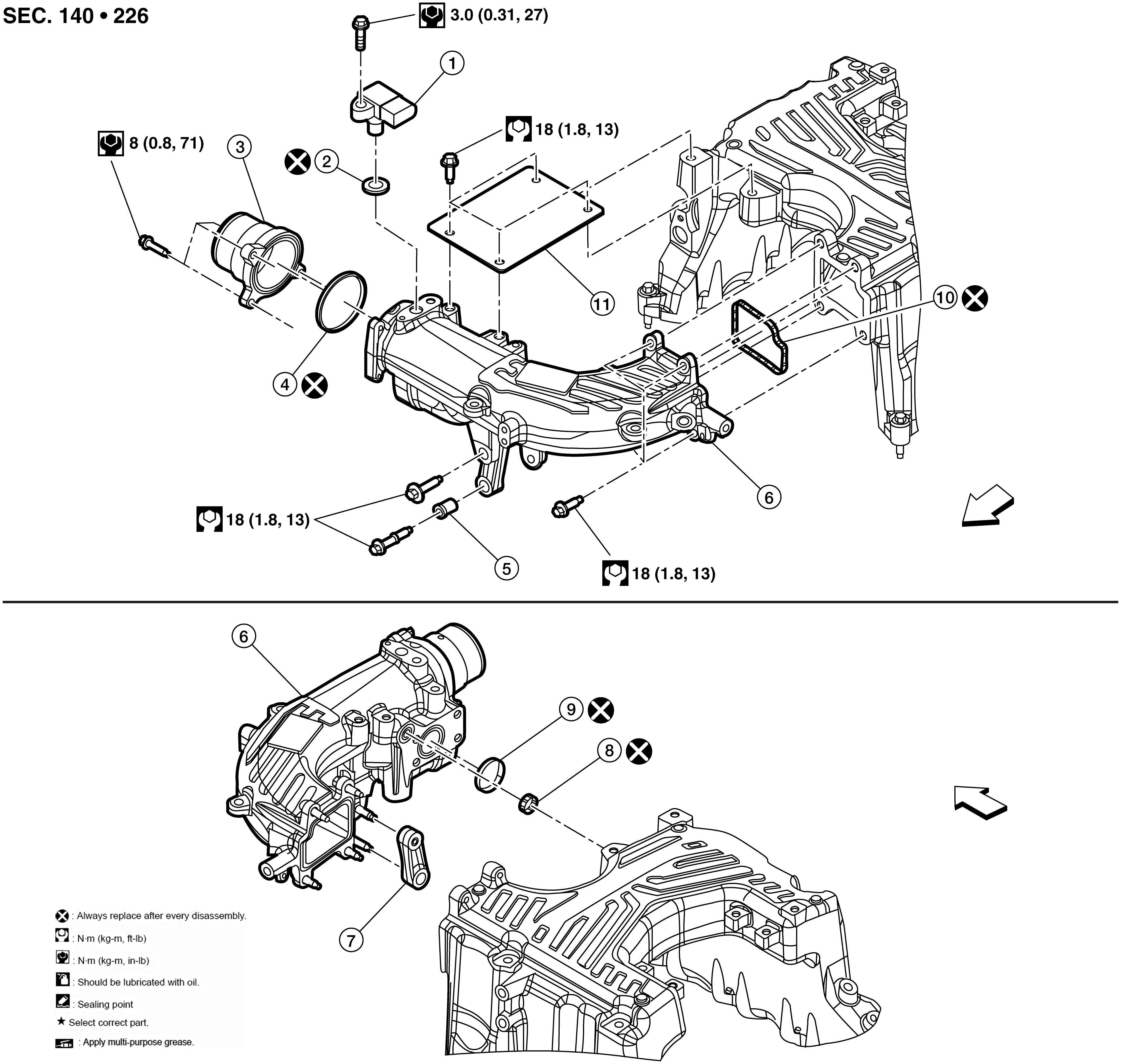

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Engine charge-air cooler outlet pressure/temperature sensor
|
2.
|
O-ring
|
3.
|
Air intake connection adapter
|
|
4.
|
O-ring
|
5.
|
Spacer
|
6.
|
Air intake connection
|
|
7.
|
Bracket
|
8.
|
O-ring
|
9.
|
O-ring
|
|
10.
|
Air intake connection gasket
|
11.
|
Cover plate
|
|
Front
|
