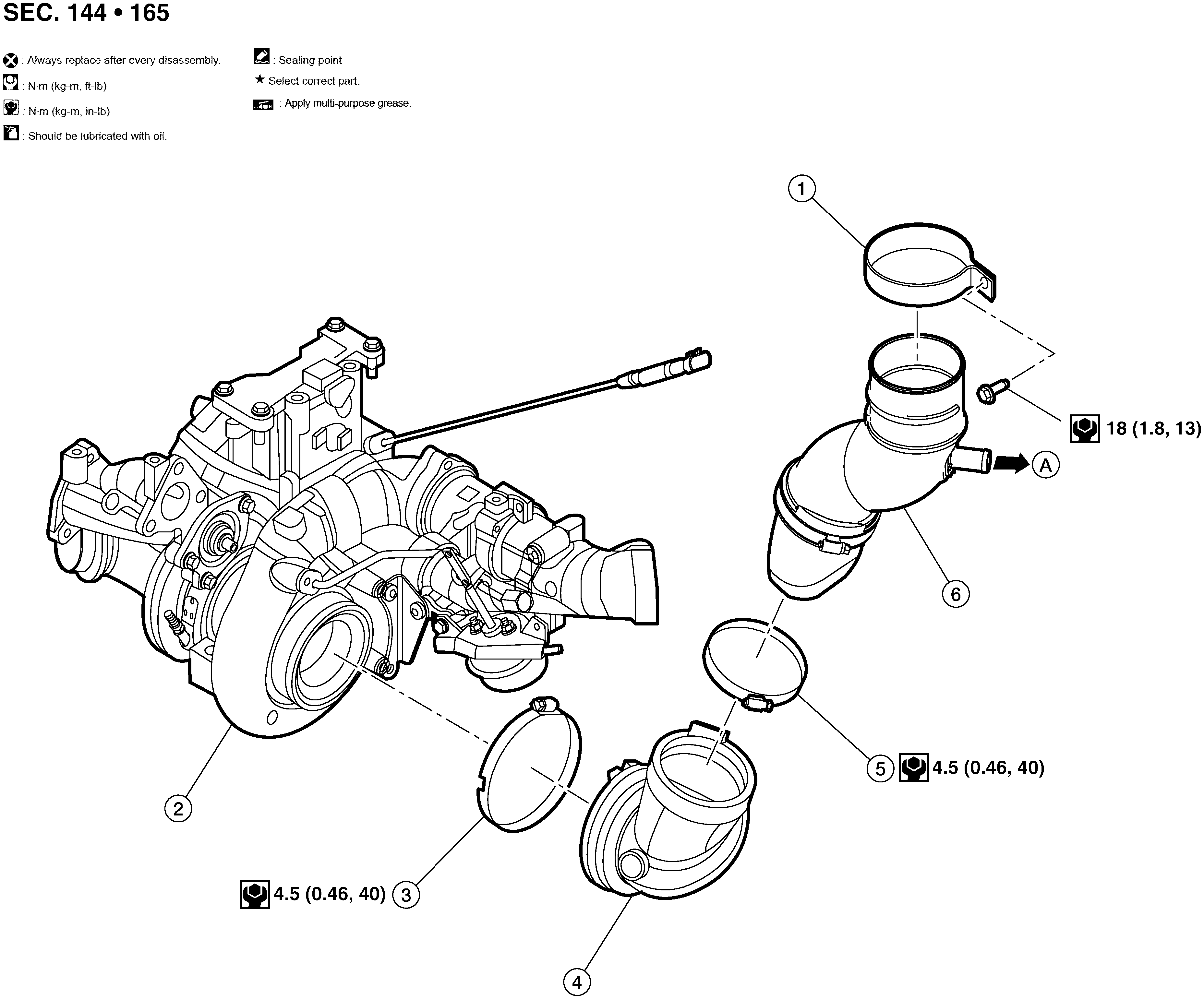

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Clamp
|
2.
|
Low-pressure turbocharger
|
3.
|
Clamp
|
|
4.
|
Air inlet connection (lower)
|
5.
|
Clamp
|
6.
|
Air inlet connection (upper)
|
|
A.
|
To crankcase breather tube
|
NOTE:
The air inlet connection (upper) and air inlet connection (lower) are serviced as an assembly.
