Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

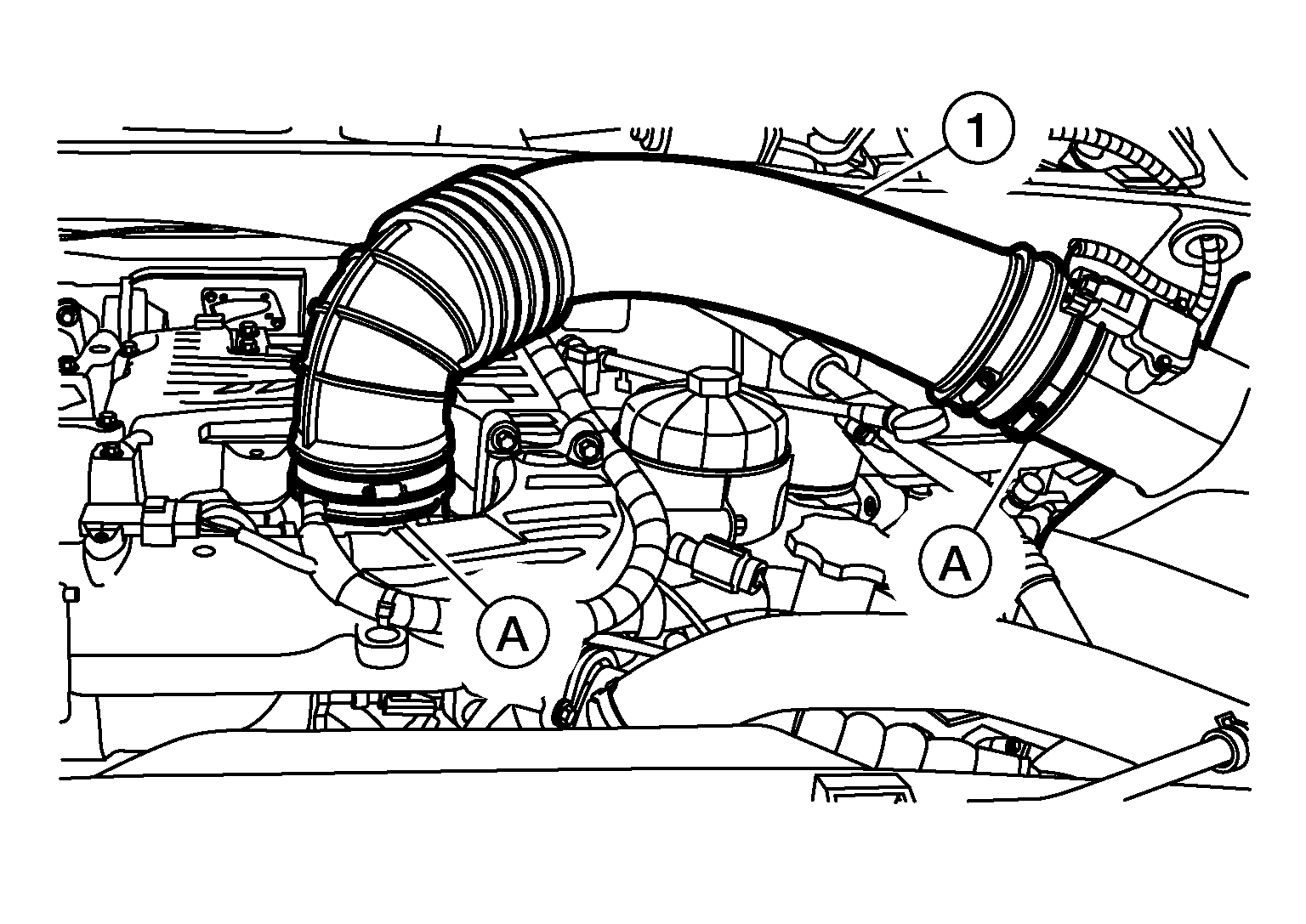

  1. Loosen clamps (A) and remove the air duct (1).
    GNSALBIA2770Z-770Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect harness connector from mass air flow sensor.
  3. Disconnect harness connector from turbocharger compressor intake pressure/temperature sensor.
  4. Remove the air cleaner case (upper) and filter.
  5. Remove the bolts and clips and remove the air cleaner case (lower).
  6. Remove the mass air flow sensor from the air cleaner case [upper (if necessary)]. Refer to Exploded View .
    CAUTION:
    • Handle mass air flow sensor with care.
    • Do not shock it.
    • Do not disassemble it.
    • Do not touch the internal sensor element.
  7. Remove the turbocharger compressor intake pressure/temperature sensor from the air cleaner case [upper (if necessary)]. Refer to Exploded View .
