General Information

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. The following procedure contains measurement steps and specifications regarding the engines fuel system components.
    CAUTION: To avoid possible engine and system damage or performance issues:
    • Brush away all dirt and debris from the area prior to opening any fuel, air intake, exhaust, cooling, aftertreatment or other engine system.
    • To avoid contamination, any open engine system ports must be closed immediately with clean care caps or an appropriate covering.
    • Do not allow any debris to fall into the engine.
    • Do not allow any chemical cleaners to enter the engine or any open systems during the cleaning process.
    NOTE: This procedure is not intended to take the place of troubleshooting tree repair direction. Refer to Symptom Table .

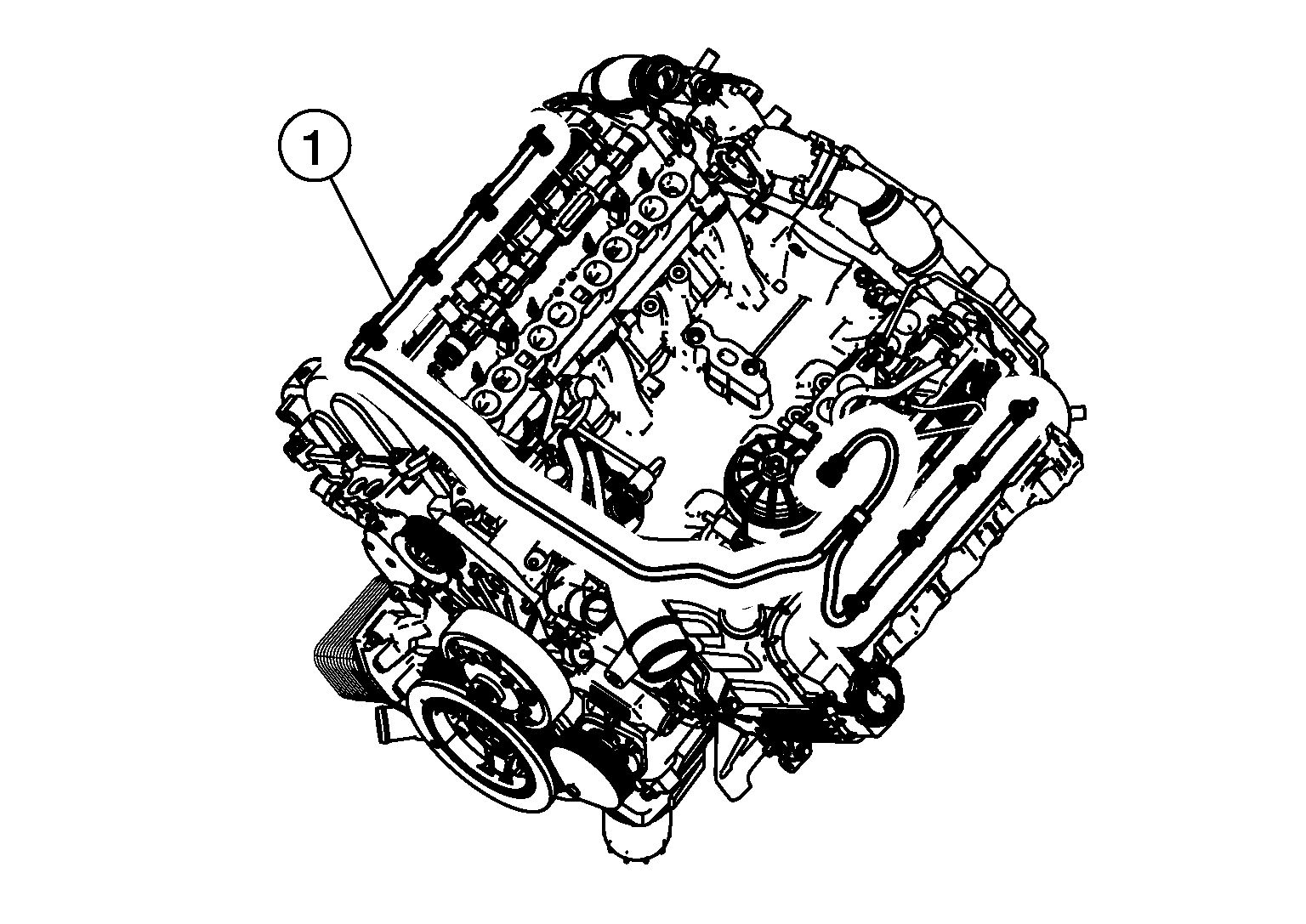

  2. The purpose of this test is to check for a restricted injector drain line (1).
    GNSALBIA2280Z-280Courtesy of NISSAN NORTH AMERICA, INC.
