Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

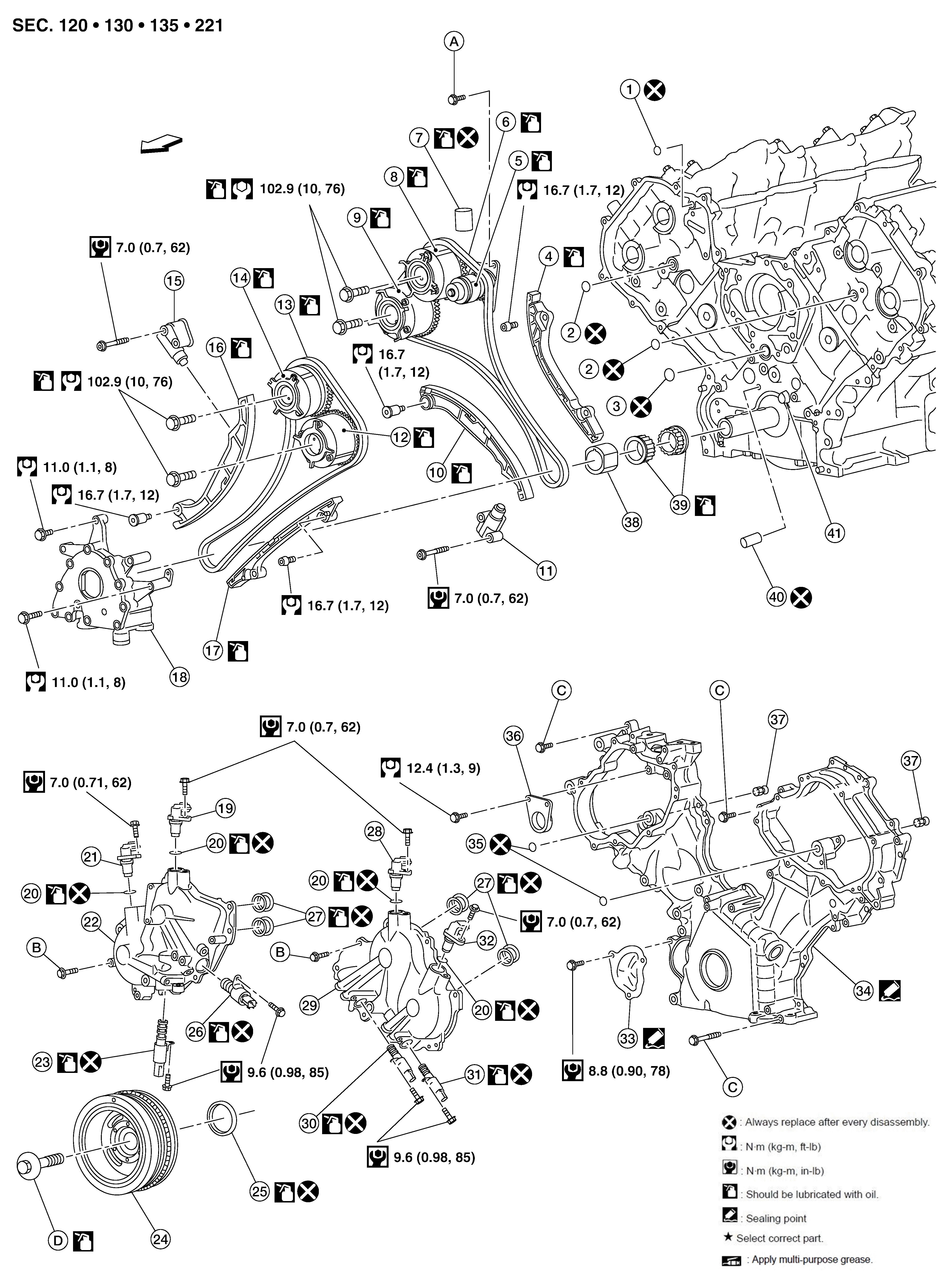

Fig 1: Timing Chain With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	O-ring	3.	O-ring
4.	Tension guide (bank 2)	5.	High pressure fuel pump camshaft	6.	Timing chain (bank 2)
7.	Lifter	8.	Intake camshaft sprocket (bank 2)	9.	Exhaust camshaft sprocket (bank 2)
10.	Slack guide (bank 2)	11.	Timing chain tensioner (bank 2)	12.	Exhaust camshaft sprocket (bank 1)
13.	Timing chain (bank 1)	14.	Intake camshaft sprocket (bank 1)	15.	Timing chain tensioner (bank 1)
16.	Slack guide (bank 1)	17.	Tension guide (bank 1)	18.	Oil pump
19.	Intake camshaft position sensor (bank 2)	20.	O-ring	21.	Exhaust camshaft position sensor (bank 2)
22.	Valve timing control cover (bank 2)	23.	Exhaust valve timing control solenoid valve (bank 2)	24.	Crankshaft pulley
25.	Front oil seal	26.	Intake valve timing control solenoid valve (bank 2)	27.	Seal ring
28.	Intake camshaft position sensor (bank 1)	29.	Valve timing control cover (bank 1)	30.	Intake valve timing control solenoid valve (bank 1)
31.	Exhaust valve timing control solenoid valve (bank 1)	32.	Exhaust camshaft position sensor (bank 1)	33.	Timing chain tensioner cover
34.	Front cover	35.	O-ring	36.	Camshaft bracket
37.	Oil filter (for valve timing control solenoid valve)	38.	Oil pump drive spacer	39.	Crankshaft sprocket
40.	Oil jet (bank 2)	41.	Oil jet (bank 1)	A.	Refer to INSTALLATION
B.	Refer to INSTALLATION	C.	Refer to INSTALLATION	D.	Refer to INSTALLATION
	Front
