Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To avoid the danger of being scalded, never drain engine oil when engine is hot.

Drain engine oil. Refer to Draining .
Remove engine undercover. Refer to Removal and Installation .

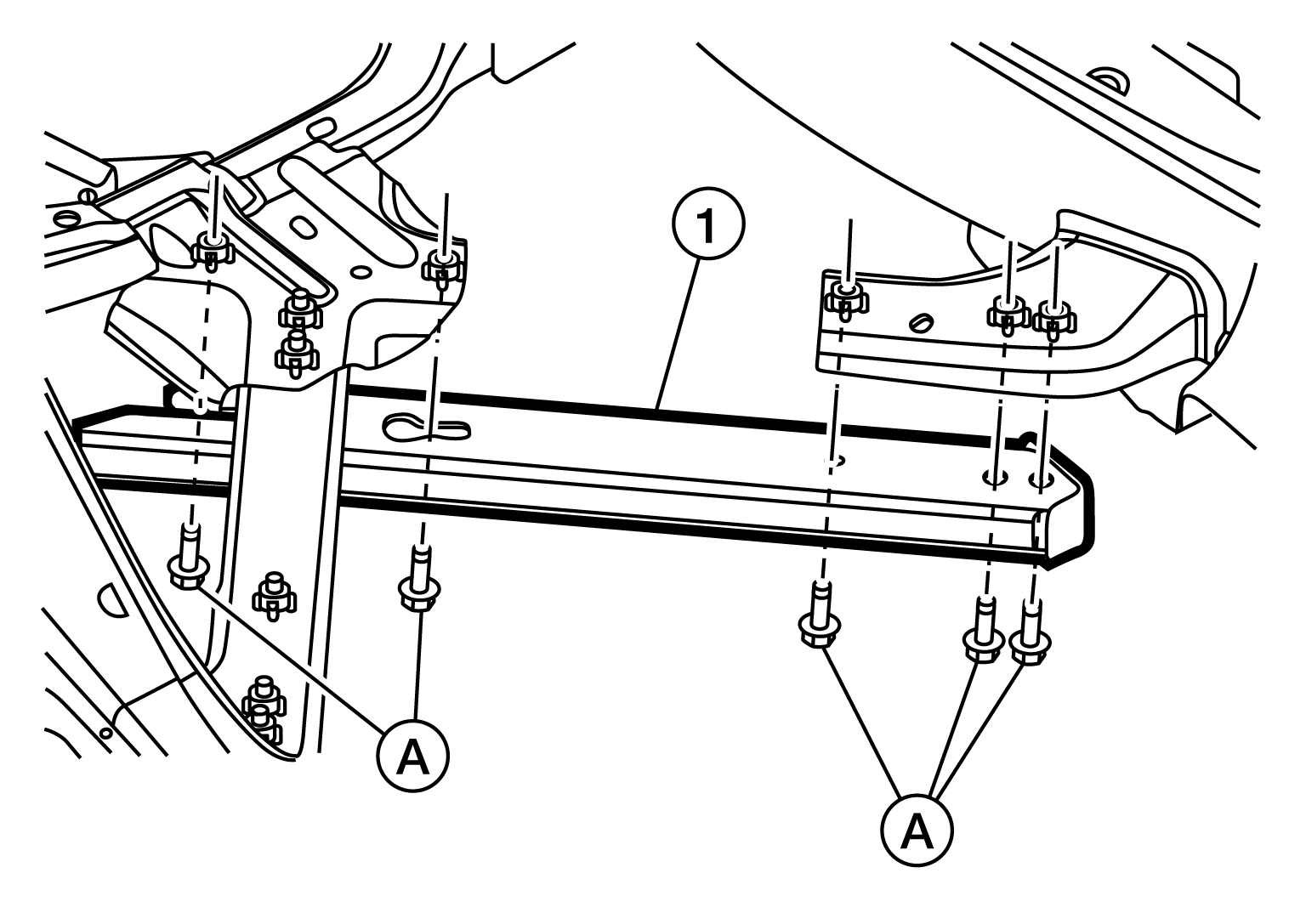

For Non-XD Models, remove bolts (A) then remove rear diagonal cross member assemblies [1 (LH/RH)].

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: RH shown, LH similar.

For 2WD Non-XD models, remove the following components.

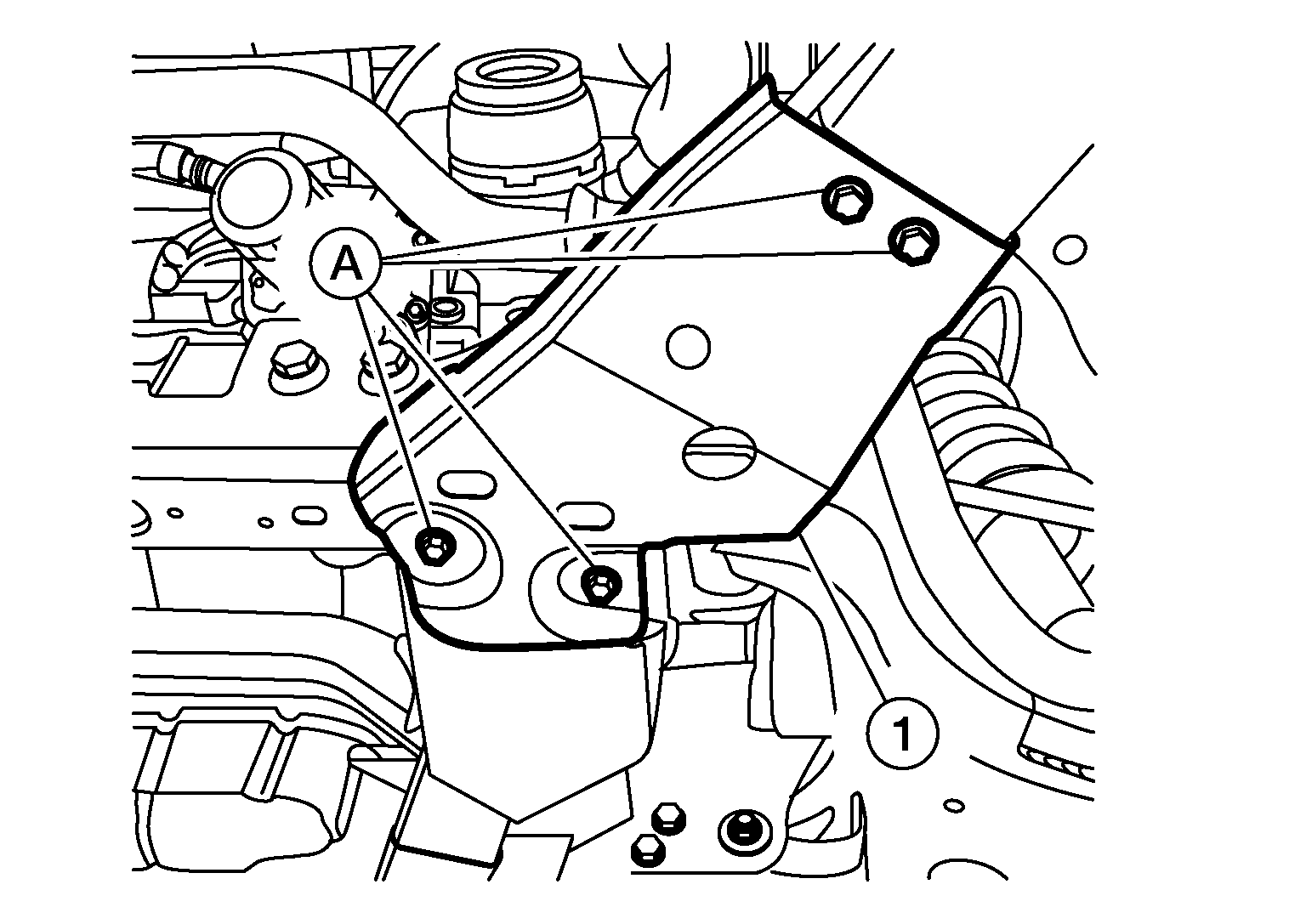

Remove bolts (A) and remove front suspension member reinforcement [LH (1)].

GNSALGIA0339Z-339

Courtesy of NISSAN NORTH AMERICA, INC.

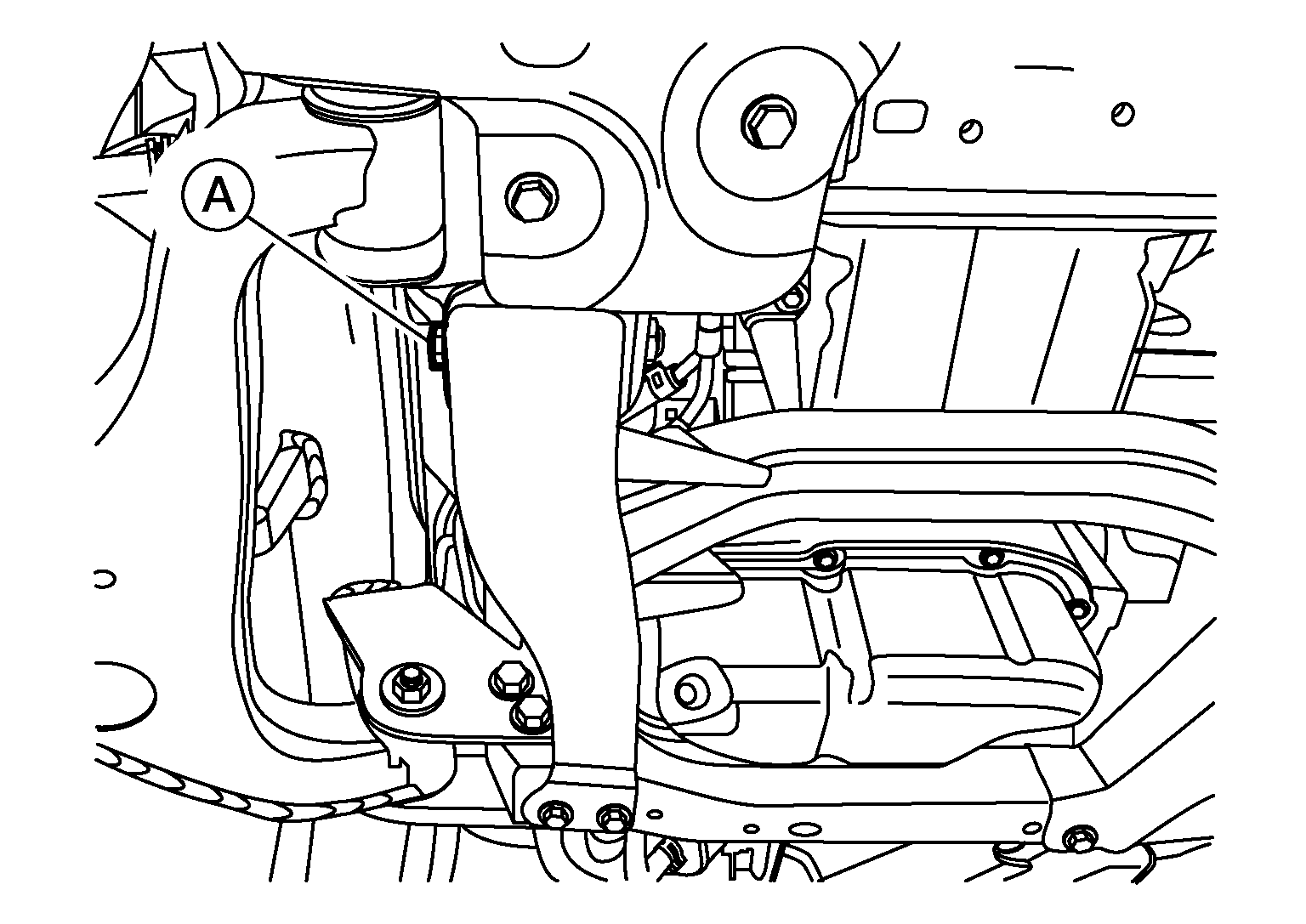

Remove differential mounting bolt (A).

GNSALGIA0340Z-340

Courtesy of NISSAN NORTH AMERICA, INC.

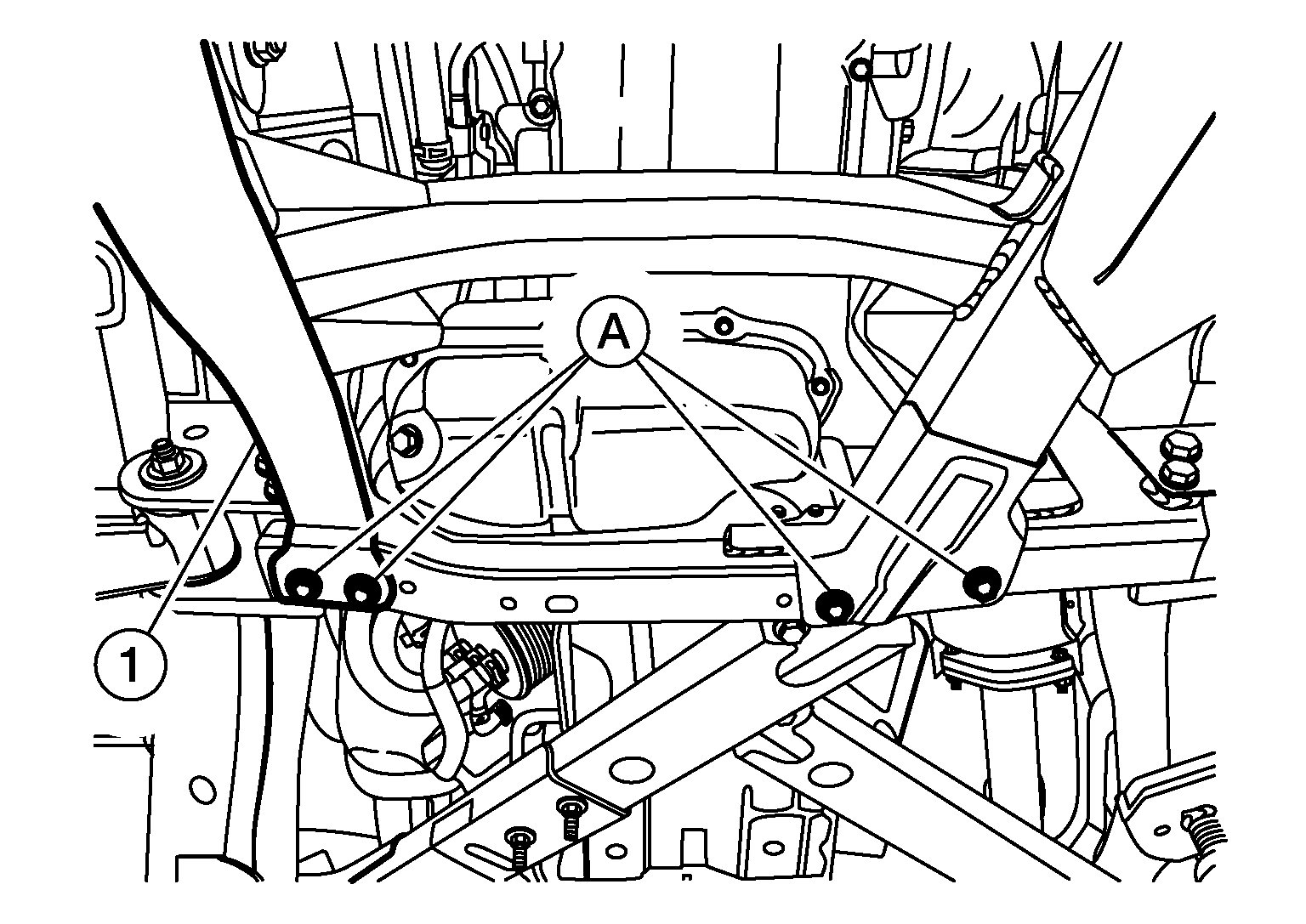

Remove bolts (A) and remove diagonal member (1).

GNSALGIA0341Z-341

Courtesy of NISSAN NORTH AMERICA, INC.

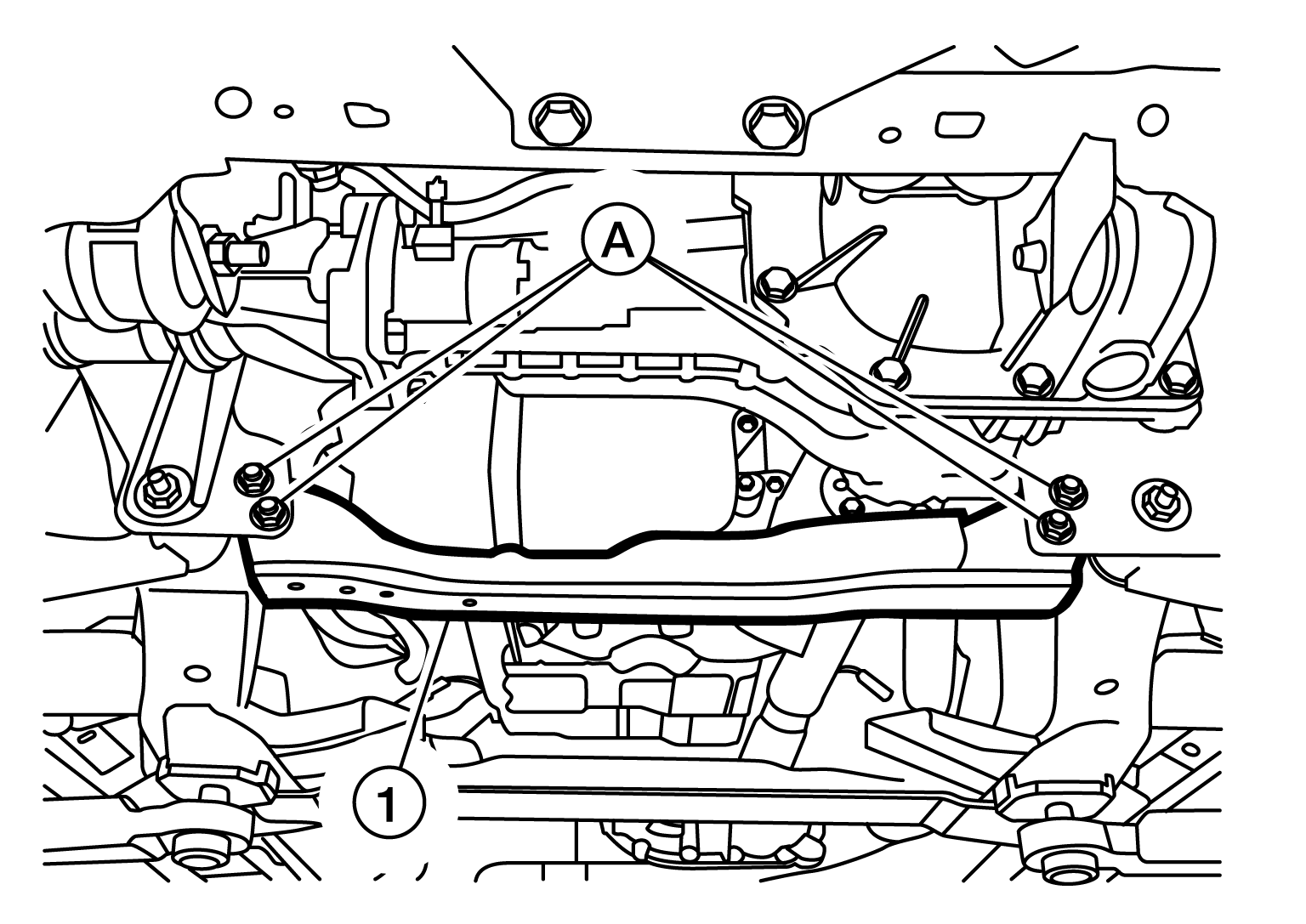

Remove bolts and nuts (A) from front cross member (1), then remove front cross member.

GNSDB119423

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse nuts.

Remove oil pan (lower) in the following sequence.

Remove bolts in order as shown, below.

Fig 1: Oil Pan (Lower) Bolt Tightening Sequence

GNSJPBIA3495Z-495

Courtesy of NISSAN NORTH AMERICA, INC.

: Engine front

Insert Tool (A) between oil pan (upper) and oil pan (lower).

GNSJPBIA0276Z-276

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Be careful not to damage the mating surfaces.
Do not insert a screwdriver. This damages the mating surfaces.

Tool	: KV10111100 (J-37228)

Slide the Tool by tapping on the side of tool with a suitable tool and remove oil pan (lower).

Remove oil strainer (if necessary).
