Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not reuse drain plug washer.
  1. Install oil strainer (if removed).
  2. Install oil pan (lower) in the following sequence.
    1. Use suitable tool (A) to remove old liquid gasket from mating surfaces.
      GNSJPBIA0025Z-025Courtesy of NISSAN NORTH AMERICA, INC.
      • Remove old liquid gasket from the bolt holes and thread.
      CAUTION: Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
    2. Apply a continuous bead of liquid gasket with a suitable tool to the oil pan (lower) as shown, below.
      GNSAWBIA2959Z-959Courtesy of NISSAN NORTH AMERICA, INC.

      (A)

      : 5.0 - 7.0 mm (0.20 - 0.28 in)

      (B)

      : ?4.0 - 5.0 mm (0.16 - 0.20 in)

      (C)

      : 7.5 - 9.5 mm (0.30 - 0.37 in)

      SYMBOL

      : Engine front

      Use Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants .

      CAUTION: Tighten oil pan (lower) bolts to specification within 5 minutes of application of liquid gasket.
    3. Install oil pan (lower).
      • Tighten bolts to specification in the sequence shown, below.
        Fig 1: Oil Pan (Lower) Bolt Tightening Sequence
        GNSJPBIA3495Z-495Courtesy of NISSAN NORTH AMERICA, INC.

        Oil Pan (Lower) Bolts

        : 9.0 N.m (0.9 kg-m, 80 in-lb)

        SYMBOL

        : Engine front
  3. Install oil pan drain plug.
    CAUTION: Do not reuse drain plug washer.
  4. Install front cross member assembly bolts and nuts, then tighten nuts to specification in sequence as shown, below.
    Fig 2: Front Cross Member Nut Tightening Sequence

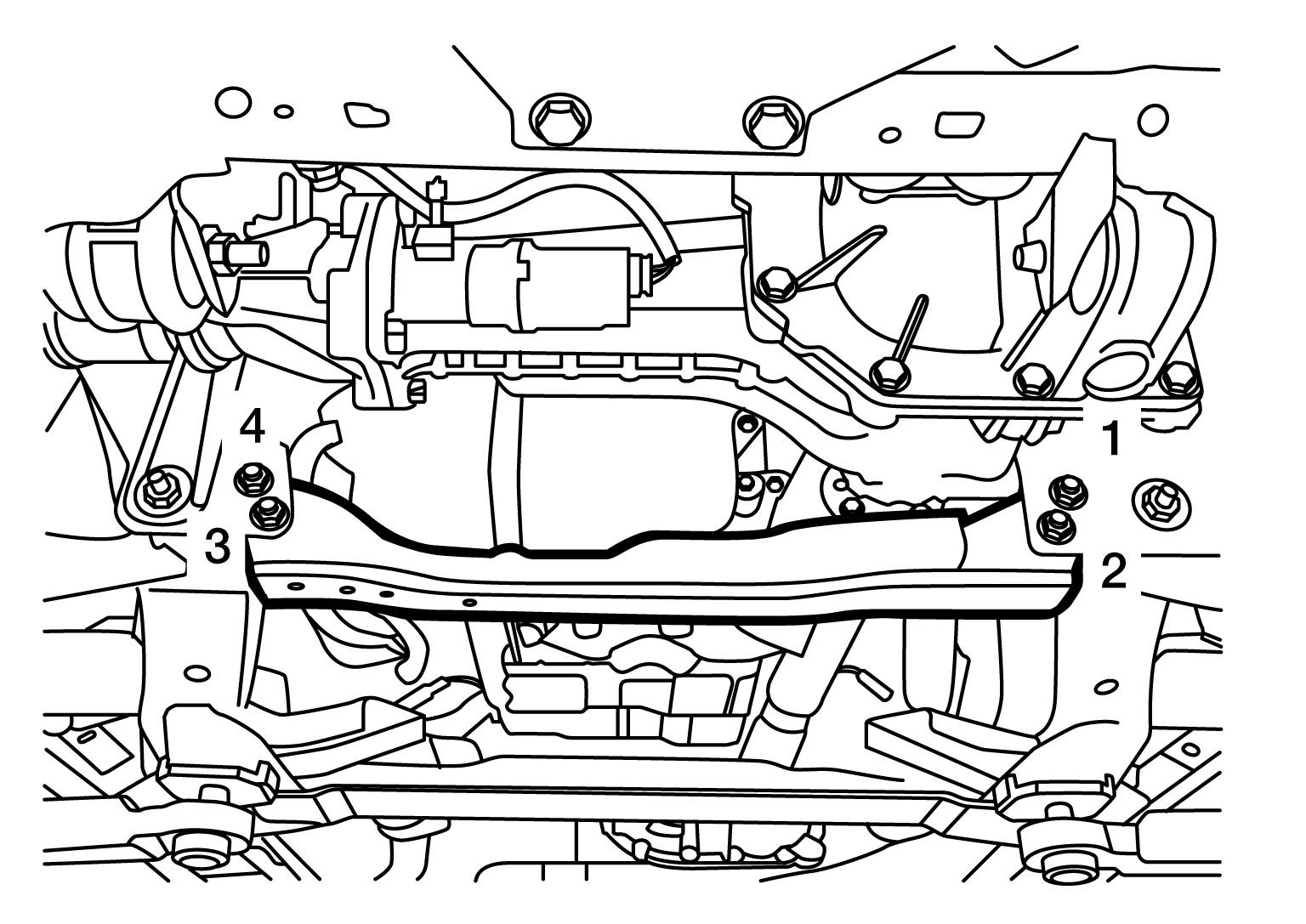

    GNSALBIA3283Z-283Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse nuts.

    Front cross member nuts

    : 180 Nm (18 kg-m, 133 ft-lb)
  5. Install the diagonal member using the following steps.
    1. Install diagonal member (1)
      GNSALGIA0342Z-342Courtesy of NISSAN NORTH AMERICA, INC.
    2. Temporarily install bolt (A) finger tight.
    3. Install bolt (B) and nut (C) finger tight, then tighten to specification.

      Nut (C)

      : 210 Nm (21 kg-m, 155 ft-lb)
    4. Install diagonal member bolts finger tight, then tighten to specification in sequence as shown.
      Fig 3: Diagonal Member Bolt Tightening Sequence
      GNSALGIA0343Z-343Courtesy of NISSAN NORTH AMERICA, INC.

      Diagonal Member Bolts

      : 80.0 Nm (8.2 kg-m, 59 ft-lb)
  6. Remove bolt (A) from diagonal member (1).
    GNSALBIA3269Z-269Courtesy of NISSAN NORTH AMERICA, INC.
  7. Install front frame member reinforcement [LH (1)] bolts finger tight, then tighten to specification in sequence as shown.
    Fig 4: Front Frame Member Reinforcement (LH) Bolt Tightening Sequence
    GNSALGIA0344Z-344Courtesy of NISSAN NORTH AMERICA, INC.

    Bolts 1-4

    : 80.0 Nm (8.2 kg-m, 59 ft-lb)
  8. Install rear diagonal cross member assembly (LH/RH) bolts, then tighten to specification in sequence as show (Non-XD Models).

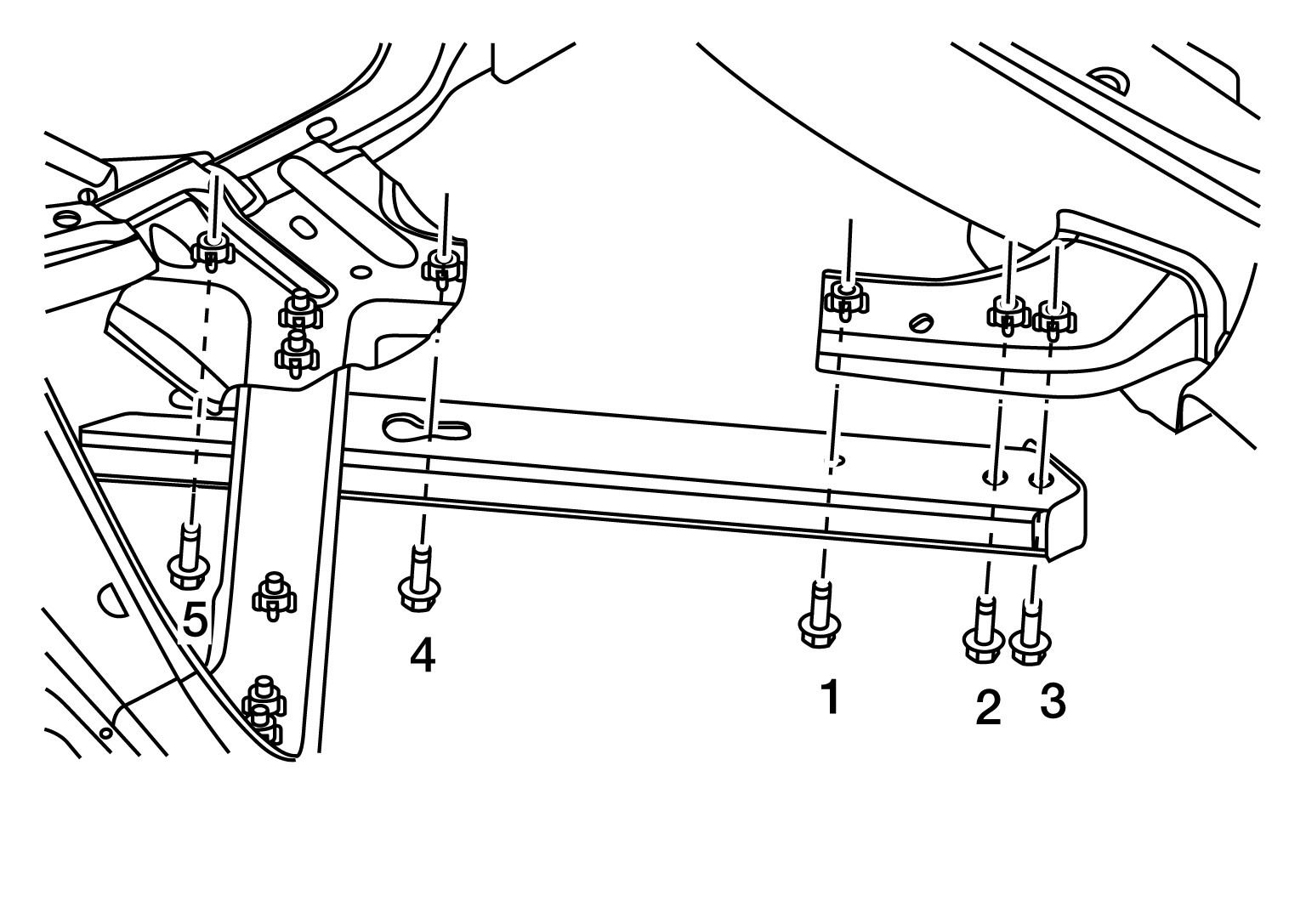

    GNSALBIA3282Z-282Courtesy of NISSAN NORTH AMERICA, INC.

    Rear diagonal cross member bolts

    : 130 Nm (13 kg-m, 96 ft-lb)
    NOTE: RH show, LH similar.
  9. Installation of the remaining components is in the reverse order of removal.
    NOTE: Wait at least 30 minutes after oil pan is installed before refilling engine oil.
