Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

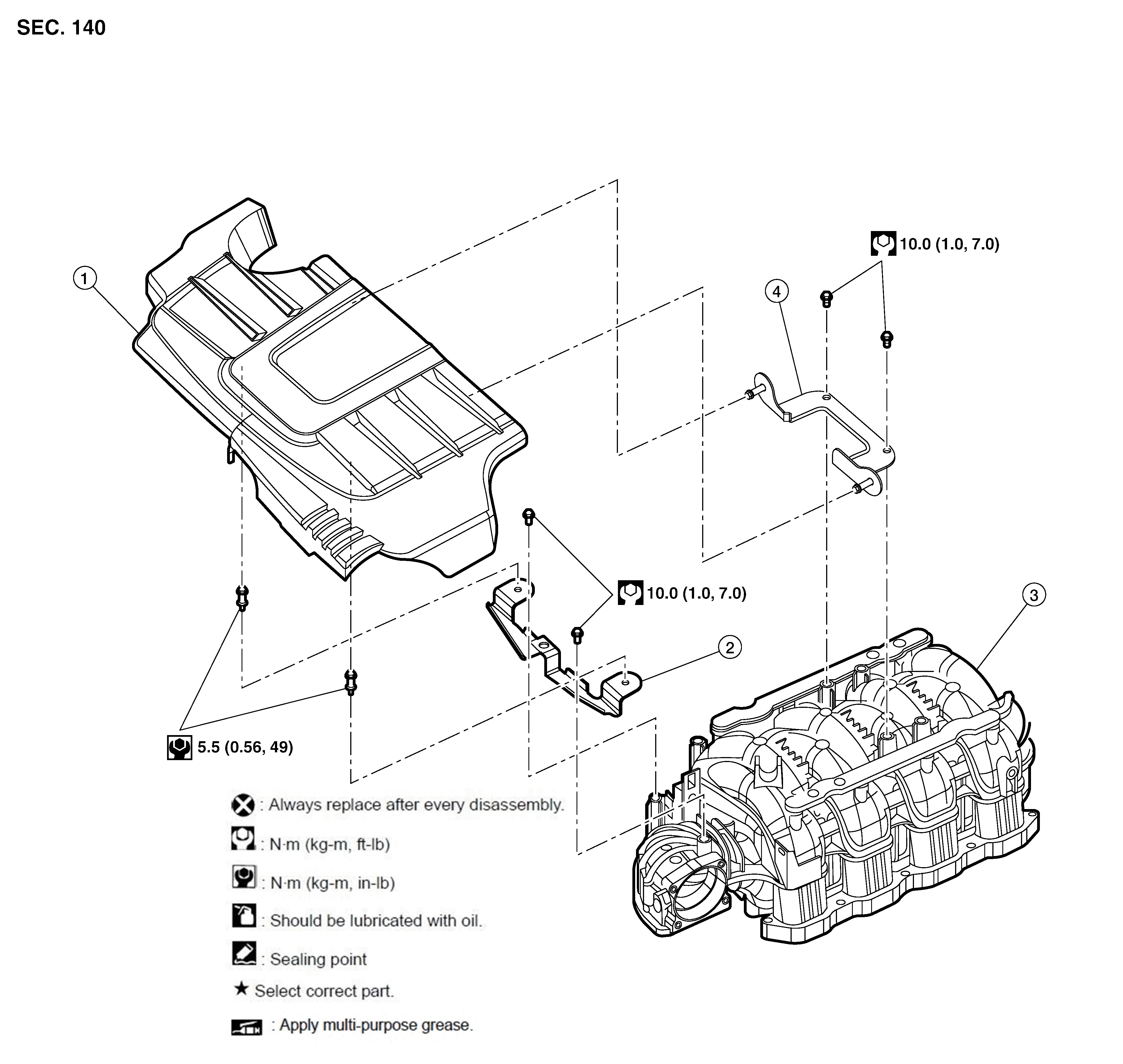

Fig 1: Engine Cover With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine Cover	2.	Bracket (Front)	3.	Intake Manifold
4.	Bracket (Rear)
