Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
NOTE:
Make sure to align marks when installing air cleaner and air duct components.
- Align mating marks (A) with mass air flow sensor (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
(2)
|
: Air duct
|
|
(3)
|
: Air cleaner case (upper)
|

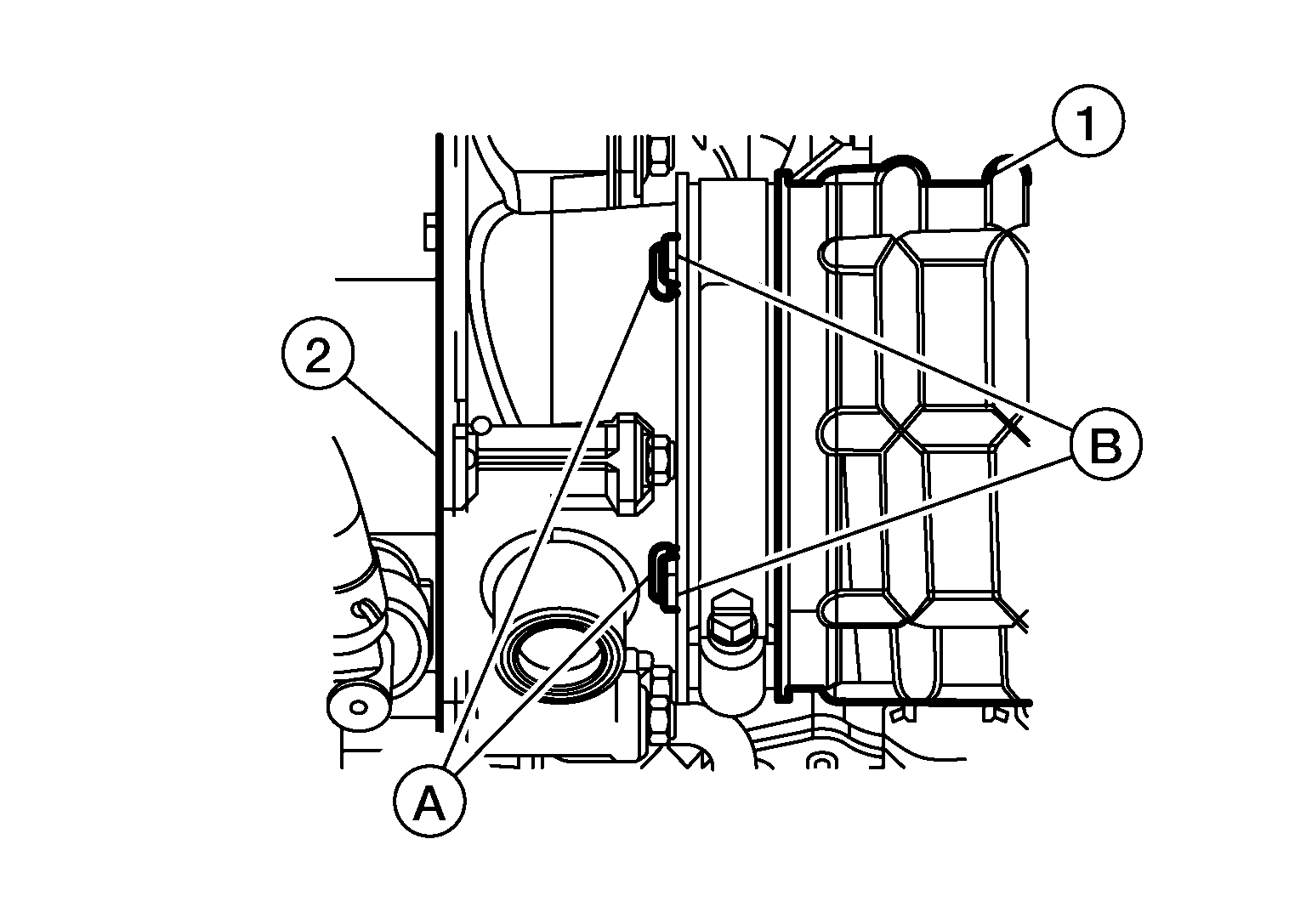

- Align mating marks (A) on the throttle body (2) with the mating marks (B) on the air duct (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- When installing PCV hose clamps, orient the clamps as shown, below.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
(A)
|
: 45°
|
|
(B)
|
: Marking (top)
|
