Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front room/map lamp assembly. Refer to Removal and Installation .

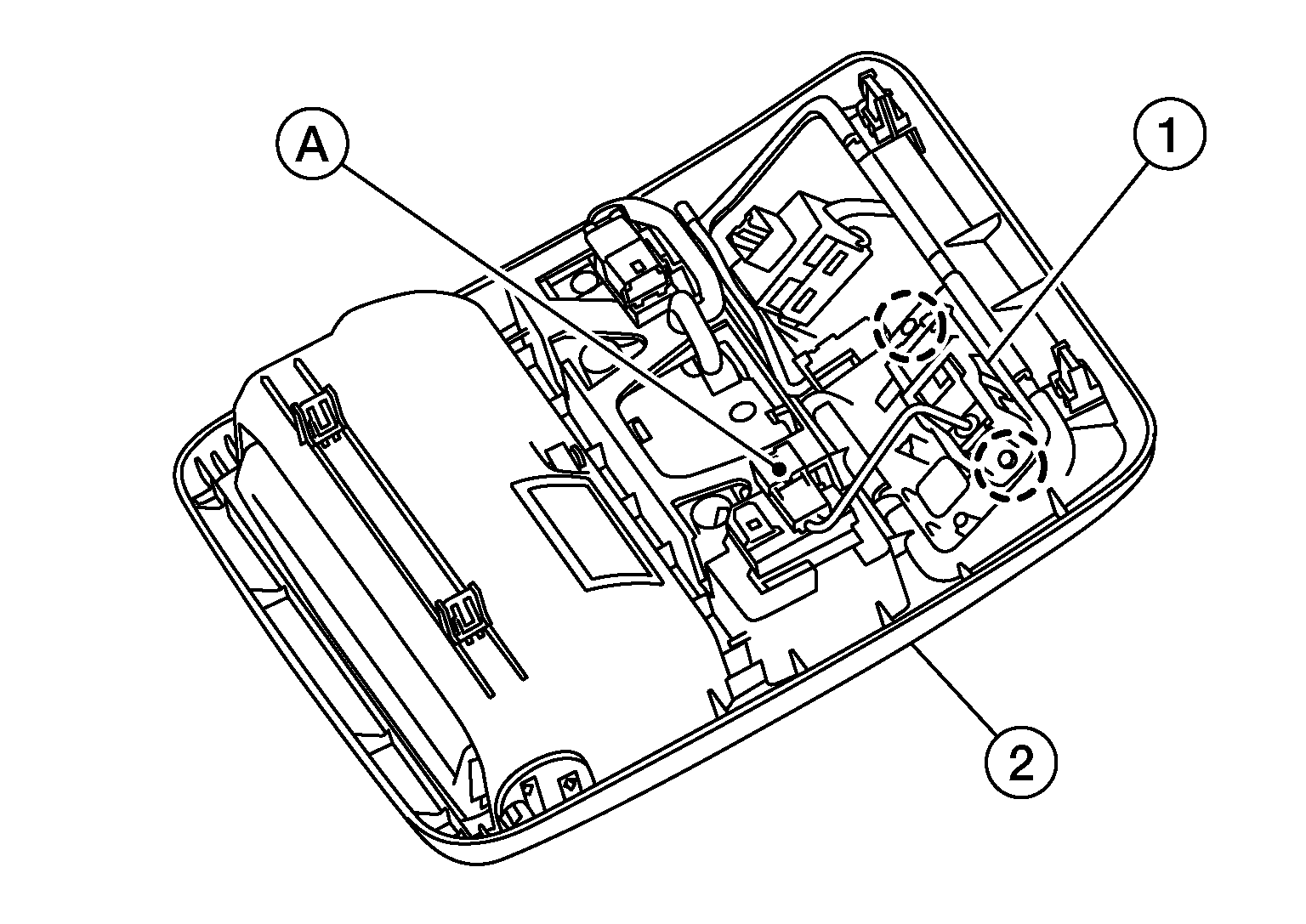

- Disconnect harness connector (A) from microphone (1).
- Release pawls using suitable tool and remove microphone from front room/map lamp assembly (2).
:Pawl
