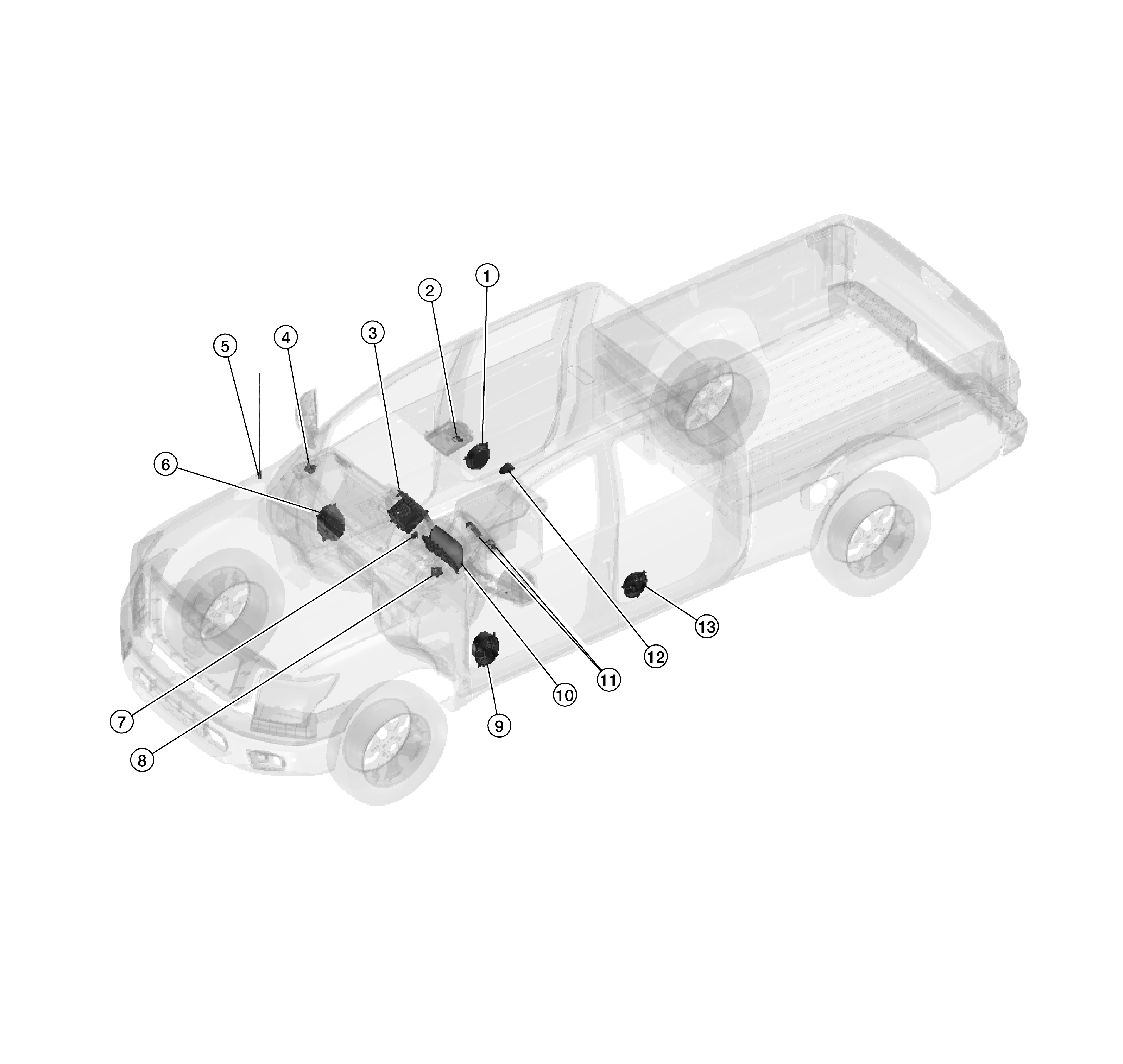

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
No. |
Component |
Function |
|
1. |
Rear door speaker RH |
Refer to Speaker . |
|
2. |
Microphone |
Refer to Microphone . |
|
3. |
Audio unit |
Refer to Audio Unit . |
|
4. |
Front tweeter RH |
Refer to Speaker . |
|
5. |
Rod antenna |
Refer to Antenna and Antenna Feeder . |
|
6. |
Front door speaker RH |
Refer to Speaker . |
|
7. |
USB interface and AUX in jack |
Refer to USB Interface and AUX In Jack . |
|
8. |
Front tweeter LH |
Refer to Speaker . |
|
9. |
Front door speaker LH |
Refer to Speaker . |
|
10. |
Combination meter |
Refer to Combination Meter . |
|
11. |
Steering switches |
Refer to Steering Switches . |
|
12. |
Satellite antenna |
Refer to Antenna and Antenna Feeder . |
|
13. |
Rear door speaker LH |
Refer to Speaker . |
