Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially remove headlining. Refer to Removal and Installation (SINGLE CAB), Removal and Installation (CREW CAB) or Removal and Installation (KING CAB ® ).

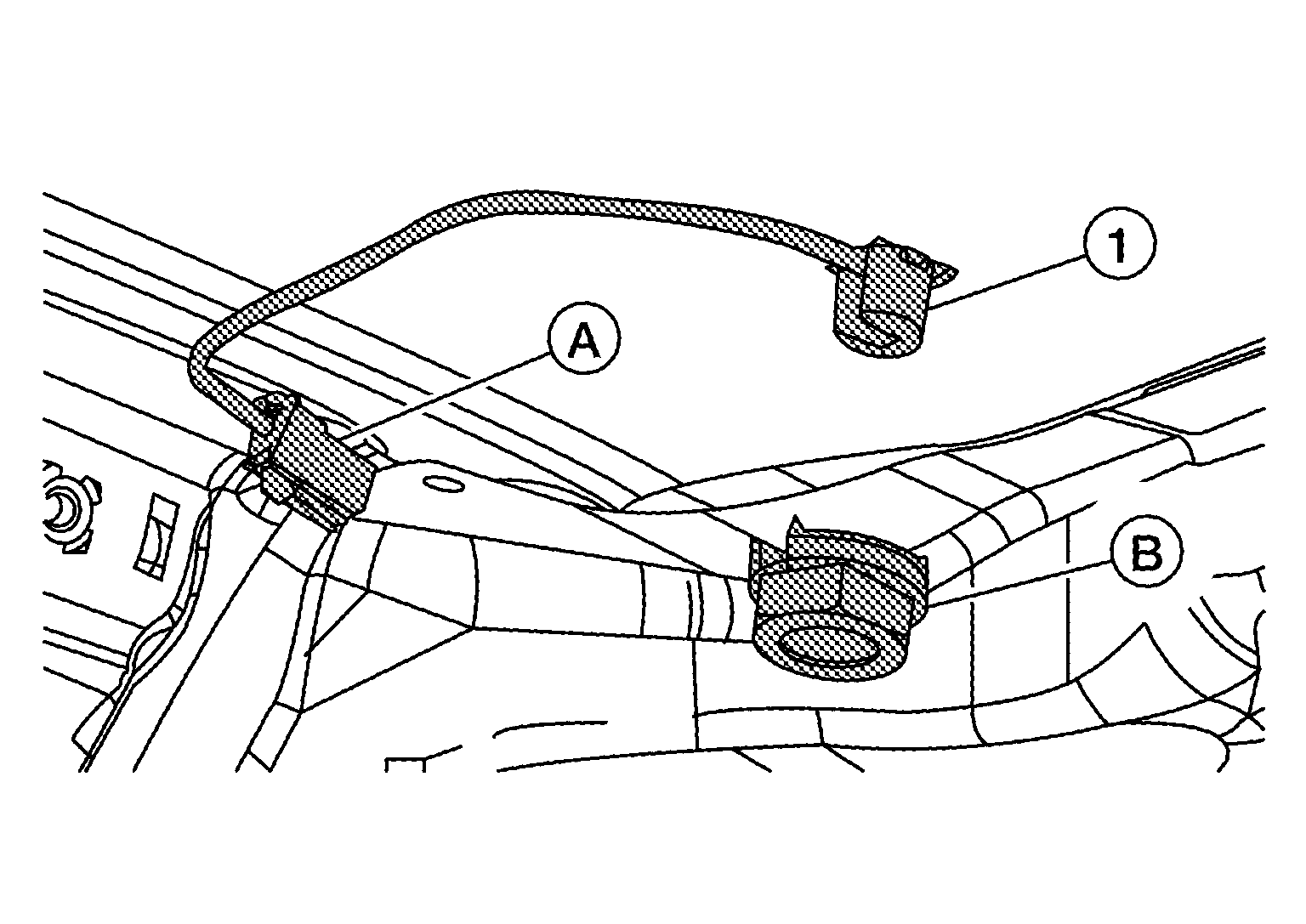

  2. Disconnect the harness connector (A) from the satellite radio antenna connector.
    GNSALNIA1867Z-867Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the satellite radio antenna nut (B).
  4. Remove the satellite radio antenna (1).
