Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove antenna rod.
  2. Remove fender protector. Refer to Removal and Installation - Front Fender Protector .

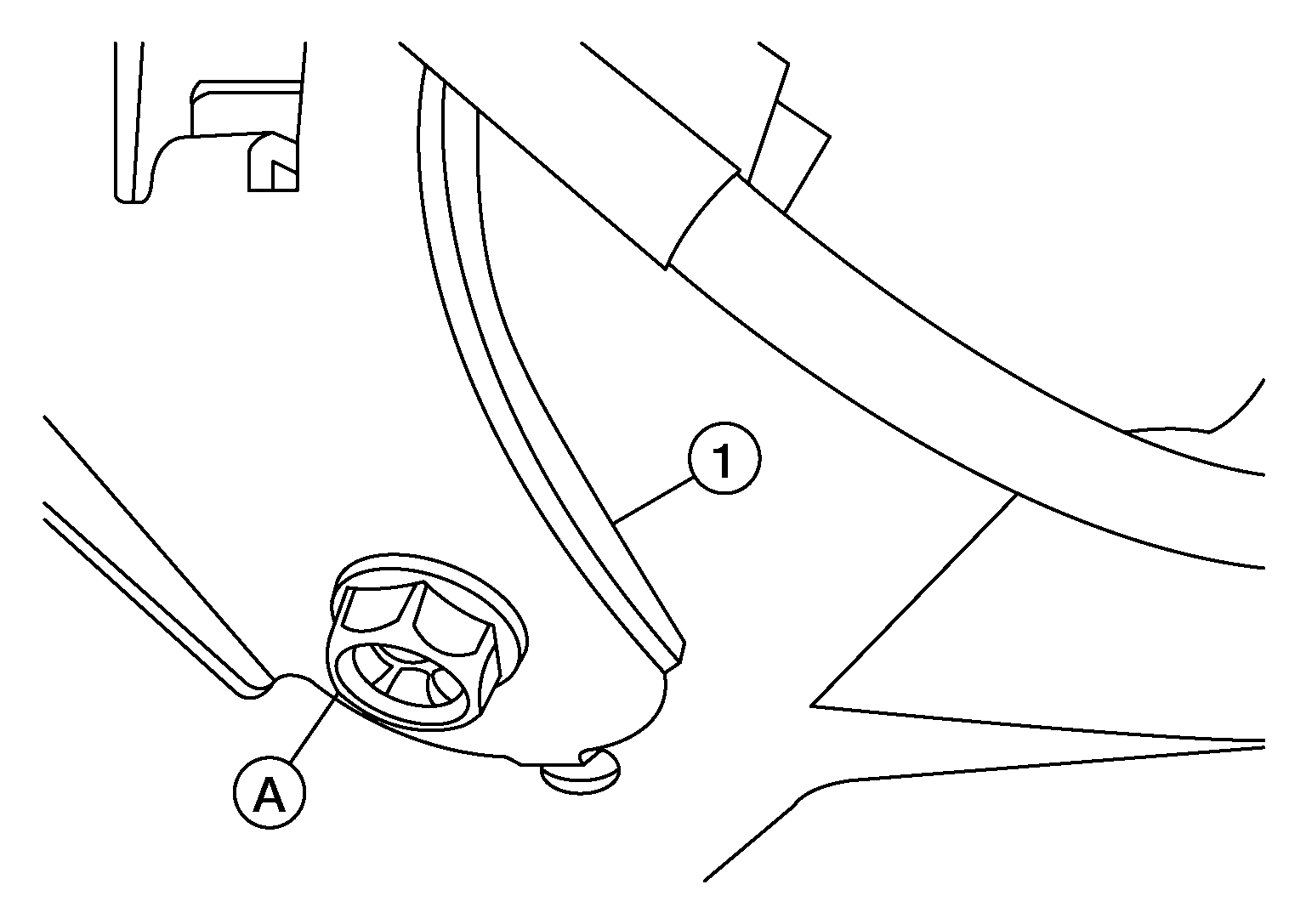

  3. Remove bolt (A) from rod antenna bracket (1).
    GNSALNIA1865Z-865Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the rod antenna feeder from the rod antenna.
  5. Remove rod antenna.
