Without Front Roof Console

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

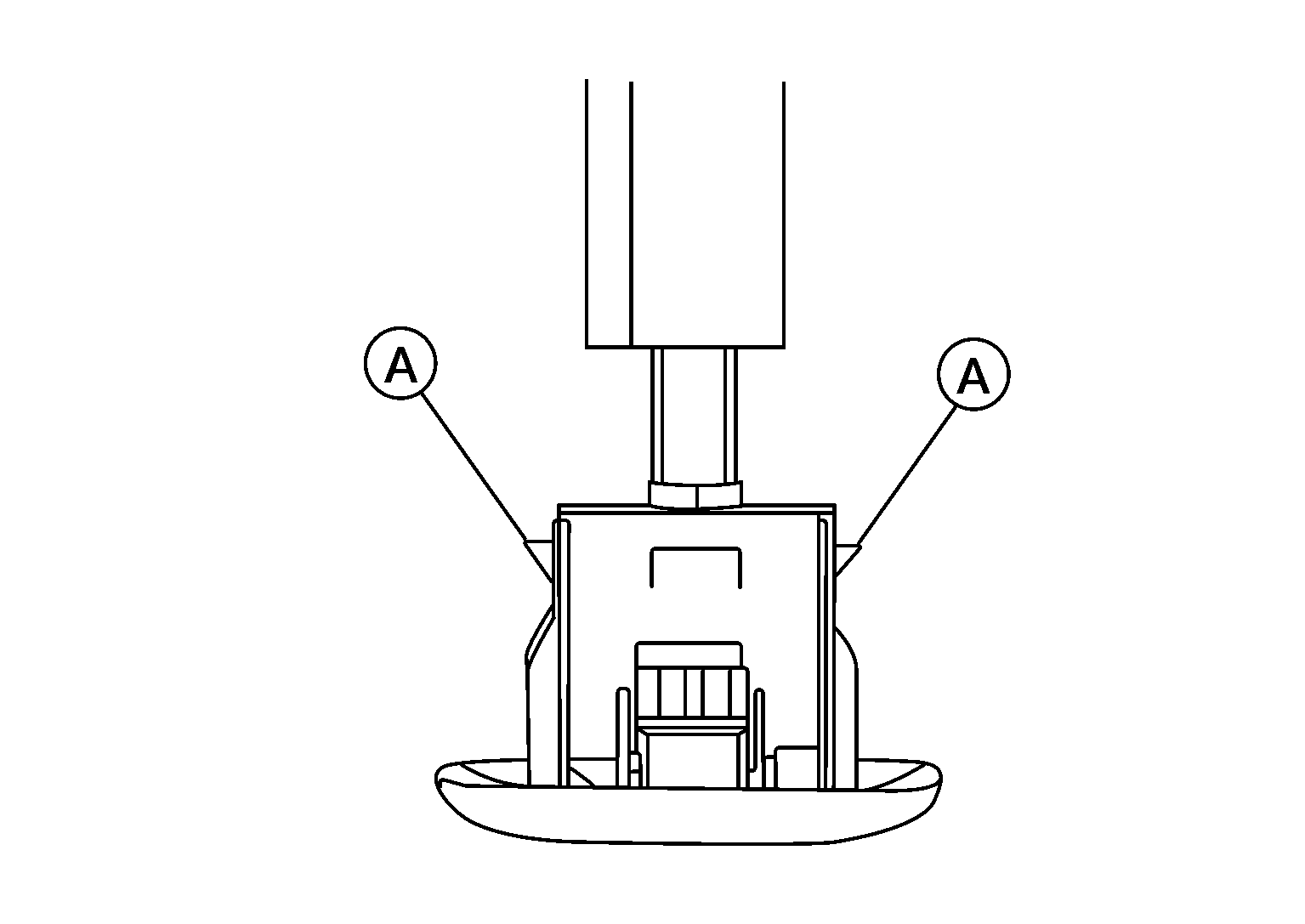

Remove the microphone finisher from the headlining by releasing pawls (A) using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector from microphone and remove.

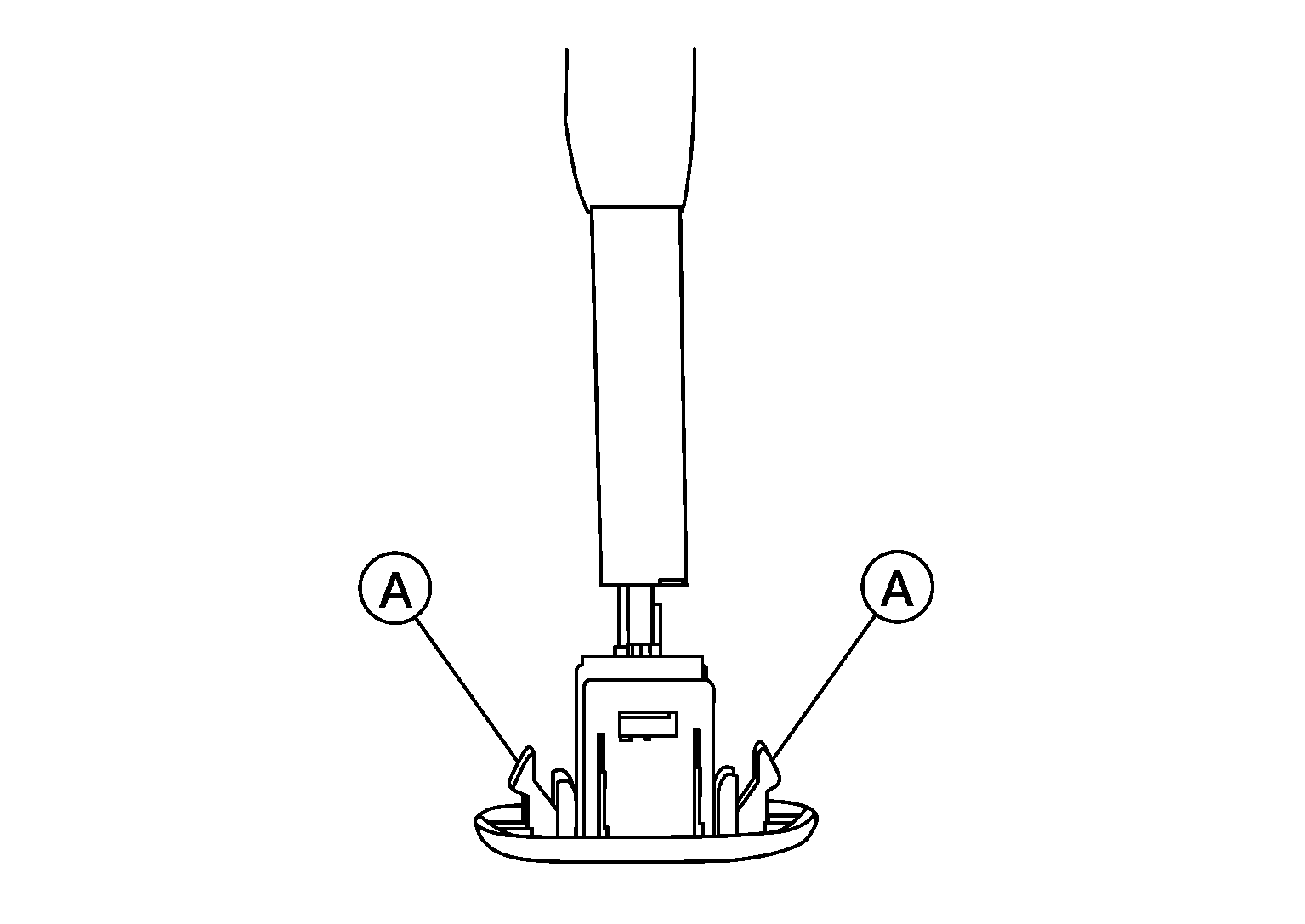

Separate the microphone from the finisher by releasing pawls (A) using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure to align the rib on the finisher with the slot in the microphone.

Make sure to install the microphone with the arrows pointing toward the RH side of the vehicle.
