Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

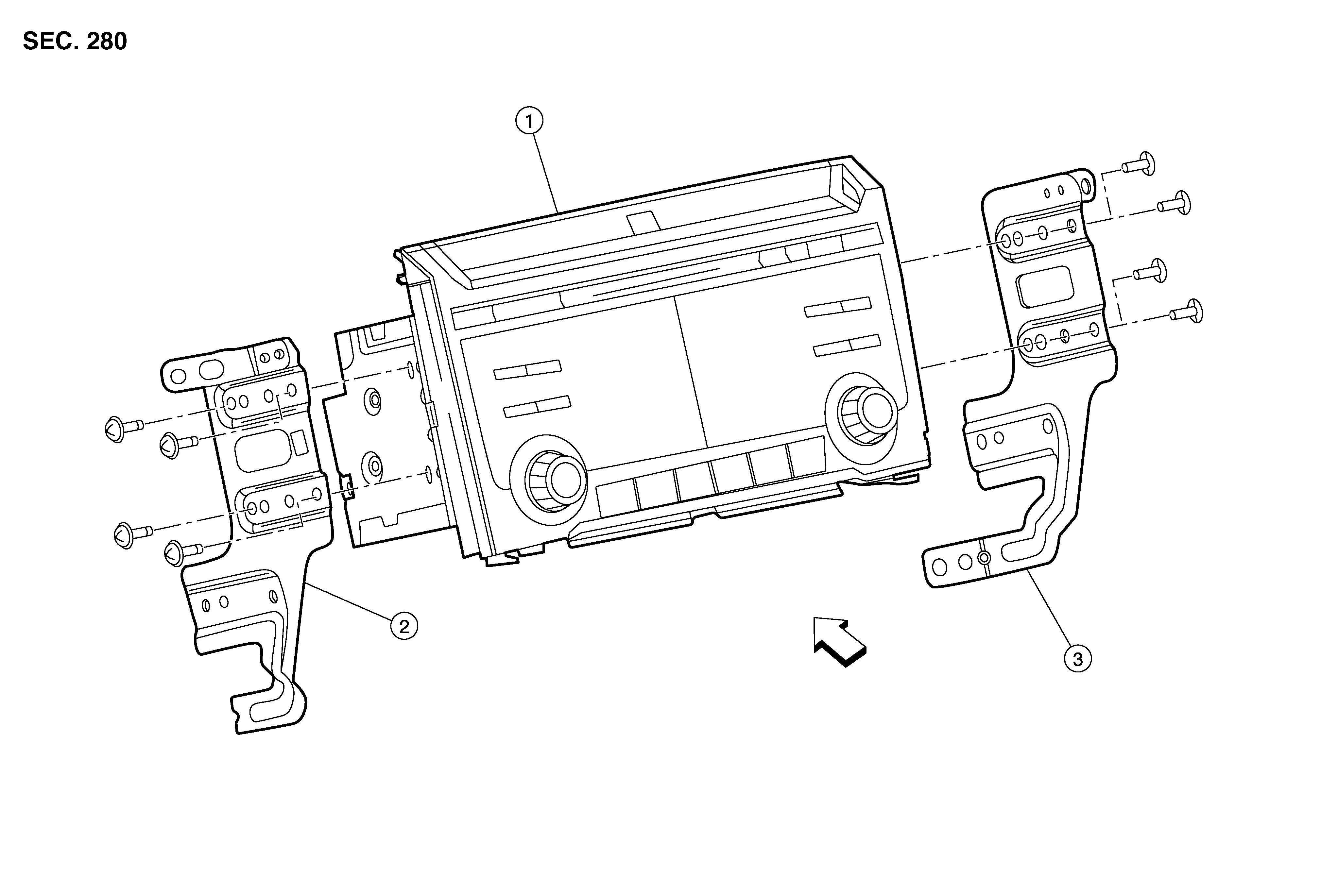

GNSALNIA1831Z-831Courtesy of NISSAN NORTH AMERICA, INC.

1.

Audio unit

2.

Audio unit bracket (LH)

3.

Audio unit bracket (RH)
