Work Procedure (Bluetooth Registration)

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

RECORD BLUETOOTH D/C(SERIAL #) FOR REPLACEMENT AUDIO UNIT

Turn ignition switch ON.
Turn audio unit OFF.

Access the diagnostic menu as follows:

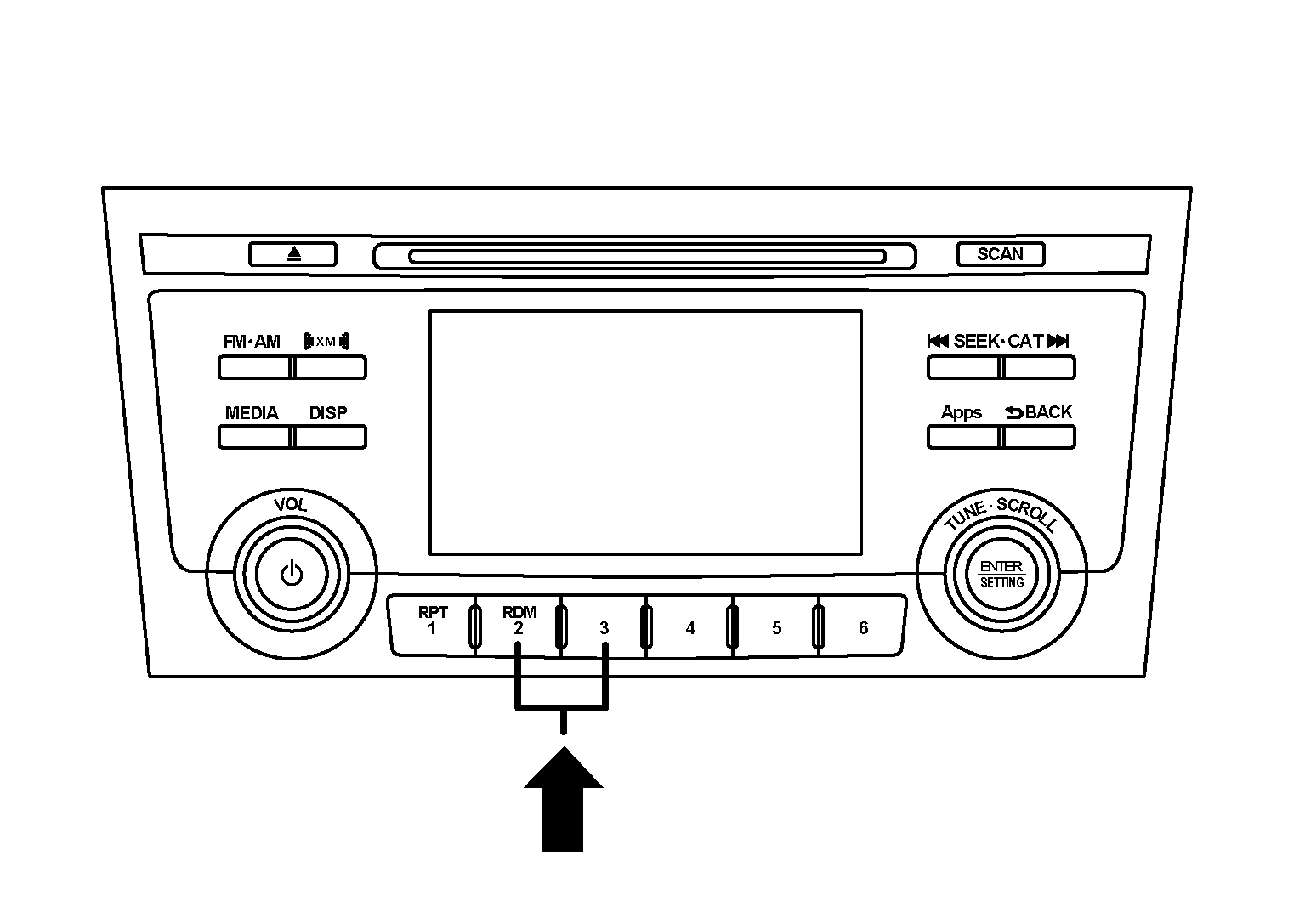

Press and hold preset buttons 2 and 3.

Courtesy of NISSAN NORTH AMERICA, INC.

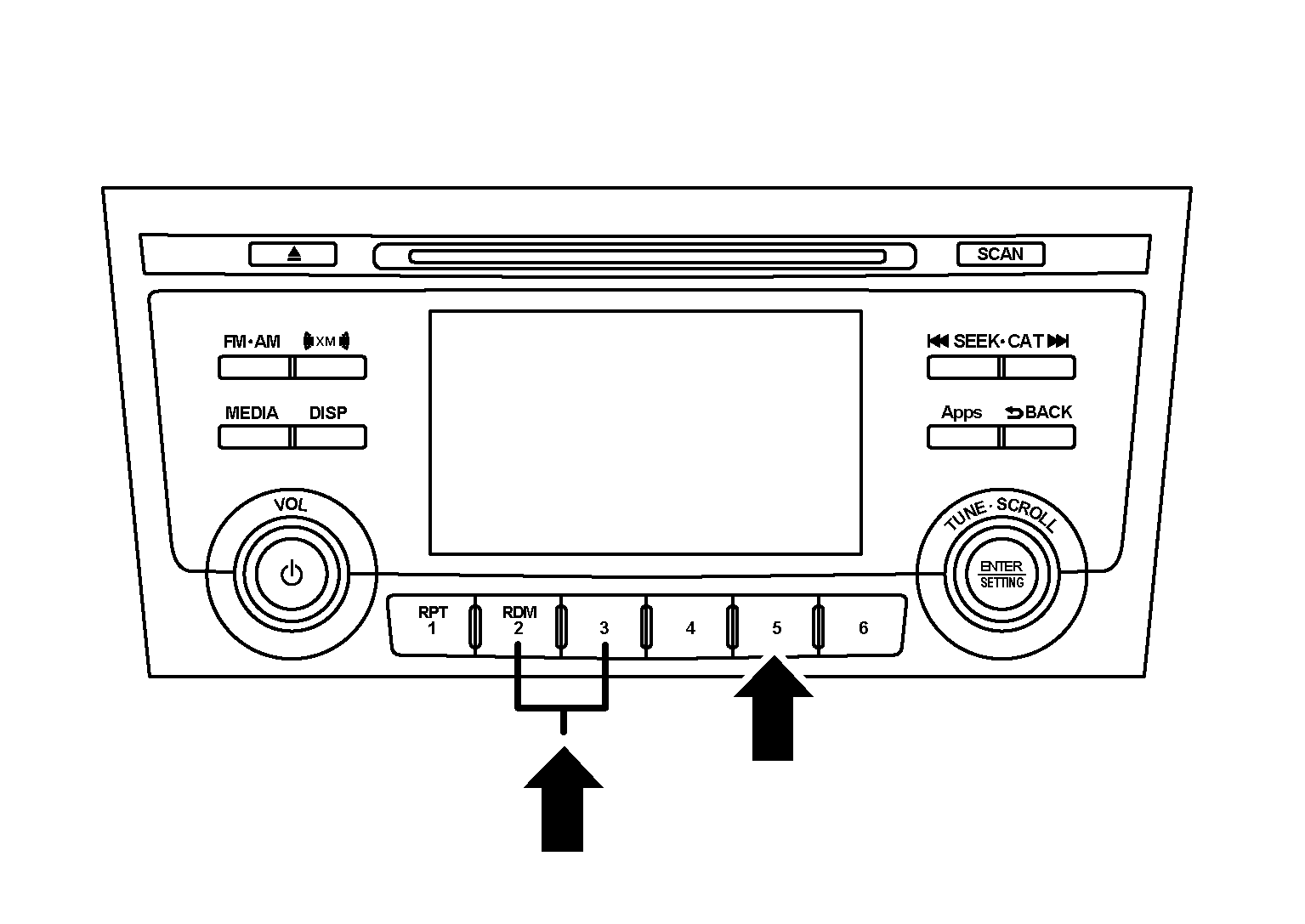

While holding preset buttons 2 and 3, press preset button 5 three times.

Courtesy of NISSAN NORTH AMERICA, INC.

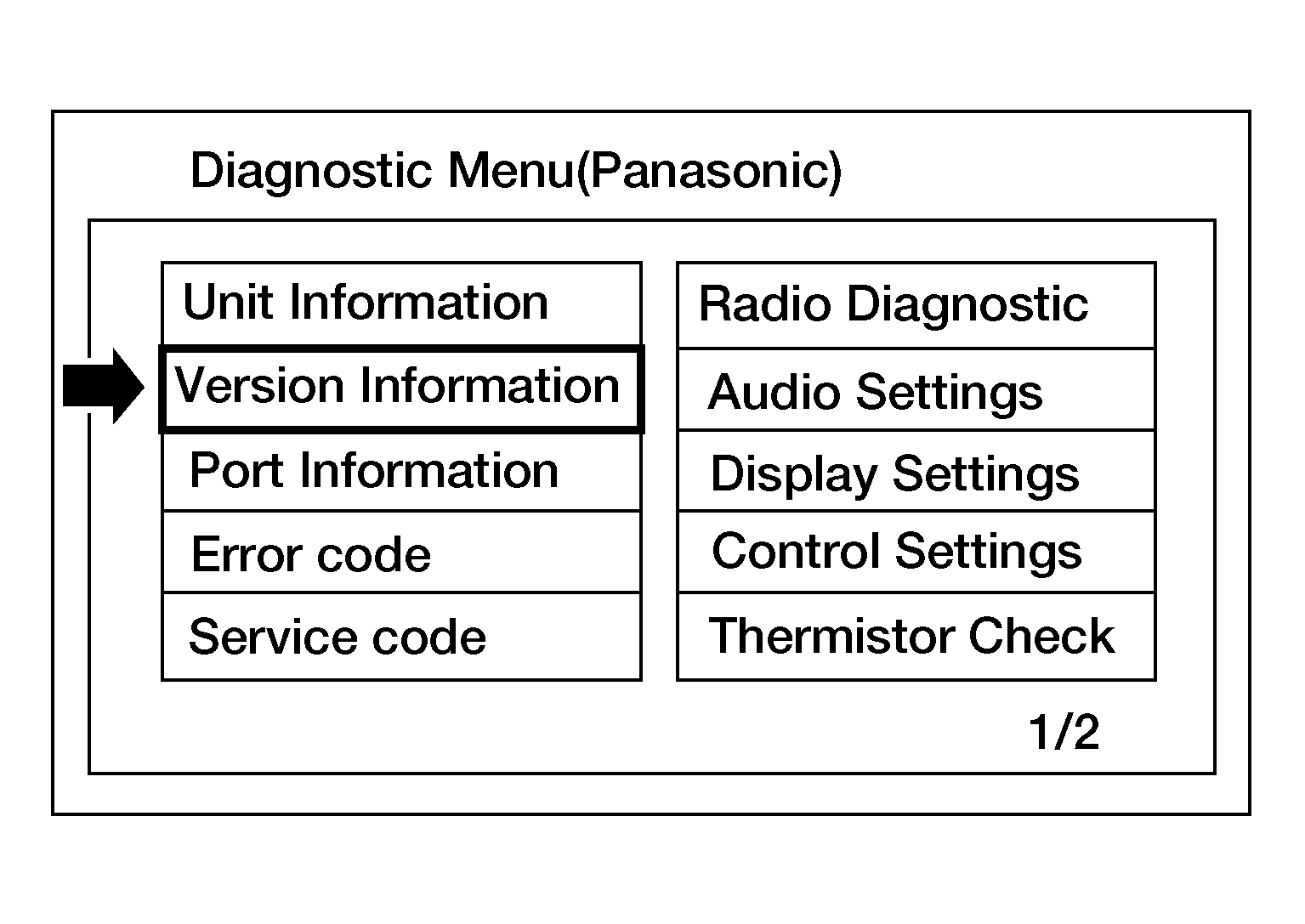

Select Version Information from the Diagnostic Menu.

Courtesy of NISSAN NORTH AMERICA, INC.

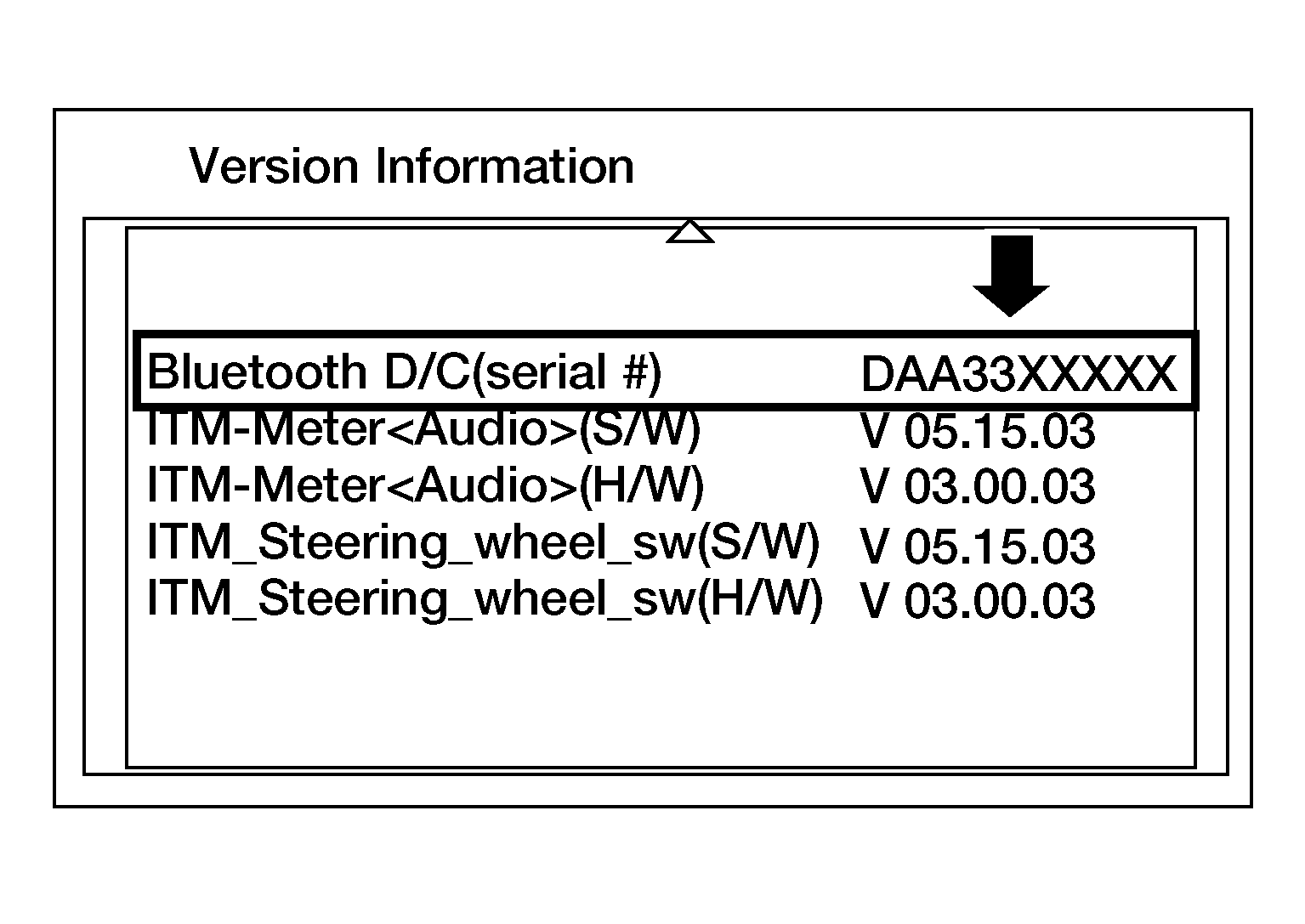

Scroll through the menu pages to Bluetooth D/C(serial #) and record the number displayed.

Courtesy of NISSAN NORTH AMERICA, INC.

GO TO 2.

REGISTER REPLACEMENT AUDIO UNIT
Register the replacement audio unit by contacting NISSAN Owner Services. Refer to TSB.

GO TO 3.
OPERATION CHECK
Verify that the audio unit "APPS" function operates normally.

Work End.
